Maintenance
2031504-159D MAC™ 800 4-13

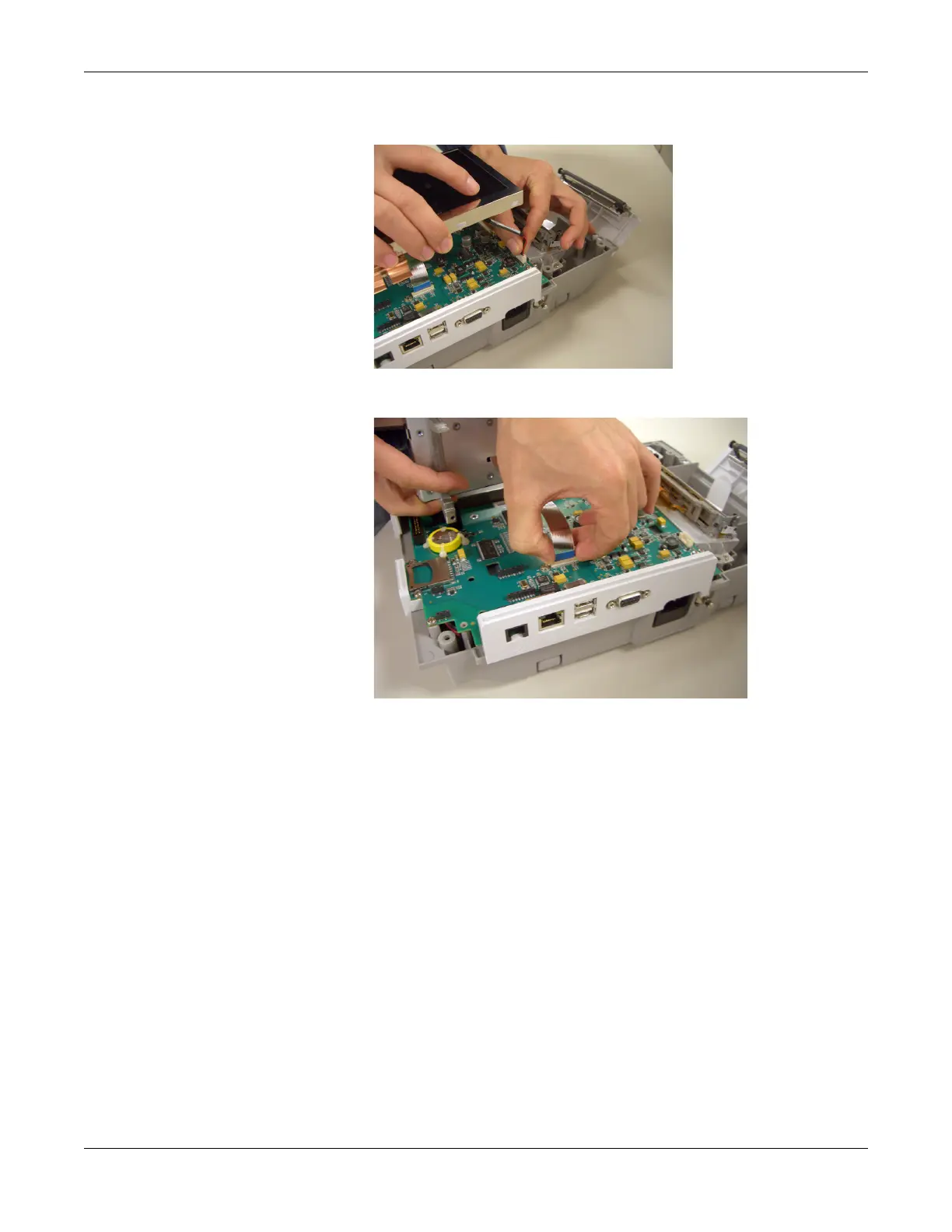

6. Disconnect the inverter cable from the mainboard.
7. Disconnect the LCD cable from the mainboard.
8. Lift the LCD ASSY out of the BOTTOM ASSY.
9. Reassemble a new LCD ASSY by reversing the steps for removal.
10. Perform the applicable checkout procedures.
Refer to “Functional Checkout” on page 4-24.
Replacing the Printer Assembly
Removing the Printer Assembly
1. Disconnect the system from AC power.
2. Remove the battery assembly as described in “Replacing the Battery
Assembly” on page 4-7.
3. Remove the top cover assembly as described in “Replacing the Top Cover
Assembly” on page 4-9.
4. Remove the LCD Assembly as described in “Replacing the LCD Assembly”
on page 4-12.
