4-24 MAC™ 800 2031504-159D
Maintenance

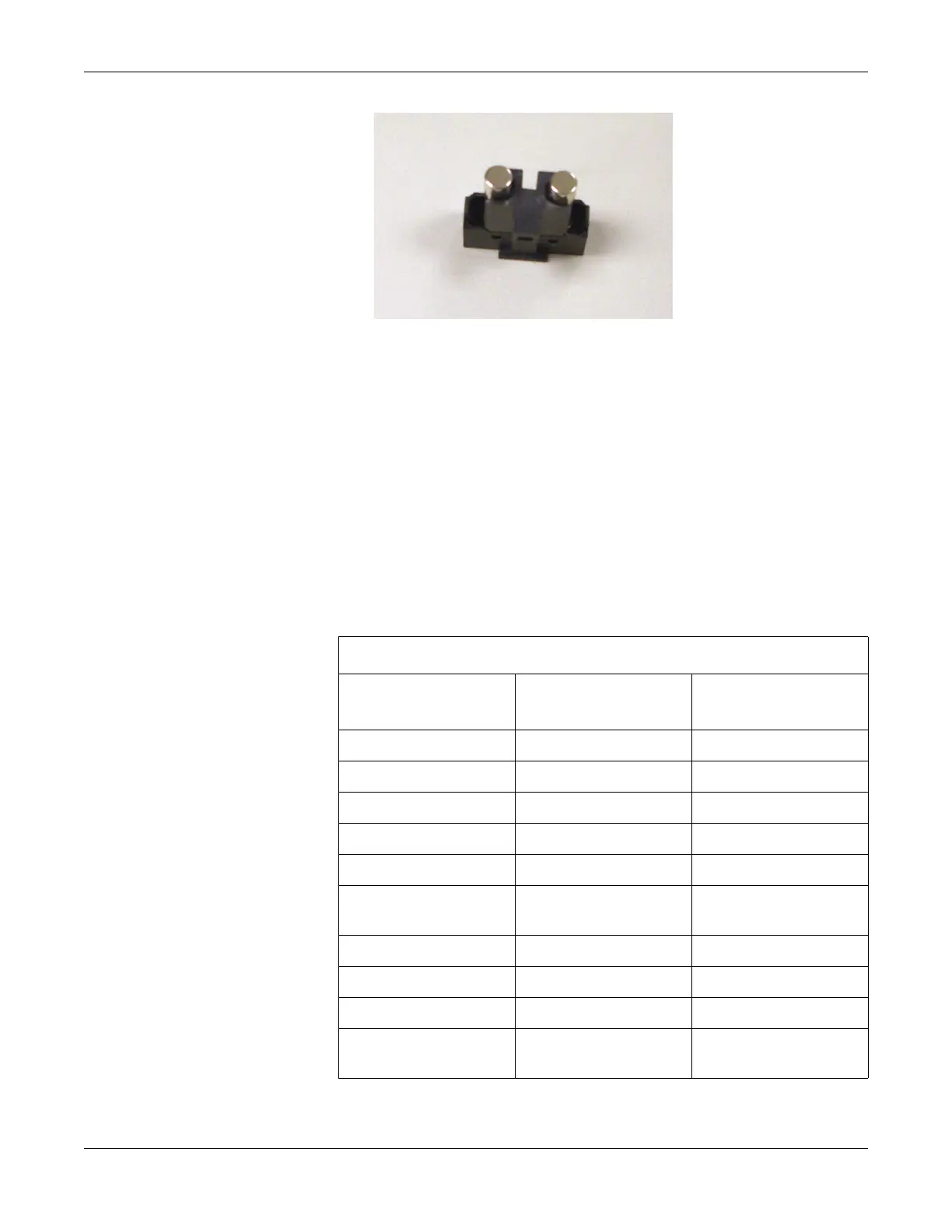

4. Reassemble the fuse holder into AC inlet.
Functional Checkout
The checkout procedures apply to all MAC 800 systems.
NOTE
The FRU checkout procedure for any listed FRU also applies to its
internal PCBs and components.
Perform the applicable product or product configuration dependant
procedures when an asterisk (*) is listed.
FRU replacement procedures are contained within this chapter of
the manual.
Basic System FRU Repairs
FRU Description Visual Inspection
Functional Checkout
Procedures
Patient Cable 1, 2, 7 1, 2, 3
Keypad Assembly 3, 6, 7 1, 2, 3, 7
Top Cover Assembly 6, 7 1, 2, 3, 14
LCD Assembly 3, 6, 7 1, 2, 3, 6
Printer Assembly 6, 7 1, 2, 3, 8
Mainboard Assembly 6, 7 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,
11, 12, 13
Power Supply Assembly 6, 7 1, 2, 3
Bottom Cover Assembly 6, 7 1, 2, 3
Battery Assembly 5 1, 2, 3, 11
Real-time Clock (RTC) Refer to the Mainboard
Assembly
Refer to the Mainboard
Assembly
