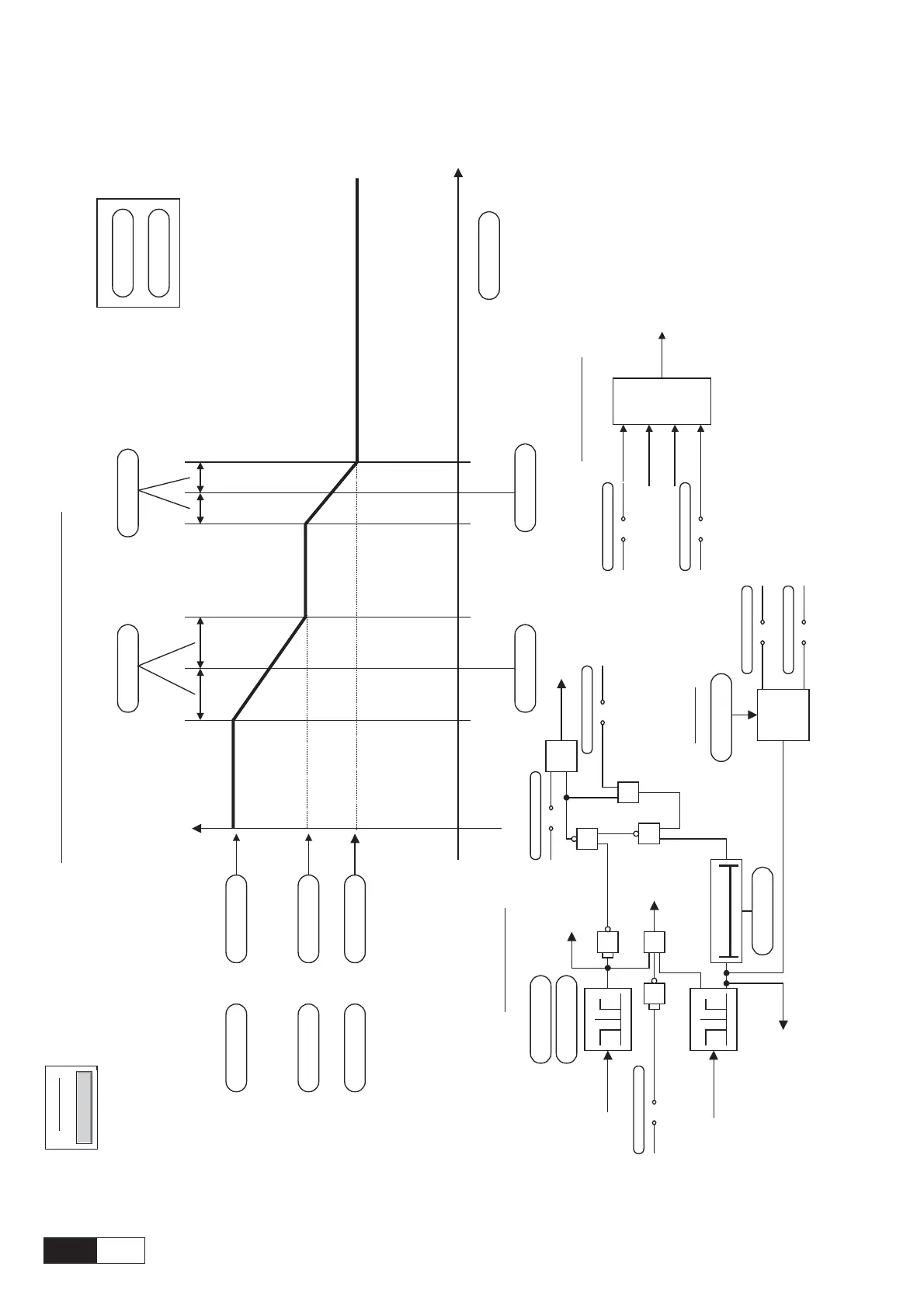

Speed adaptiveand Speedzero logic
AVy_Sreg
Back tooverview
NAVIGATION
Speedzero logic
AntiDrift
SpeedAdap function
0
t
&
&
&
>=
> =
&
>=
Lock speedI
Lock speedI
Ref0level
Speedzero
AntiDrift
Speed
Ramp ref/Speed ref
&
From pos A
From pos B
To pos A
(Lock sensorless)
To pos B
(Lock sensorless)
Inibit field rotation in
Flux model
(for Sensorless mode)
Lock Sensorless
T
T
T
T T
T T
Adap P gain1
10 %
Adap P gain2
10 %
Adap P gain3
10 %
Adap I gain1
1%
Adap I gain2
1%
Adap I gain3
1%
Adap speed 1
20.3%
Adap speed 2
40.7 %
Adap joint 1
6.1%
Adap joint 2
6.1%
Adap reference
1000 rpm
Sel. adap type
Speed
Zero pos gain
10 %
Spd=0Pgain
10 %
Ref 0 level
10 rpm
Speed zero delay
100 ms
Enable spd=0 I
Enable spd=0P
Enable spd=0R
Loc
kzero pos
Enable zero pos
Enable lck sls Enable spd=0P
Enable spd adap
Disabled
File name:AVy_Adp_spd.vsd
