gefran SIEIDrive AVy Series User Manual

Ch.7115

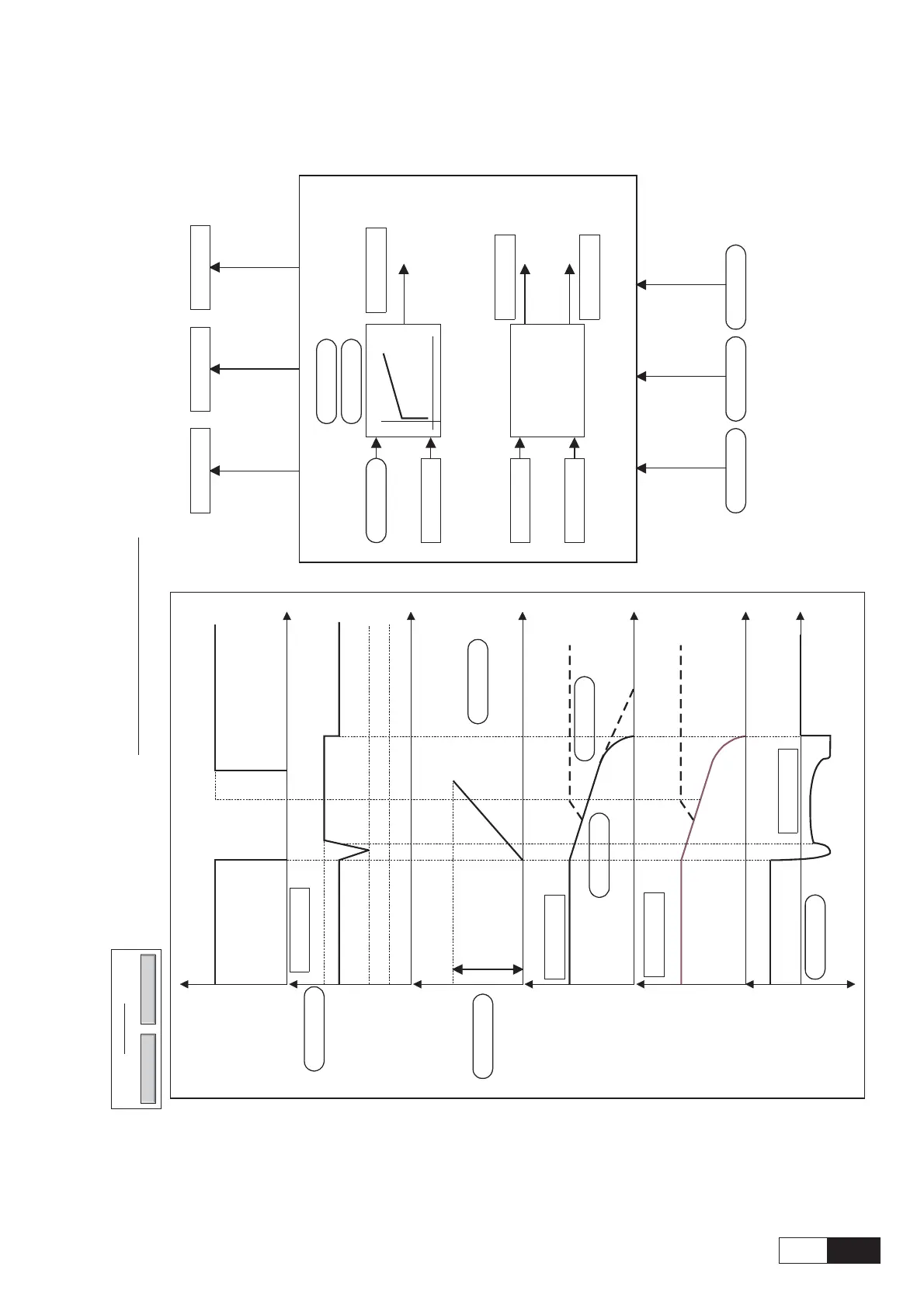

——— Block diagram ———
Power loss stop control
AC Mains voltage
100 %
100 %
DC link voltage
PLTimer
Speed ref
Actual speed
AVy_Ovw
Overview
NAVIGATION
AVy_Funct
Go to functions
Torque current
+100 %
-100 %
Power loss detection
UV leveldetection
PI regulator
time
Speed ratio
calculator
To Analog input set
as "Speed ratio" of
Next Drive
Dc link voltage
PL stop vdc ref
646 V
Actual spd (d)
PL time-out
10 s
PL stop dec
100 rpm/s
PL stop acc
100 rpm/s
Speed ref (d)
PL stop t limit
100 %
PL active limit
PL time-out ack
Not acknoledged
Dc link voltage
PL stop I gain
0.3%
PL stop P gain
5%
PL active limitPL stop vdc ref
646 V
Actual spd (d)
PL next factor
Speed ref (d)
PL next active
PL stop enable
Disabled
PL mains status
Not ok
PL t
ime-out ack
Not acknoledged
PL stop active PL next active PL time-out sig
File name:AVy_pwrlss_ctrl.vsd
