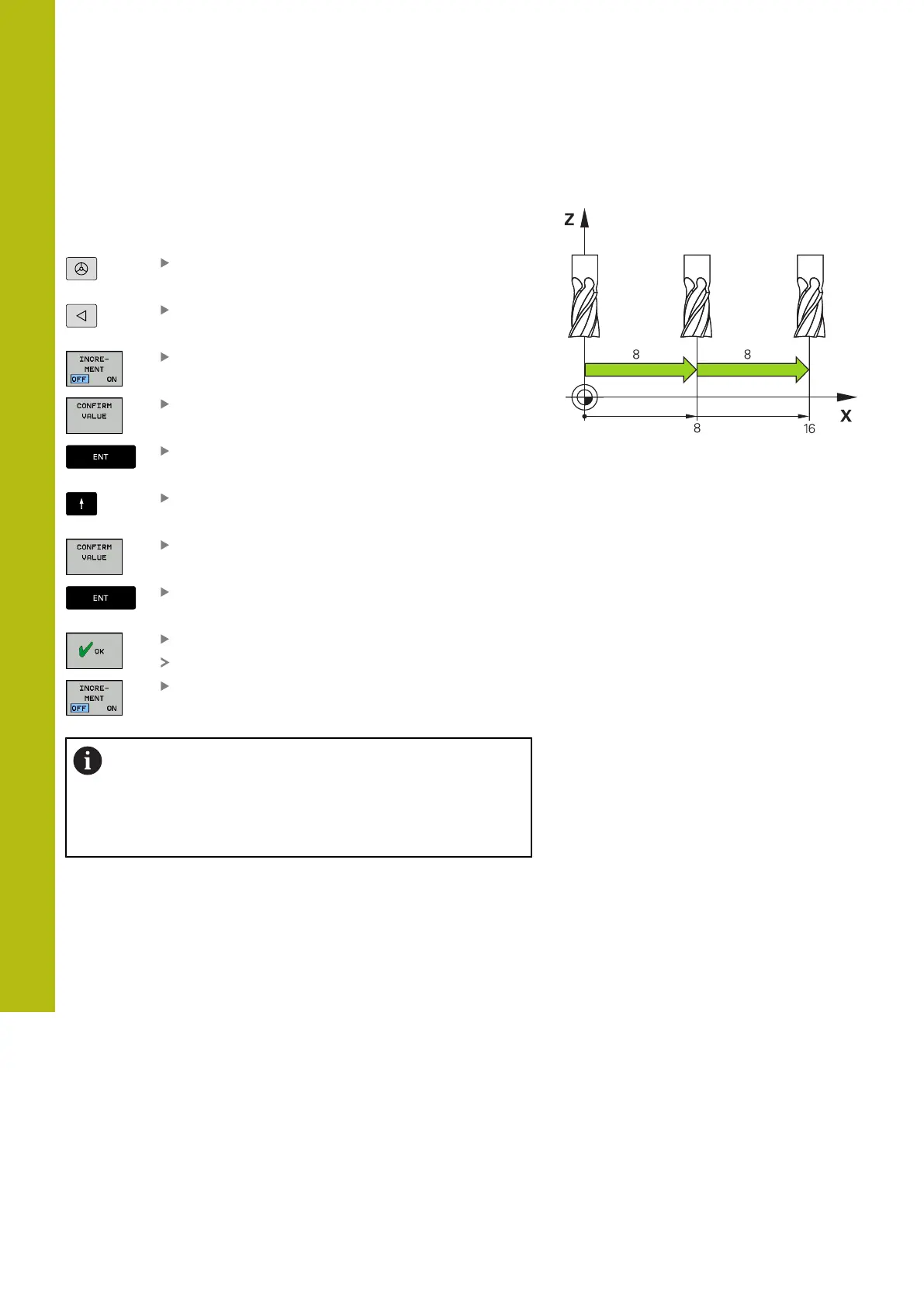

Incremental jog positioning
With incremental jog positioning you can move a machine axis by a
preset distance.
Operating mode: Press the Manual operation or
Electronic handwheel key
Shift the soft-key row
Select incremental jog positioning: Switch the
INCREMENT soft key to ON
Enter the infeed of the linear axes and confirm
with the CONFIRM VALUE soft key
Alternatively, confirm with the ENT key
Use the arrow keys to position the cursor on the
rotary axis
Enter the infeed of the rotary axes and confirm
with the CONFIRM VALUE soft key
Alternatively, confirm with the ENT key
Confirm with the OK soft key
The increment is active.
Deactivate incremental jog positioning: Switch
the INCREMENT soft key to OFF
If you are in the Jog increment menu, you can switch
off incremental jog positioning with the SWITCH OFF
soft key.
The input range for the infeed is from 0.001 mm to
10 mm.
