2.3 Modes of operation
Manual Operation and El. Handwheel
The Manual operation mode is required for setting up the machine
tool. In this mode of operation, you can position the machine axes
manually or by increments, set the presets and tilt the working
plane.
The Electronic handwheel mode of operation allows you to move
the machine axes manually with the HR electronic handwheel.

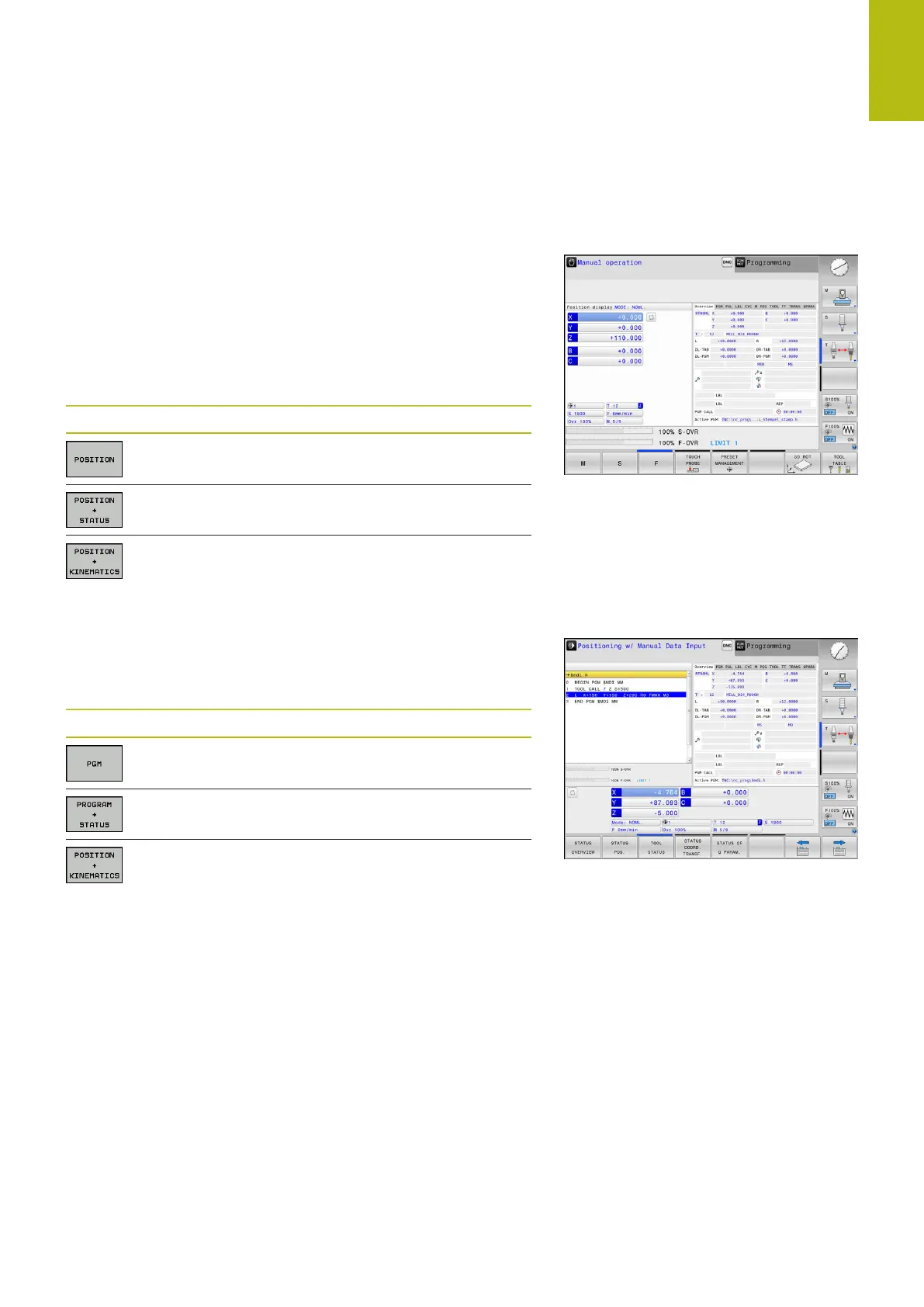

Soft keys for the screen layout (select as described above)
Soft key Window
Positions
Left: positions, right: status display
Left: positions, right: collision object
Positioning with Manual Data Input
This mode of operation is used for programming simple traversing
movements, such as for face milling or pre-positioning.
Soft keys for selecting the screen layout
Soft key Window
Program
Left: program, right: status display
Left: program, right: collision object
