Operating the CAD viewer
The control also supports touch operation for working with the
CAD-Viewer. You have various gestures available depending on the
operating mode.
To be able to use all applications, first use the icon to select the
desired function:
Icon Function
Default setting
Add
Works in the selection mode like a
pressed Shift key
Remove
Works in the selection mode like a
pressed CTRL key
Layer setting mode and specify the workpiece preset

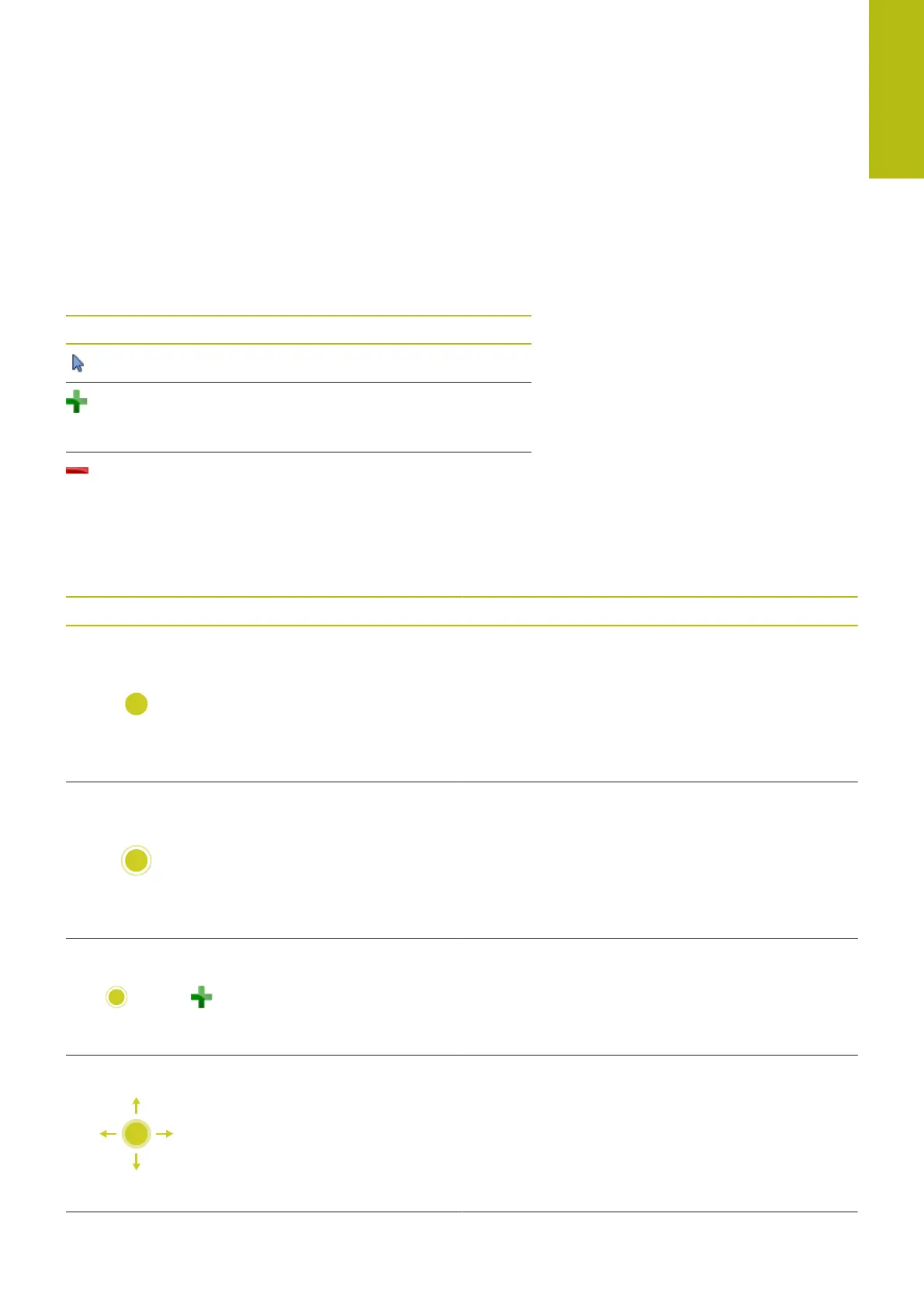

The control supports the following gestures:
Symbol Gesture Function
Tap on an element Show element information
Specify the workpiece preset
Double-tap on the background Set the graphic or 3-D model to its original size
Activate Add and double-tap on
the background
Reset the graphic or 3-D model to its original size and
angle
Drag Rotate the graphic or 3-D model (only in the Layer
Setting mode)
