HEIDENHAIN TNC 640 User Manual

Programming Q Parameters | Part families—Q parameters in place of numerical values
10
380
HEIDENHAIN | TNC 640 | Conversational Programming User's Manual | 10/2017
10.2 Part families—Q parameters in place of
numerical values
Application
The Q parameter function FN 0: ASSIGN assigns numerical values
to Q parameters. This enables you to use variables in the program
instead of fixed numerical values.
Example
15 FN O: Q10=25
Assign
...
Q10 is assigned the value 25
25 L X +Q10
Means L X +25
You need write only one program for a whole family of parts,
entering the characteristic dimensions as Q parameters.
To program a particular part, you then assign the appropriate values
to the individual Q parameters.

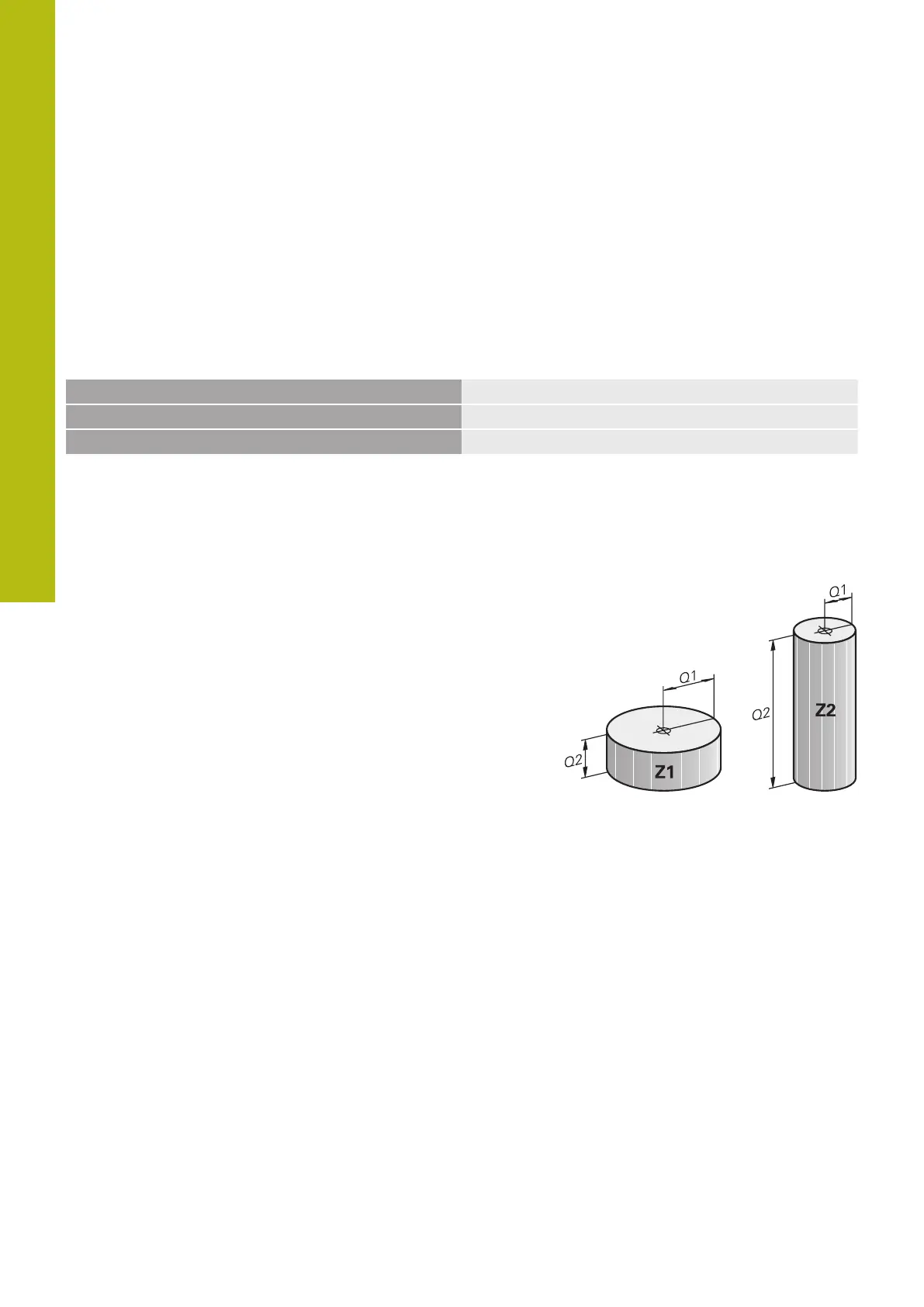

Example: Cylinder with Q parameters
Cylinder radius: R = Q1
Cylinder height: H = Q2
Cylinder Z1: Q1 = +30
Q2 = +10
Cylinder Z2: Q1 = +10
Q2 = +50

HEIDENHAIN TNC 640 Specifications

General

Control Type	CNC
Axes	Up to 18 axes
Interfaces	Ethernet, USB, RS-232
Spindle Control	Yes
PLC	Integrated
Storage	SSD
Programming Languages	DIN/ISO
Safety Features	safety functions according to EN ISO 13849-1
Dimensions	Varies based on configuration
Weight	Varies based on configuration
Operating System	Windows
