HEIDENHAIN TNC 640 User Manual

Data Transfer from CAD Files | Screen layout of the CAD viewer
8
334
HEIDENHAIN | TNC 640 | Conversational Programming User's Manual | 10/2017
8.1 Screen layout of the CAD viewer
Fundamentals of the CAD viewer
Screen display

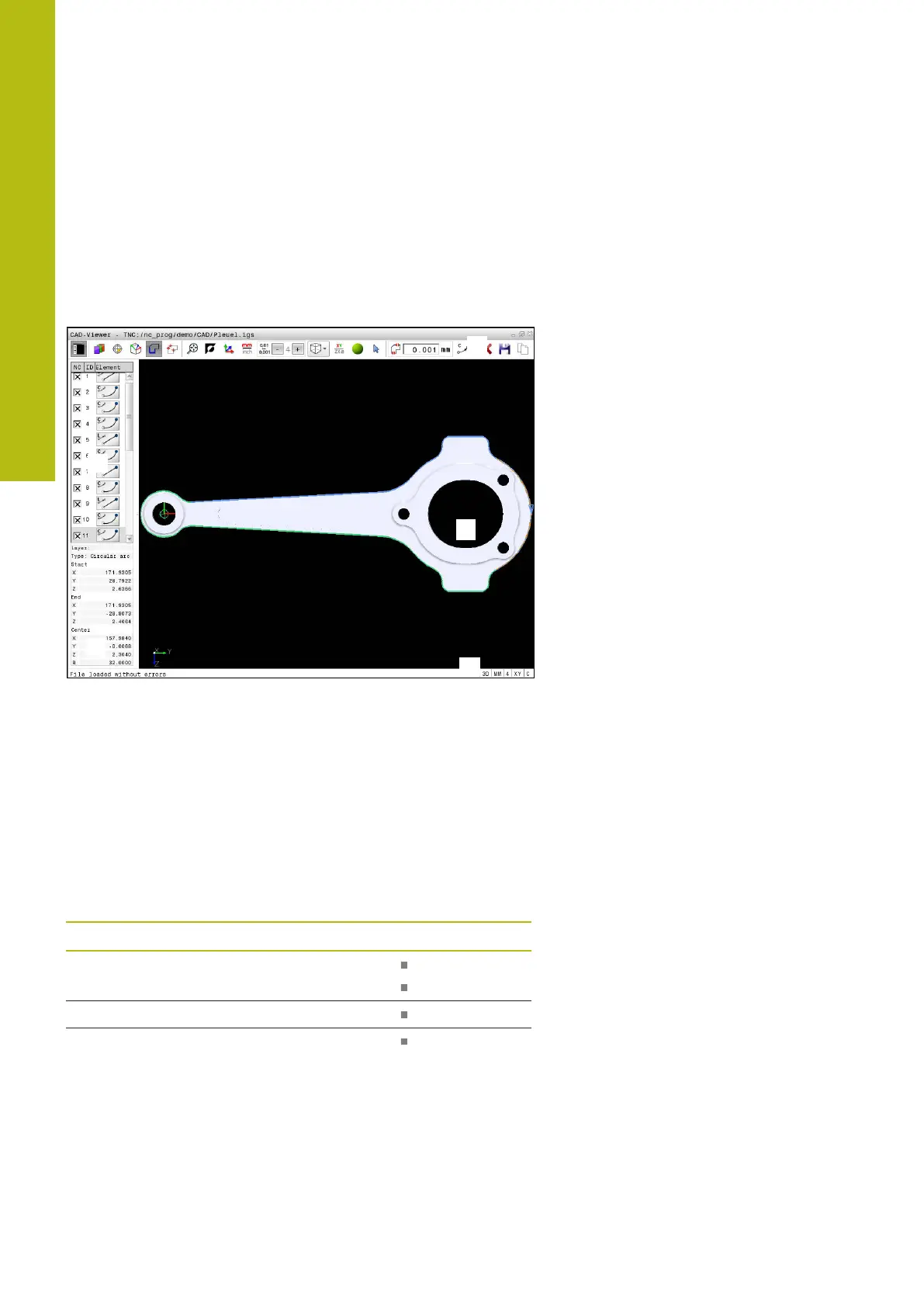

When you open the CAD-Viewer, the following screen layout is
displayed:
1
2
5
4
3
1 Menu bar
2 Graphics window
3 List View window
4 Window element information
5 Status bar
File formats
The CAD-Viewer enables you to open standardized CAD data
formats directly on the control.
The control displays the following file formats:
File Type Format
Step .STP and .STEP AP 203
AP 214
IGES .IGS and .IGES Version 5.3
DXF .DXF R10 to 2015

HEIDENHAIN TNC 640 Specifications

General

Control Type	CNC
Axes	Up to 18 axes
Interfaces	Ethernet, USB, RS-232
Spindle Control	Yes
PLC	Integrated
Storage	SSD
Programming Languages	DIN/ISO
Safety Features	safety functions according to EN ISO 13849-1
Dimensions	Varies based on configuration
Weight	Varies based on configuration
Operating System	Windows
