Overview: Types of paths for contour approach and
departure
The functions for contour approach APPR and departure DEP are
activated with the APPR/DEP key. You can then select the following

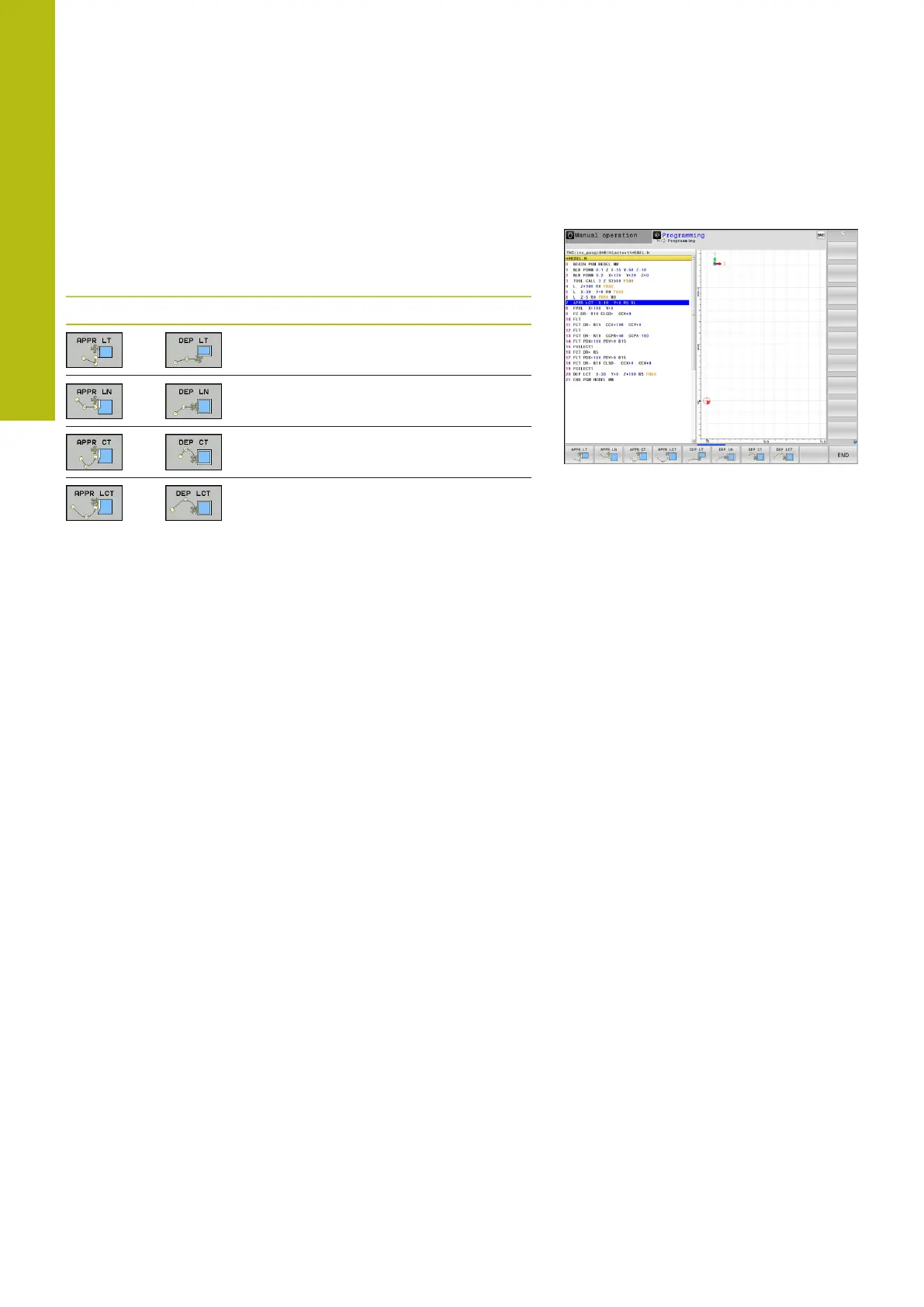

path forms with the corresponding soft keys:
Approach Departure Function
Straight line with tangential connec-
tion
Straight line perpendicular to a
contour point
Circular arc with tangential connec-
tion
Circular arc with tangential connec-
tion to the contour. Approach and
departure to an auxiliary point outside
the contour on a tangentially connect-
ing line
Approaching and departing a helix
The tool approaches and departs a helix on its extension by moving
in a circular arc that connects tangentially to the contour. You
program helical approach and departure with the APPR CT and DEP
CT functions.
