HEIDENHAIN TNC 640 User Manual

Programming Contours | Path contours  Cartesian coordinates
7
HEIDENHAIN | TNC 640 | Conversational Programming User's Manual | 10/2017
309

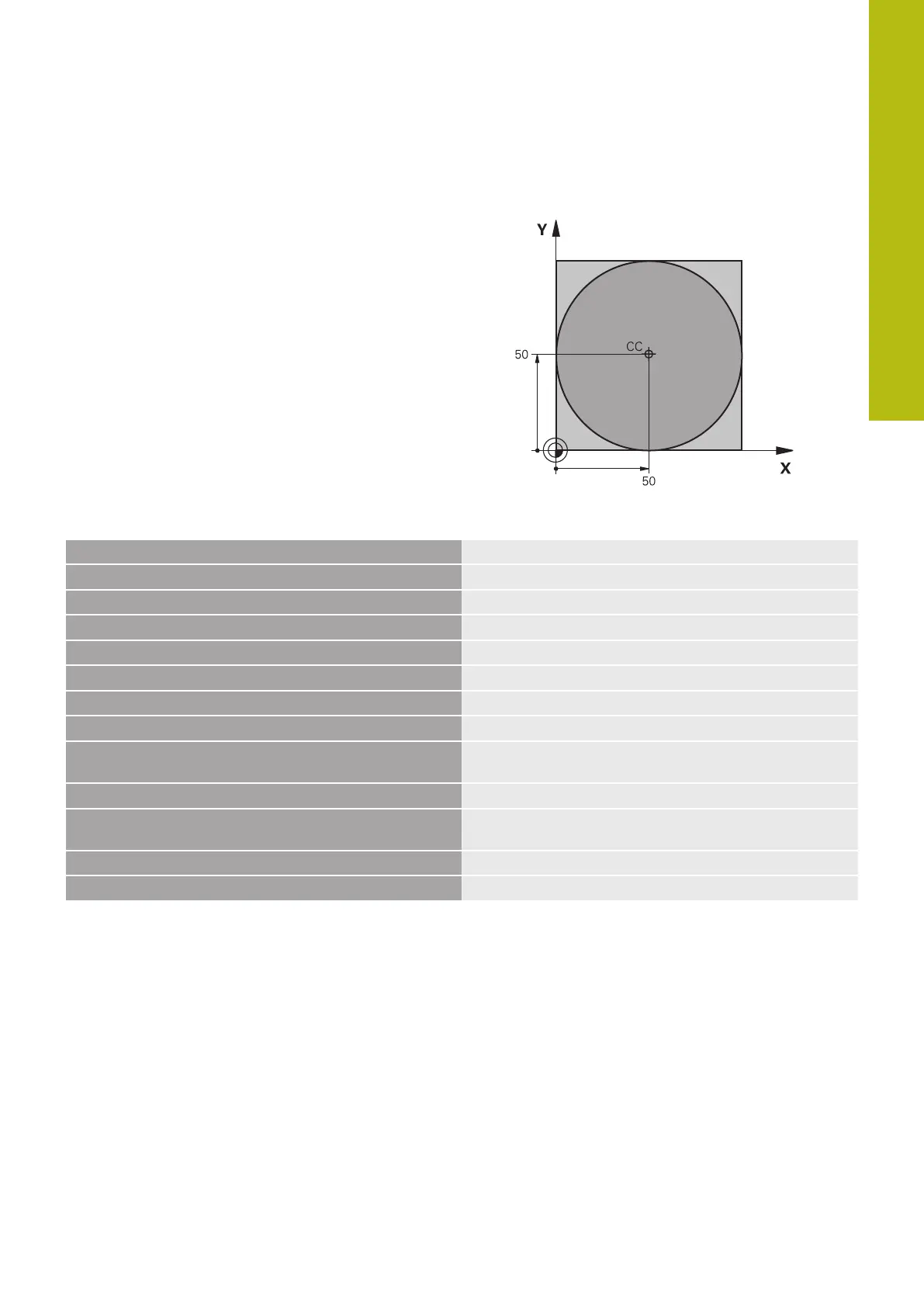

Example: Full circle with Cartesian coordinates
0 BEGIN PGM C-CC MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
Definition of workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S3150
Tool call
4 CC X+50 Y+50
Define the circle center
5 L Z+250 R0 FMAX
Retract the tool
6 L X-40 Y+50 R0 FMAX
Pre-position the tool
7 L Z-5 R0 F1000 M3
Move to working depth
8 APPR LCT X+0 Y+50 R5 RL F300
Approach the starting point of the circle on a circular arc with
tangential connection
9 C X+0 DR-
Move to the circle end point (= circle starting point)
10 DEP LCT X-40 Y+50 R5 F1000
Depart the contour on a circular arc with tangential
connection
11 L Z+250 R0 FMAX M2
Retract the tool, end program
12 END PGM C-CC MM

HEIDENHAIN TNC 640 Specifications

General

Control Type	CNC
Axes	Up to 18 axes
Interfaces	Ethernet, USB, RS-232
Spindle Control	Yes
PLC	Integrated
Storage	SSD
Programming Languages	DIN/ISO
Safety Features	safety functions according to EN ISO 13849-1
Dimensions	Varies based on configuration
Weight	Varies based on configuration
Operating System	Windows
