DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
115
5. Click to exit.
Enabling HDD Sleeping mode
Enabling HDD sleeping mode will allow the HDD enter low power cost work mode when no recording
work is detected.
To enable HDD sleeping mode:
1. Enter the HDD menu by going to Menu > System Configuration > HDD.
2. Select the Record Information tab, as shown in Figure 125.
3. Check the Enable HDD Sleeping checkbox.
4. Click the Apply button.
5. Click to exit.
Managing eSATA
When there is an external eSATA device connected to DVR, you can configure eSATA for the ues of
Record/Capture or Export. To manage eSATA:
1. Enter the HDD menu by going to Menu > System Configuration > HDD.
2. Select the Record Information tab, as shown in Figure 129.
3. Select the eSATA Usage to Record/Capture or Export from the dropdown list.
Export: Use the eSATA for backup.
Record/Capture: Use the eSATA for record/capture.
4. Click the Apply button to save the settings.
Configuring Quota Mode
Each camera can be configured with allocated quota for record or picture capture.
To configure quota mode:
1. Enter the quota mode menu by going to Menu > System Configuration > HDD.
2. Select the Storage Mode tab, as shown in Figure 130.

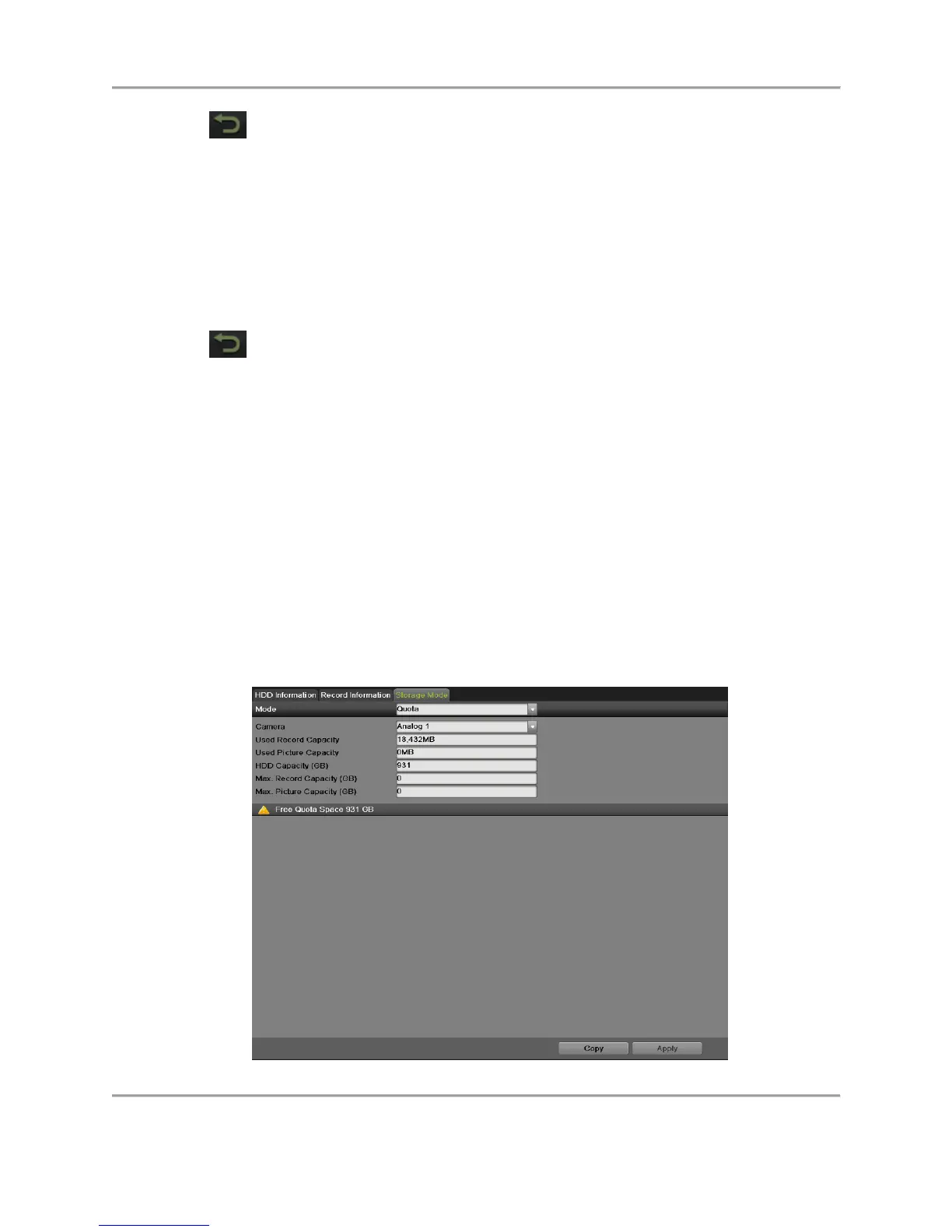

Figure 130 Quota Mode Settings Menu
