DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
82
2) Select the Arming Schedule tab. Choose one day in a week and set an arming schedule. If the
schedule can also be applied to other days, click Copy. Click Apply to save the settings.
3) Select the Handing tab which is same as Figure 80 to set other actions. Click Apply to save
the settings.
4) Select the PTZ Linking tab, as shown in Figure 84, to set the PTZ actions (only if a PTZ
camera is configured on the DVR). Only one PTZ action can be selected per alarm input.

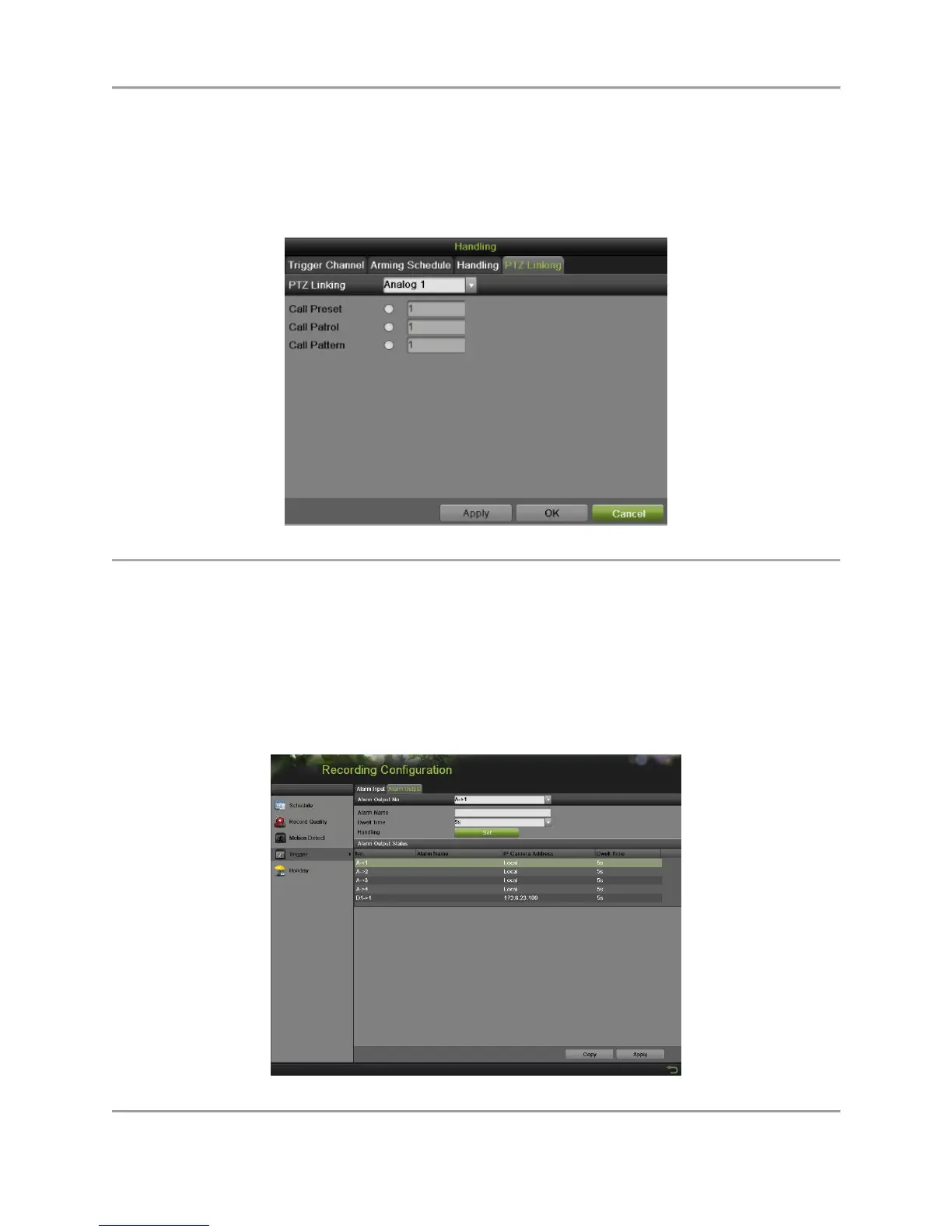

Figure 84 PTZ Linking Settings Menu
8. If the same settings can be applied to other alarm inputs, click the Copy button to copy the
settings to others.
9. Click Apply to save the settings.
10. You can check the alarm input status in the Alarm Input Status list on the Alarm Input Interface.
Configuring Alarm Outputs
Trigger an alarm output when an alarm is triggered. To configure alarm output:
1. Enter the Trigger menu by going to Menu > Recording Configuration > Trigger.
2. Select the Alarm Output tab, as shown in Figure 85.
Figure 85 Alarm Output Settings Menu
