DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
96
Configuring Video Loss
Video loss detection can be enabled on any of the channels on your DVR to detect the loss of video.
To configure video loss detection:
1. Enter the Video Loss menu, shown in Figure 100 by going to Menu > Cameras Setup > Video
Loss.

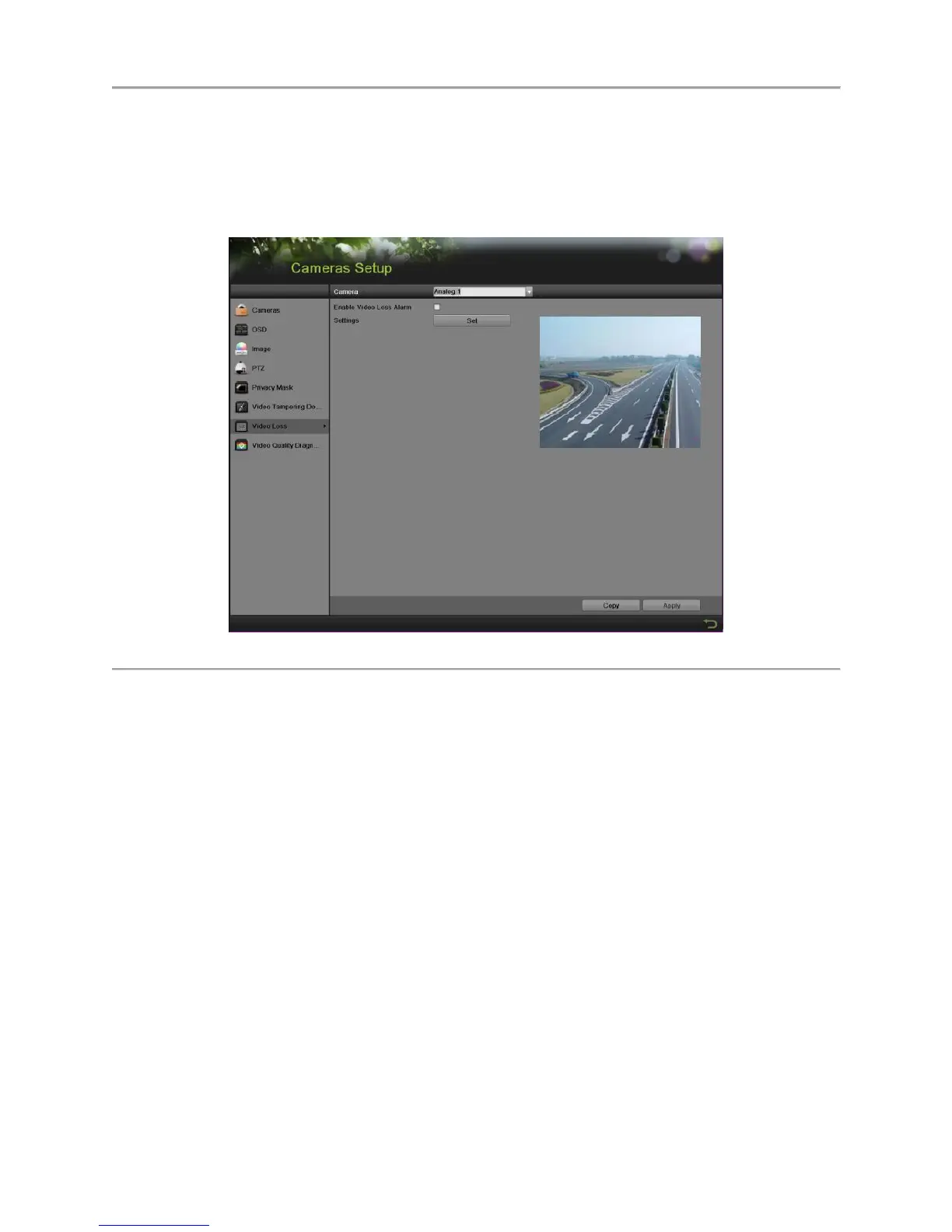

Figure 100 Video Loss Detection Menu
2. Select the camera to setup video loss detection in using the camera dropdown list.
3. Click Enable Video Loss Detection.
4. Press the Handing Set button to set up handing method.
1) Select the Arming Schedule tab to set the arming schedule. Up to 8 periods can be
configured. If the same schedule can be applied in other channel, click Copy.
2) Select the Handing tab to set the actions to take if video loss is detected. The detail
instruction of the actions, please refer to Page 79.
5. Click the Apply button to save the settings. Click OK to back to the previous menu.
6. If the same settings can be applied in other channels, click Copy to copy the same configuration
to other channels.
7. Click Apply to save the settings.
Configuring OSD Settings
On Screen Display (OSD) settings can be configured in the OSD menu. The OSD is shown in each
display in Live Feed and Playback mode.
To configure OSD settings:
1. Enter the OSD menu, shown in Figure 101 by going to Menu > Cameras Setup > OSD.
