DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
76

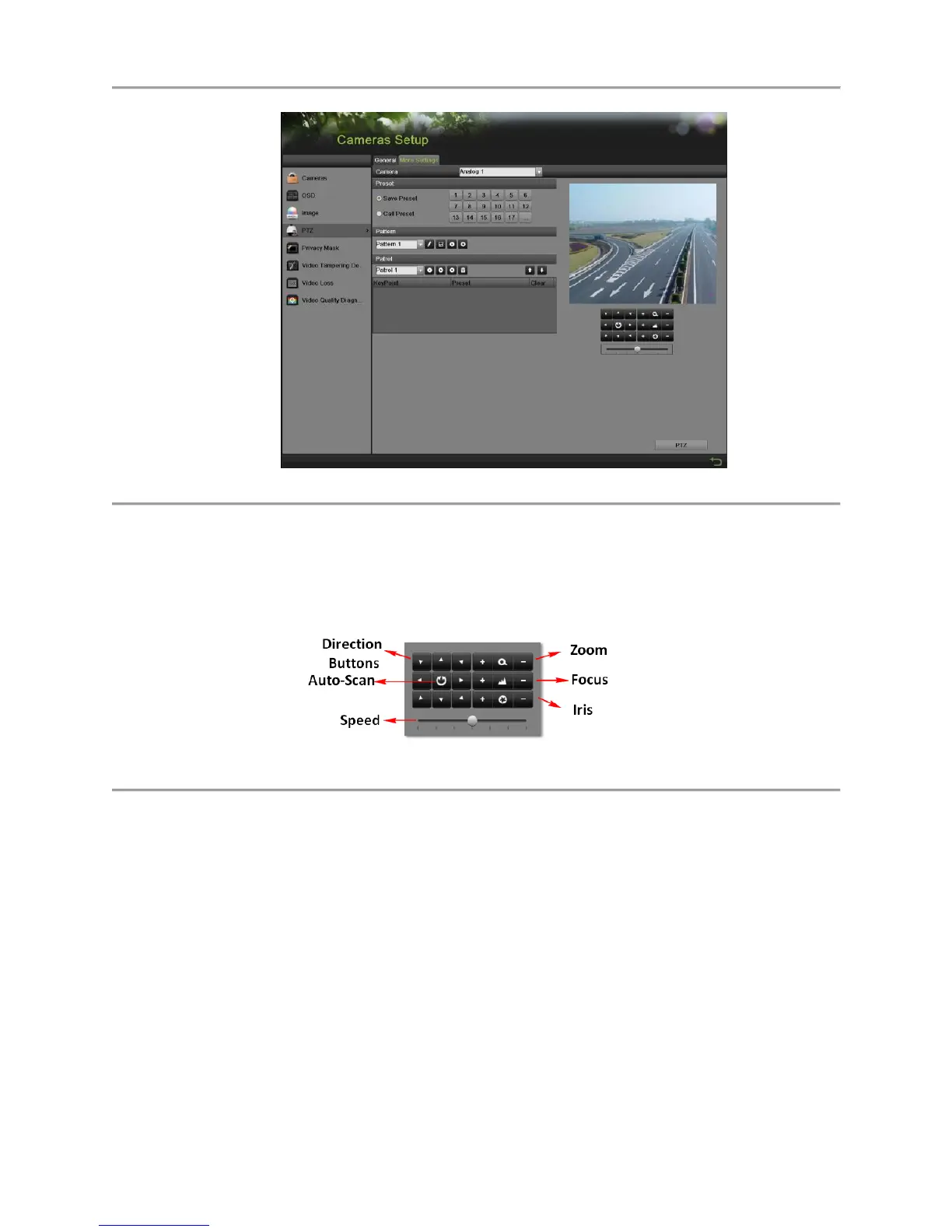

Figure 75 More Settings of PTZ Configuration
3. Select the camera to test in the Camera dropdown list.
4. Using the Directional buttons and other PTZ control buttons (Zoom +/-, Focus +/-, Iris +/-, the
speed of the PTZ movement), test the functionality of the PTZ camera. If PTZ camera and
protocol supports it, you may also click the Auto-Scan button to test its function. PTZ controls
buttons are shown in Figure 76.
Figure 76 PTZ Controls Button
5. If PTZ camera is not working properly, make sure PTZ is connected and configured with the
correct settings under the General tab.
Customizing PTZ Presets, Patterns and Patrols
Your DVR allows you to customize presets, patterns and patrols for a connected PTZ camera. A PTZ
camera must first be configured before PTZ presets, patterns and patrols can be customized (See
Configuring Basic PTZ Settings).
To customize PTZ presets:
1. Enter the PTZ menu by going to Menu > Cameras Setup > PTZ.
2. Select the More Settings tab, as shown in Figure 75.
3. Select Save Preset and move the camera to the desired position using the PTZ control buttons.
4. Double-click on a preset number. The current position of the PTZ camera will be set for the
selected preset number.
