DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
122
2. Select the Event Type you want to search. File type includes Alarm Input and Motion files.
If you select type Motion:
1) First you need to choose the cameras that you would like to include in the search. Analog
cameras are listed on the first row, preceded with the letter A. If you would like include all
analog cameras in the search, check the Analog checkbox. IP cameras are listed on the
second row, preceded with the letter D. If you would like include all IP cameras in the
search, check the IP Camera checkbox.
2) Select the start time and the end time.
3) Click the Search button.
4) A list of results with your search criteria will be shown at a pop-up box.
5) You can set the Pre-play and
6) Post-play time.
7) Select one result to see the details by clicking Details button or quick export by clicking the
Quick Export button
If you select type Alarm Input:
1) First you select one alarm input channel or you can check the Alarm Input No. box to select
all channels.
2) Select the start time and the end time.
3) Click the Search button.
4) A list of results with your search criteria will be shown at a pop-up box, and you can select
record to do proper settings.
Searching for Captured Picture
Search and view captured pictures stored in HDD.
To search for all captured pictures:
1. Enter the File Management menu by going to Menu > File Management> Picture.
2. Select channel, picture type.
3. Select start time and stop time.
4. Click Search button to enter Search Result interface.
5. Left-click to view the picture.

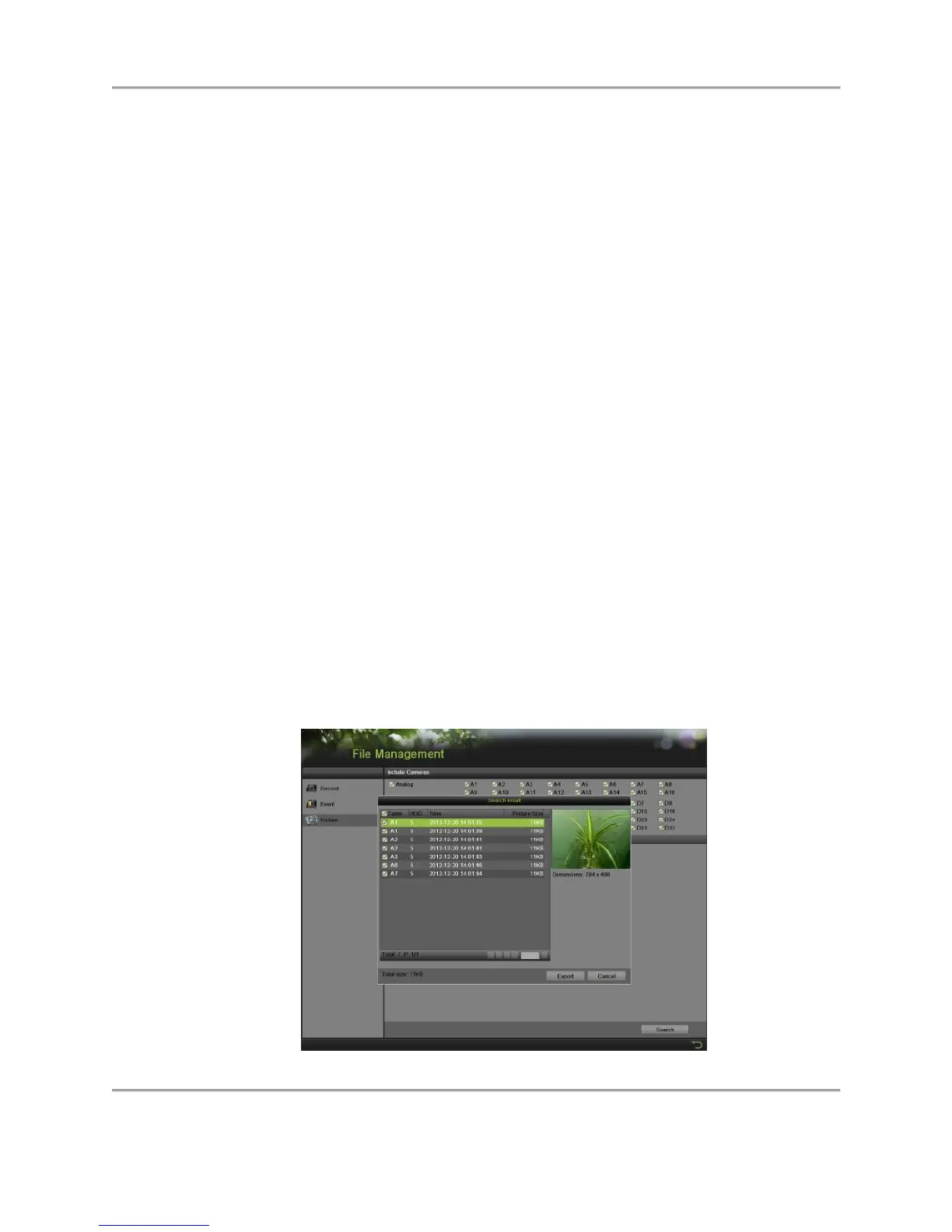

Figure 139 Picture Search
