DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
75
Configuring PTZ Cameras
Configuring Basic PTZ Settings
Settings for a PTZ camera must be configured before it can be used. Before proceeding, verify that the
PTZ and RS-485 of the DVR are connected properly.
To configure PTZ settings:
1. Enter the PTZ menu, shown in Figure 74 by going to Main Menu > Cameras Setup > PTZ.

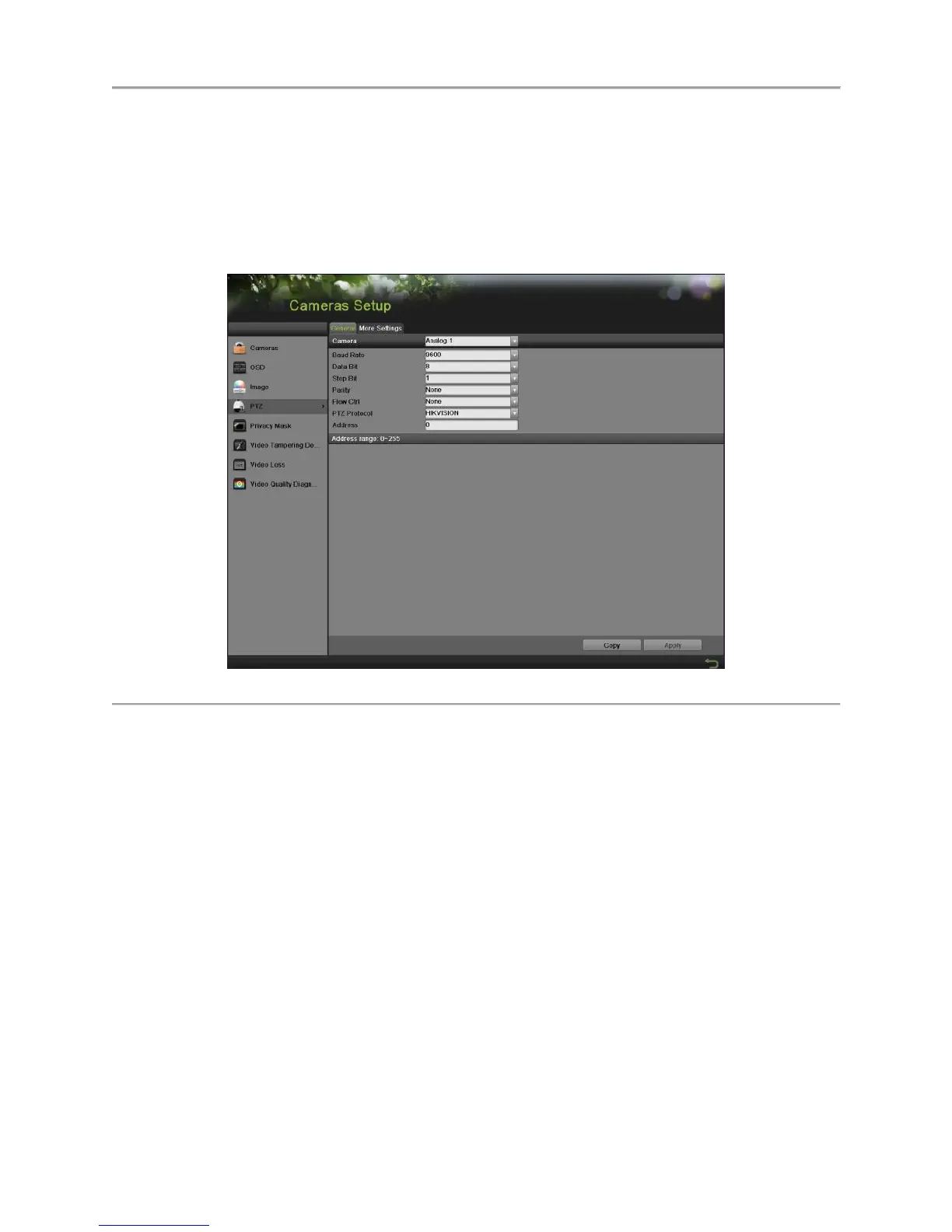

Figure 74 General Settings of PTZ Configuration
2. Select the General tab.
3. Select the camera to configure in the Camera dropdown list.
4. Configure PTZ settings, including those of Baud Rate, Data Bit, Stop Bit, Parity, Flow Ctrl, PTZ
Protocol and Address according to the parameters of the PTZ camera(s).
5. If the same configuration can be applied to other PTZ channels, click the Copy button.
6. Click the Apply button to save the settings.
To test and verify PTZ settings:
1. Enter the PTZ Configuration menu by going to Menu > Cameras Setup > PTZ.
2. Select the More Settings tab, shown in Figure 75.
