Assemble and Connect the Patient Circuit
CONNECT THE VOLARA™ PATIENT CIRCUIT
WARNING:
Warning—The patient circuit is for single patient use only. Always use a
new patient circuit when using the system on a new patient. Failure to do
so could cause cross contamination.
CAUTION:

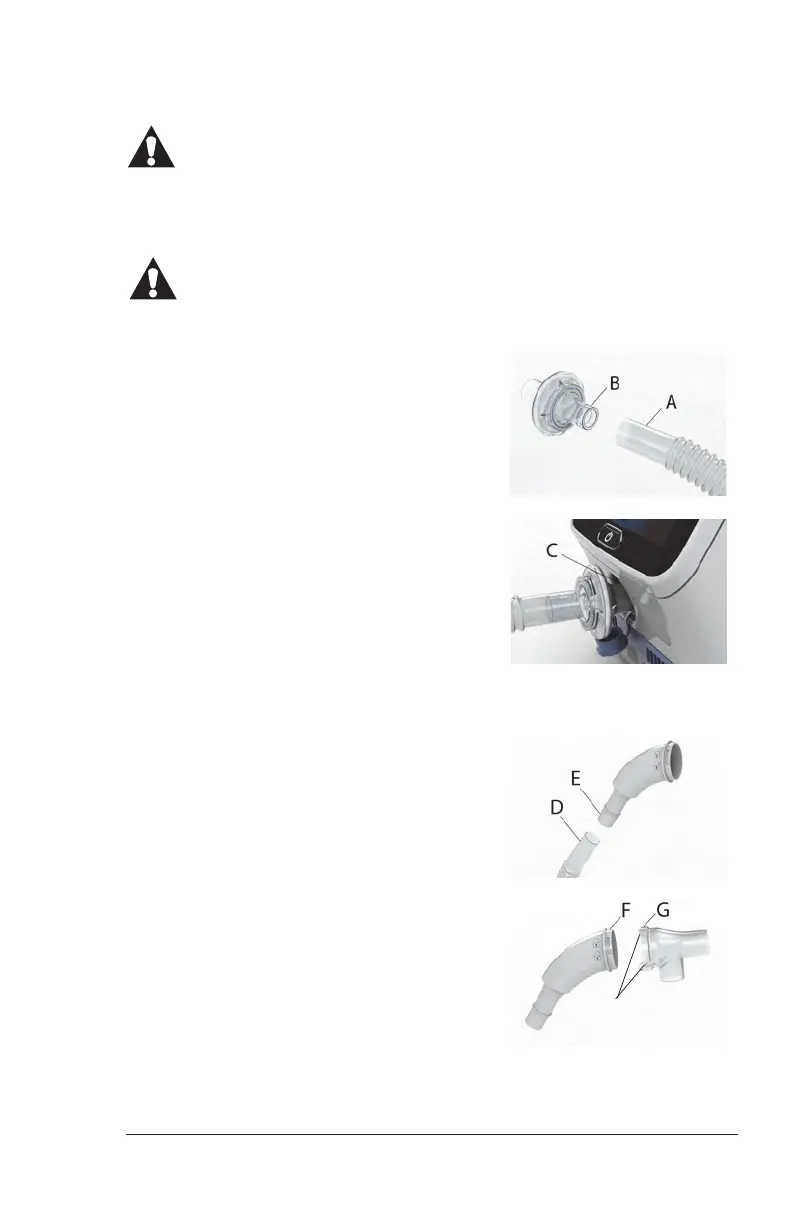

1. Attach one end of the breathing hose
(A) to the smaller end of the bio-filter
(B).
2. Align the larger end of the bio-filter (C)
with the therapy port on the control
unit.
3. Gently turn the bio-filter (C) to secure it
to the therapy port.
NOTE:
Make sure the frosted part of the bio-
filter covers the therapy port entirely.
4. Connect the other end of the
breathing hose (D) to the inlet port of
the handset (E).
5. Connect the other side of the handset
(F) to the front of the clear spontaneous
breathing adapter (G).
Expiratory ports
