20 Volara™ System, Model PVL1 User Manual (196286 REV C)
Assemble and Connect the Patient Circuit
Connect the Volara™ Patient Circuit for In-line Ventilation Therapy
WARNING:
To help prevent injury and/or equipment damage, obey these warnings:
• Warning—The patient circuit is for single patient use only.
Always use a new circuit when using the system on a new
patient. Failure to do so could cause cross contamination.
• Warning—Only persons trained to use the Volara™ System and
ventilators should provide the therapy to ventilated patients.

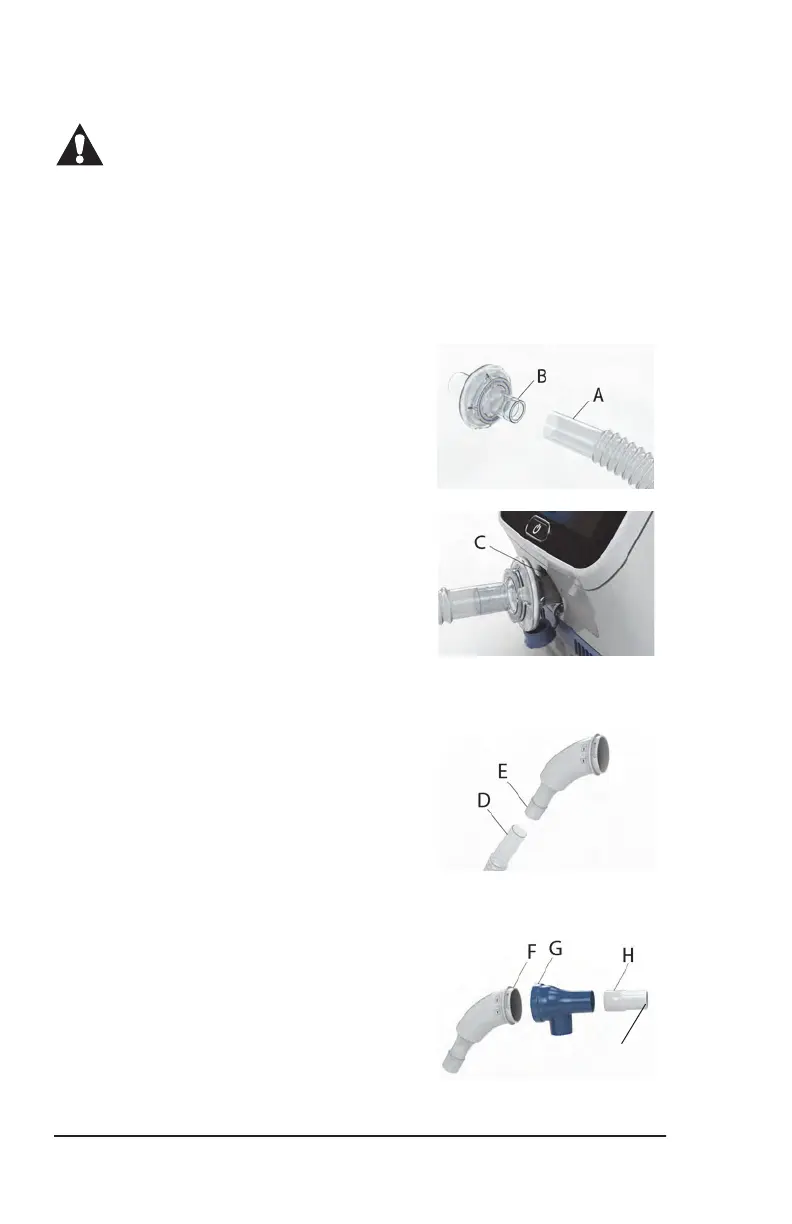

1. Attach one end of the breathing hose
(A) to the smaller end of the bio-filter
(B).
2. Align the larger end of the bio-filter (C)
with the therapy port on the control
unit.
3. Gently turn the bio-filter (C) to secure it
to the therapy port.
NOTE:
Make sure the frosted part of the bio-
filter covers the therapy port entirely.
4. Connect the other end of the breathing
hose (D) to the inlet port of the handset
(E).
NOTE:
If the clear spontaneous breathing
adapter is connected to the handset,
disconnect it before you do the next
step.
5. Connect the handset (F) to the front of
the blue ventilator adapter (G) and
twist the parts until they lock into
position.
6. Connect the in-line ventilator adapter
(H) to the output port of the blue
ventilator adapter (G).
II
