Comm. monitor
2015.07.0712:45
[Ready ]
No
1
2
3
4
5
6
7
8
R
S
R
S
R
S
R
S
05
06
02 10 31 41 42 43 44 45 10 32 31 32 33 34 35 03
06
05
06
02 10 31 41 42 43 44 45 10 32 31 32 33 34 7F 03
15
Communication descriptionTrans.
Back
Prev.Dsp.
NextDsp.
Blue : DLE2,ESC2,DLE,ESC Red : Failed line
Com=1
Start
Abort
Proc. status：HaltedDetection
Disable
Enable
M
Manual
Shutdown
HOME
USBoutput

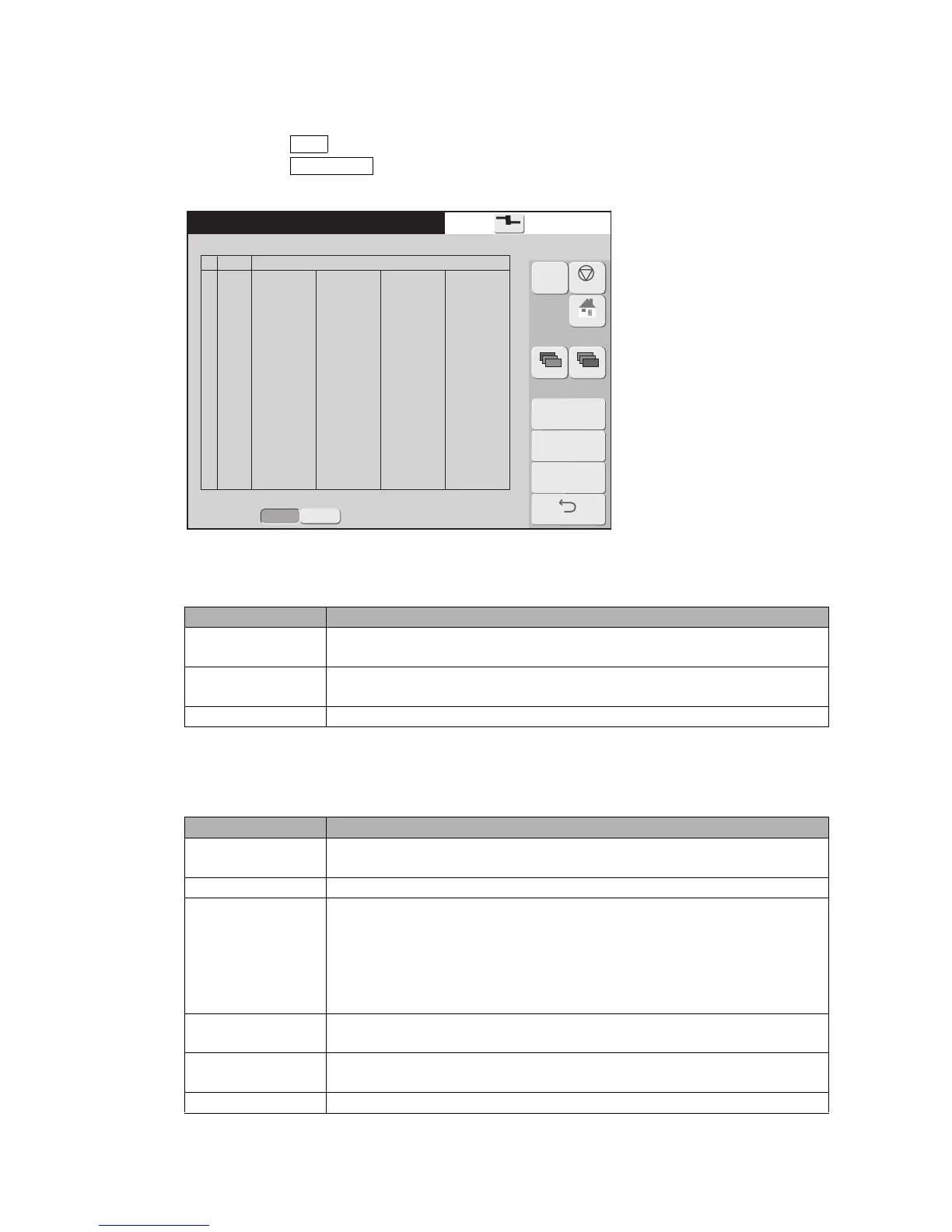

5.6 Communication Monitor Function
● The contents of serial communications between the external device and IJ printer are displayed.
● Up to 3,000 bytes of data can be acquired at a time.
● When you press the Start button, the system erases monitored data and acquires new data.
● When you press the USB output button, the communication description which is displayed on screen
can be output to USB memory.
(1) Screen display
Item Description
Trans.
External device → IJ printer : R (Receive)
IJ printer → External device : S (Send)
Communication
description
Sended/received data are displayed in hexadecimal notation. Sixteen bytes of
data are displayed per line.
Proc. status The current status is indicated (monitoring or interrupted).
(2) Input keys
Item Description
Start
Starts exercising the line monitor function. Erases the monitored
information.
Abort Aborts the execution of the line monitor function.
Error detection
This switches over whether the system is to detect error-ridden locations.
● Disable: The system will not detect error-ridden locations. The system
will memorize up to bytes 3,000 of data transmitted and received.
● Enable: The system will display error-ridden locations in red. The system
will memorize up to transmitted and received data up to the location where
an error was detected.
Previous list/
Next list
Used to switch to another screen when the amount of information to be
displayed is too large to fit on a single screen.
USB output
The Communication description which is displayed on screen can be output
to USB memory.
Back Returns you to the maintenance menu.
