●Transmission Sequences 5-27
5.3.8-2 Character size
● The character size is represented by the codes shown in the following table.
5.3.8-3 Pattern data
(1) Pattern data length
● The pattern data length per character varies with the character size as indicated below.

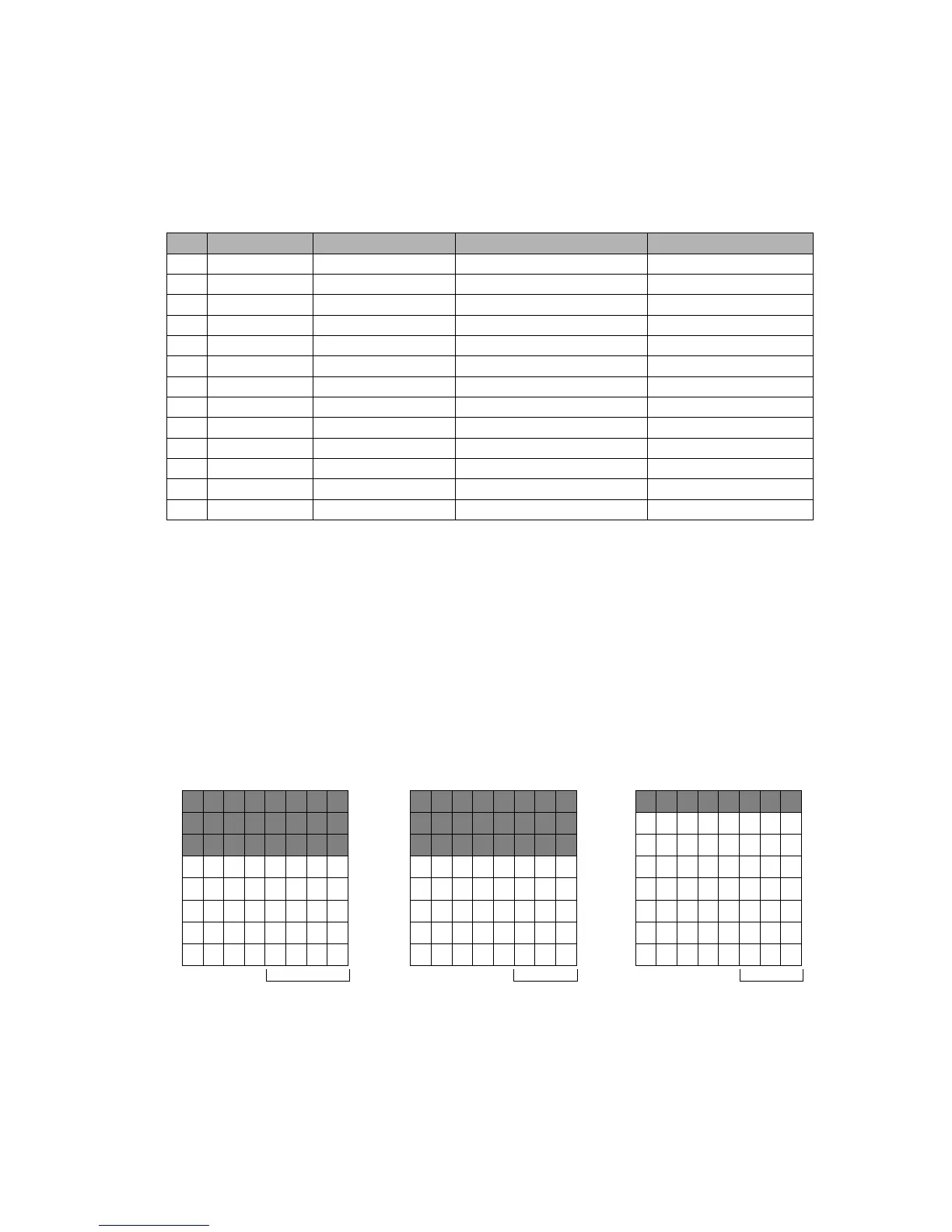

Character size code table
No. Character size Character size code Pattern data length (bytes) Remarks
14
×530H 8
25
×531H 8
35
×8(5×7) 32H 8
49
×8(9×7) 33H 16
57
×10 34H 16
610
×12 35H 32
712
×16 36H 32
818
×24 37H 72
924
×32 38H 128
10 11
×11 39H 32
11 5
×3(chimney) 3AH 5
12 5
×5(chimney) 3BH 5
13 7
×5(chimney) 3CH 7
(2) Pattern data structure
The pattern data structure and data creation rules are explained below.
a) Rules
● Each pattern data unit consists of 8 bits. For each bit, dot presence is indicated by the value 1 (dot
present) or 0 (dot not present).
● Vertically arrayed 8 dots correspond to 8 bits (1 byte).
● For character sizes of 4
×5, 5×5, 7×10, 5×7, and 9×7, etc., some portions of 8-bit data are
unavailable. Set such portions to "0". (Even if you set them to "1", processing will be performed with
their settings changed to "0".)
Inter-character space data area
4
×5
Inter-character space data area
5
×5
Inter-character space data area
5
×7
To Next Page
