4.3.2 Product speed matching function using a rotary encoder
The product speed matching function is used when the speed of the print target or the conveyer carrying the
print target changes while the IJ printer is printing. If this function is not used, when the speed changes, the
width of the printed characters may change and the characters may be difficult to read.
When the product speed matching function is used, it is necessary to input an external electric pulse having a
period proportional to the speed to the IJ printer. Ordinarily a rotary encoder is used for this purpose. The IJ
printer can print each vertical line of the printed message in synchronization with the pulses from the rotary
encoder.
4.3.2-1 Rotary encoder specifications wiring and switch setting
(1) The specifications of the connectable rotary encoders are:
Output waveform : Square wave (duty: 30to 70%)
Output withstand voltage : 24VDC or greater
Load current : 20mA or greater
Leakage current : 0.1mA or less
Power supply voltage : 24VDC
Current consumption : 100mA or less *Note 1
(When the IJ printer built-in power supply is used, the total current
consumption with the detectors is 100mA or less.)
Input signal frequency : 200kHz or less
Number of pulses : Decided by production line conditions
*Note 1) The maximum power supply capacity of the IJ printer built-in power supply (24VDC) is
100mA. When the current consumption of the detector and encoder exceeds 100mA and the
power supply voltage is outside 24V, use a dedicated power supply and perform the wiring
work described in (3) below.

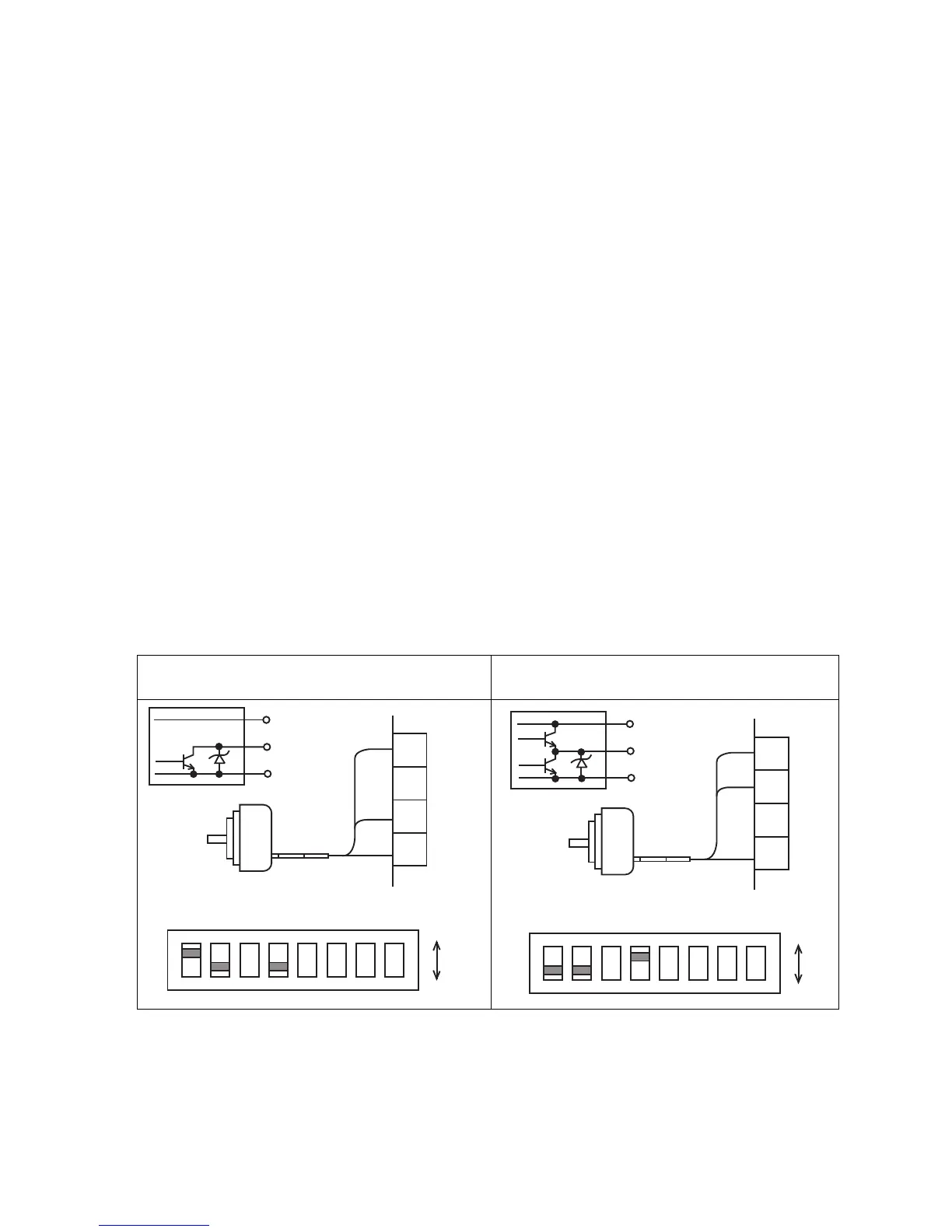

(2) Encoder wiring and setting of SW1 on PC board EZJ127 when IJ printer built-in power supply is used
