●Replacing the recovery filter 6-22
6.8 Replacing the recovery filter
● Do not perform this operation while ink is being ejected. Perform it after setting the IJ printer to the “Stop”
state.

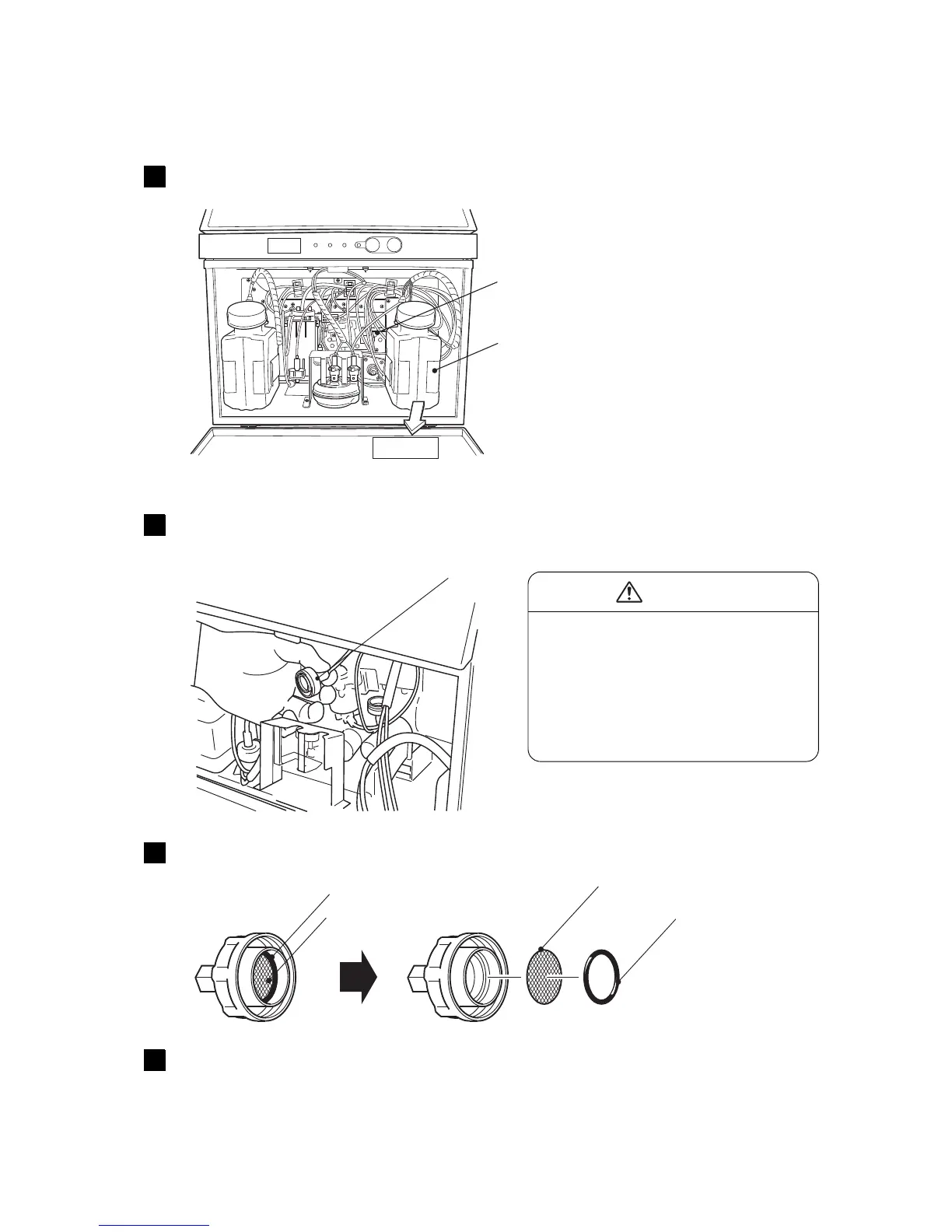

Pull out the makeup reservoir.
1
Rotate the lock nut of the recovery filter and pull it forward and out.
2
Remove the O ring and filter with tweezers and mount new ones.
3
Return it to its original state, and check to see that there is no leak of the ink in
operation.
* Tighten the nut securely by hand.
4
Recovery filter
Makeup reservoir
Lock nut
If ink is accidentally spilt, wipe it up
promptly with wiping paper or
something similar.
In addition, do not close the
maintenance cover until you are
sure that the wiped portion has
completely dried.
CAUTION
O ring
Filter
Filter
O ring
Pull out
To Next Page
