Hitachi IJ RX2 User Manual

●Replacing the ink 6-4
Circulation control
Select option; press [Start/Cont.] Proc. status:
2015.07.0712:45
Com=0
[Stop ]
Eject ink
(Goes to Standby)
Cleaning stop No-cleaning stop
Nozzle backwash
Recovery-line
cleaning
Ink replacement
Ink filter
replacement
Ink circulation
Cancel
Start/Continue
HOME
Prev.Dsp.
NextDsp.
Process prior to
long-term shutdown
Process after
long-term shutdown
Makeup refill
Start/Continue
Ink replacement

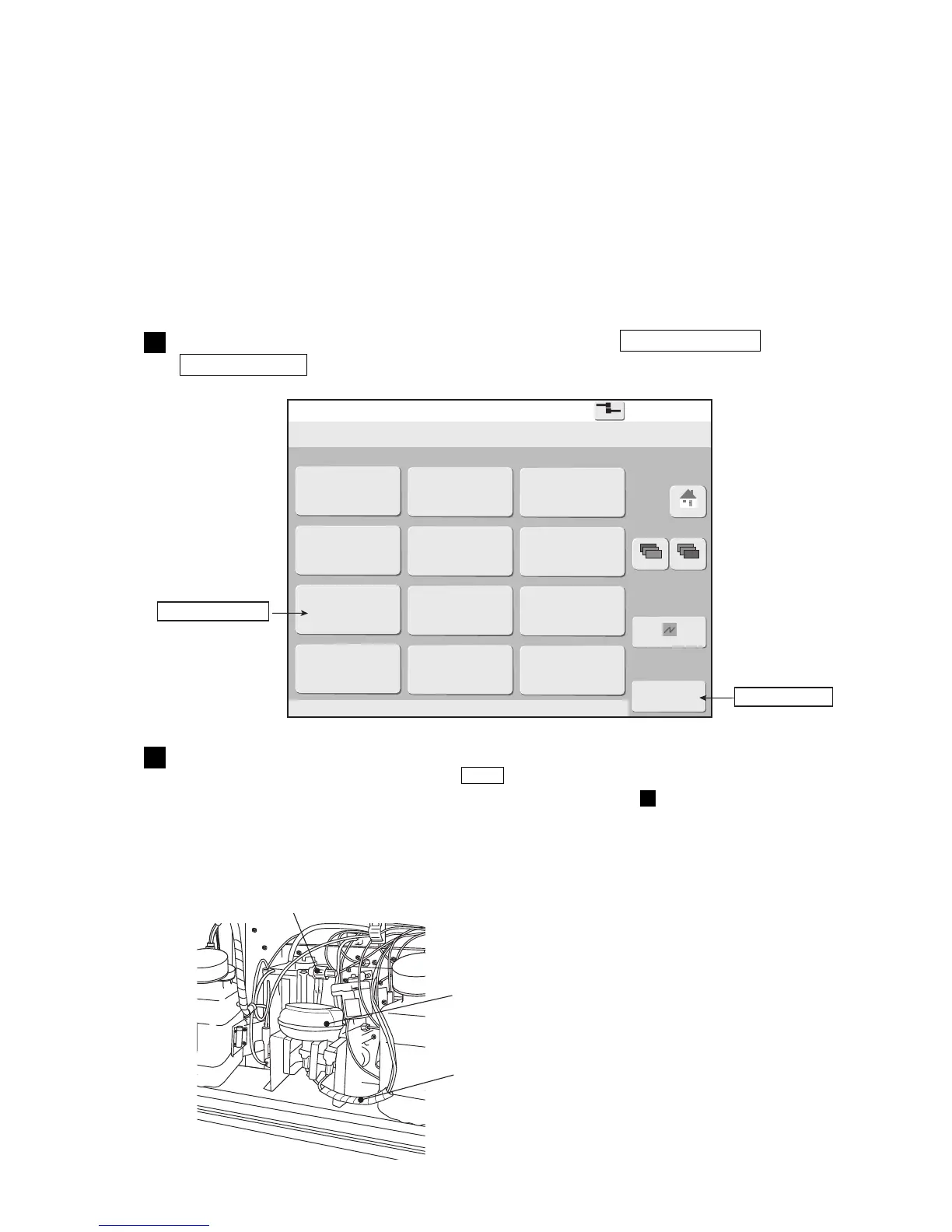

6.3 Replacing the ink
(1) Overview
● This operation is performed when replacing old ink with new ink.
● Consecutively performs from ink drainage to ink replacement to ink refilling.
● Do not perform this operation while ink is being ejected. Perform it after setting the IJ printer to the “Stop”
state.
*If replacement of the filters is matched to replacement of the ink, ink will not be wasted.
*When performing ink drainage or ink refilling separately, proceed by selecting each function at menu
2 of the Circulation control screen.
(2) Operation
Display the Circulation control screen and press the Ink replacement →
Start/Continue .
1
Drain ink in accordance with the operation guide on the screen.
● When you want to stop drainage, press Abort .
● When abort processing was performed, repeat operation from step .
2
1
(a) Change the direction of the ink filter so that tubes become the bottom, disconnect the
recovery block from the main ink tank and put it in a beaker.
Recovery tube
Ink filter tubes
Ink filter
