●Print characters 4-38
4.9 Print characters

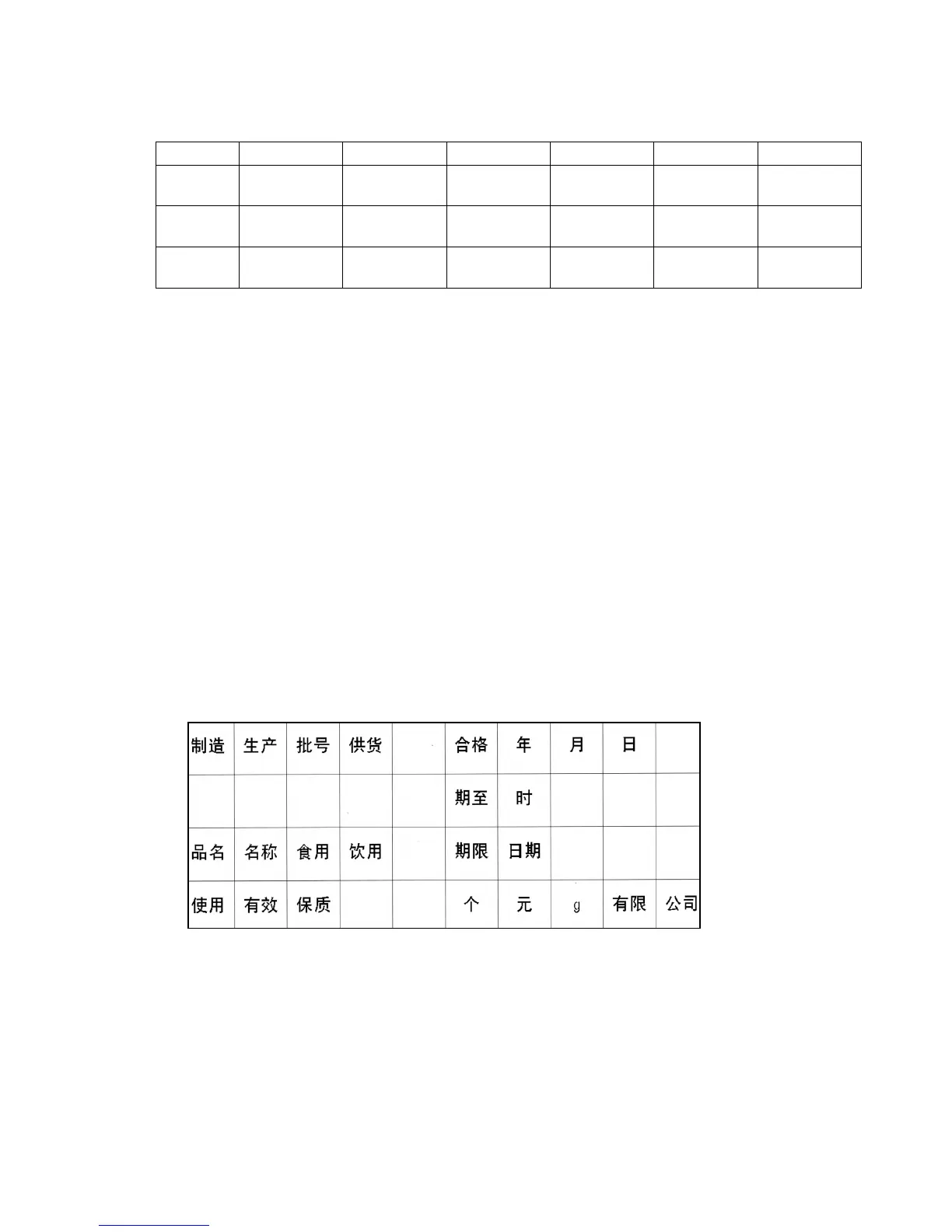

Ex. Dedicated character (Simple Chinese)
Lines and Message length (Characters)
Model type 1 line 2 lines 3 lines 4 lines 5 lines 6 lines
UX-B
240 char. ×
1 line
120 char. ×
2 lines
80 char. ×
3 lines
---
UX-D
240 char. ×
1 line
120 char. ×
2 lines
80 char. ×
3 lines
60 char. ×
4 lines
48 char. ×
5 lines
40 char. ×
6 lines
UX-E
1,000 char. ×
1 line
500 char. ×
2 lines
333 char. ×
3 lines
250 char. ×
4 lines
200 char. ×
5 lines
166 char. ×
6 lines
*) UX-D OP : Up to 1,000 characters
4.9.1 Print fixed characters
(1) Function
●Inputs the characters to be printed.
●The kinds of characters which can be input are defined for each character size. Moreover, there is an
appropriate inter-character space depending on the kind of character. (See “4.7.4 Set dot matrix,
inter-character space, and other parameters”.)
●There is an “Insert” mode and an “Overwrite” mode when inputting.
●“Duplicate” by selecting the start and end of the character string and “Paste” at an arbitrary position are
possible.
●The characters which can be set as dedicated characters are shown below.
For dedicated characters, single words are handled collectively at input and deletion.
● Inputting an Arabic character will move the cursor to the left.
● Use the Insert mode to input Arabic characters.
● Alphanumeric characters and symbols can be input on the Edit screen (New HMI).
If the characters other than Alphanumeric characters or symbols are needed, use Edit message screen
(Previous HMI).
●There are no limits on the number of digits which can be input at one print item.
To Next Page
