4-1 ●Print description screen
Item Description Reference
Change message ●Edits and corrects current message. 4.2
Select message ●Calls and prints saved messages. 4.3
Overwrite message ●Overwrites the current message. 4.4
Adjust print parameters ●Creates and edits messages different from the current message. 4.14.4
Operation management ●Displays operation status. 5.2
Maintenance ●Displays the maintenance menu. 5
Auxiliary function ●Displays the auxiliary functions menu. 7
Environment setup menu ●Displays the environment setup menu 6
Select login user ●Logs in again as a different user from currently logged in user. 6.4
Create/Edit message ●Creates and edits messages different from the current message. 4.5
Print count reset ●Reset the print count to zero (0). 4.1
Cartridge replacement ●Replace ink/makeup cartridge. 8
Print description 2015.07.0712:45
Menu
Com=0
[Stop ]
Ink operating time １００(hours)
Cumulative op. time １００(hours)
Print count １０００(prints)
Ink pressure  ０．０００(MPa；standard value:０．２５５)
Change
message
Select
message
Overwrite
message
Adjustprint
parameters
Operation
management
Message name[ ]
《
−
》
＋
Maintenance
Auxiliary
function
Environment
setupmenu
2015.07.0712:45
Com=0
Current user ID : user2
Select
loginuser
Create/Edit
message
Inter-
laced
Printcount
reset
Startup
Manual
Makeup
Ink
Shutdown
Manual
4. CREATION AND PRINTING OF MESSAGES
4.1 Print description screen (initial screen)
(1) Overview
●The display is shifted to the screens for message edit and Maintenance, Auxiliary function, and
Environment setup menu screens by pressing each button.
●The print image can be confirmed at the “Print layout” area.
●The operational items in Print description screen (New HMI) are different from those in Print description
screen (Previous HMI).

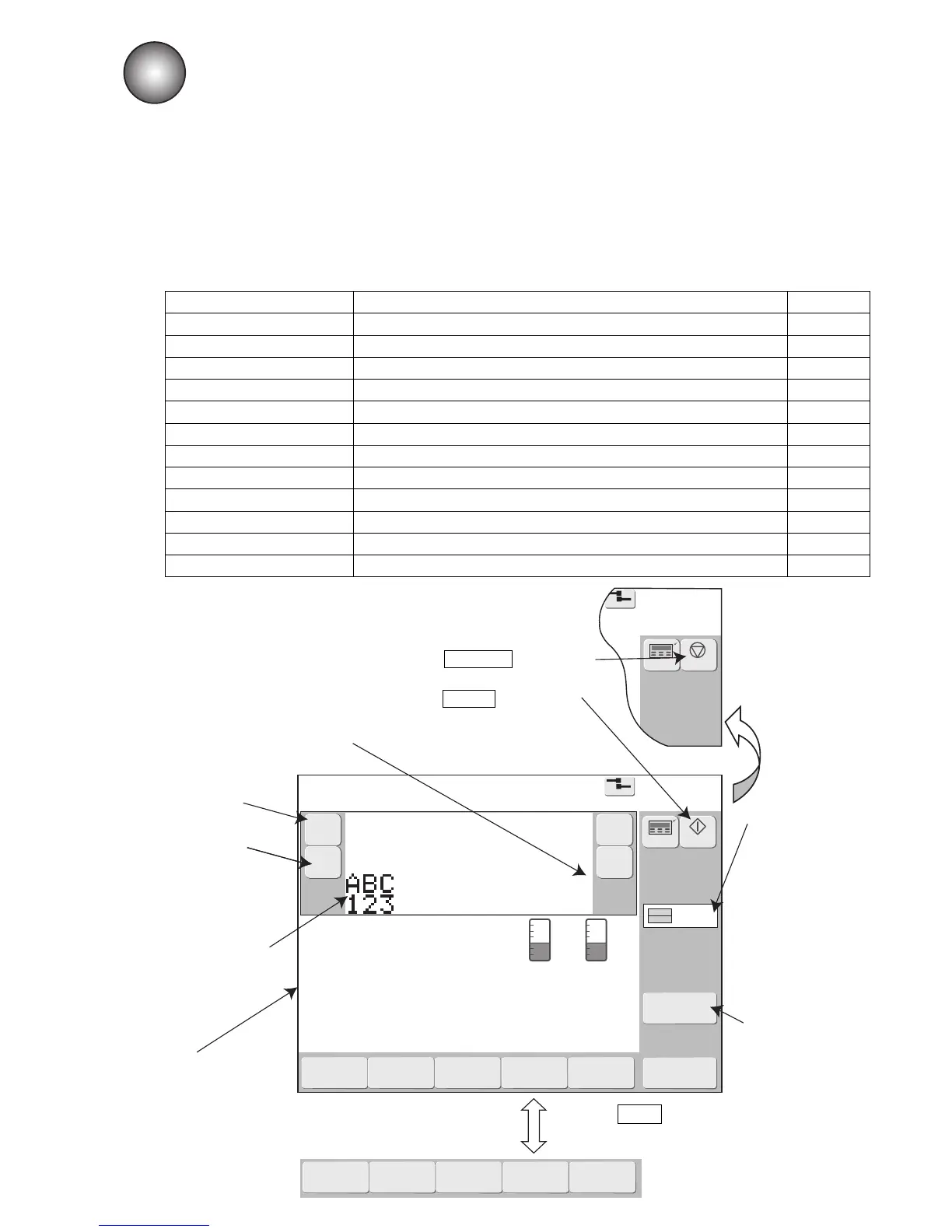

(a) Previous HMI
The Shutdown is displayed
during ink ejection.
The Startup is displayed
during stop.
Displays the
print layout.
Displays the operation
management
information.
When the Menu is pressed,
the display is switched.
Displays the zoom in
or zoom out.
Displays the scroll.
For details
regarding the
printing method
display, refer to
"4.14.1 Set the
character
height,
character width,
and
orientation."
Print count is
reset to 0.
It is indicated in
off-line state.
Displays remaining level of Cartridge.
This button is activated when the
Cartridge shall be replaced.
