Honda BF8D User Manual

〈〉
〈〉
20A
Never use a fuse with a
different rating from that
specified. Serious damage to
the electrical system or a fire
may result.
127
Ifthefuseisblown,checkthe
cause, then replace the fuse with a
sparefuseofthesamerated
capacity. Unless the cause is found,
the fuse may blow again.
Propeller Change

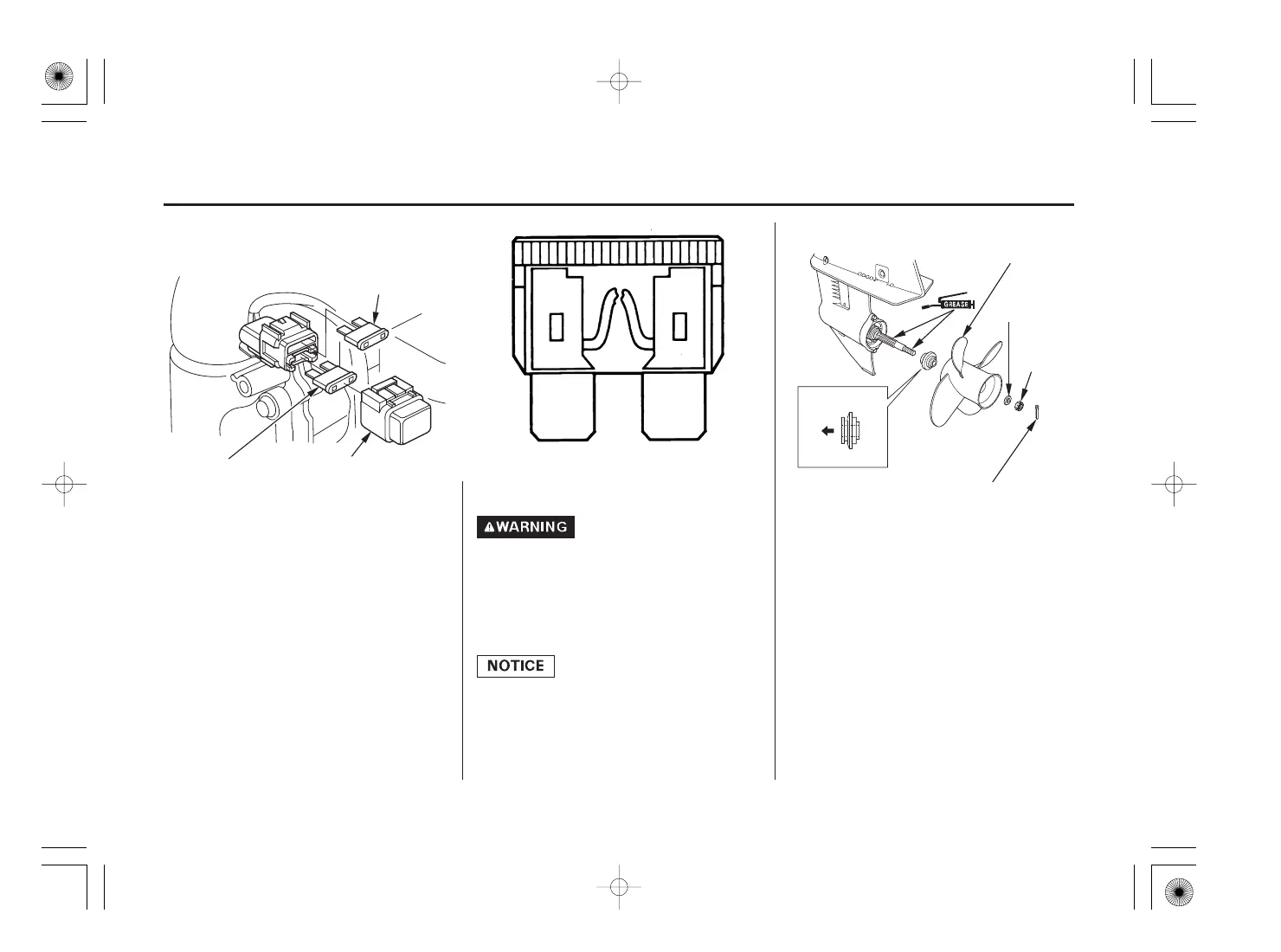

Designated fuse
How to replace the fuse
Replacing the Fuse (Electric starter
type and 6A charge coil type)
MAINTENANCE
BLOWN FUSE
COTTER PIN
CASTLE
NUT
20A FUSE
SPARE 20A FUSE
FUSE CASE LID
THRUST WASHER
PLAIN
WASHER
PROPELLER
TOWARD
GEAR CASE
If the propeller is damaged by
striking a rock, or other obstacle,
replace the propeller as follows.
Remove the cotter pin then remove
the 10 mm castle nut, 10 mm plain
washer, propeller and thrust
washer.
If the fuse blows, running the engine
will not charge the battery. Before
replacing the fuse, check the current
ratings of the electrical accessories
and ensure that there are no
abnormalities.
Stop the engine.
Remove the engine cover.
Remove the fuse case lid and pull
the blown fuse out of the clip with
your finger.
Push a new fuse into the clips.
2.
3.
4.
1.
1.
11/09/05 18:17:20 32ZY0620_127
