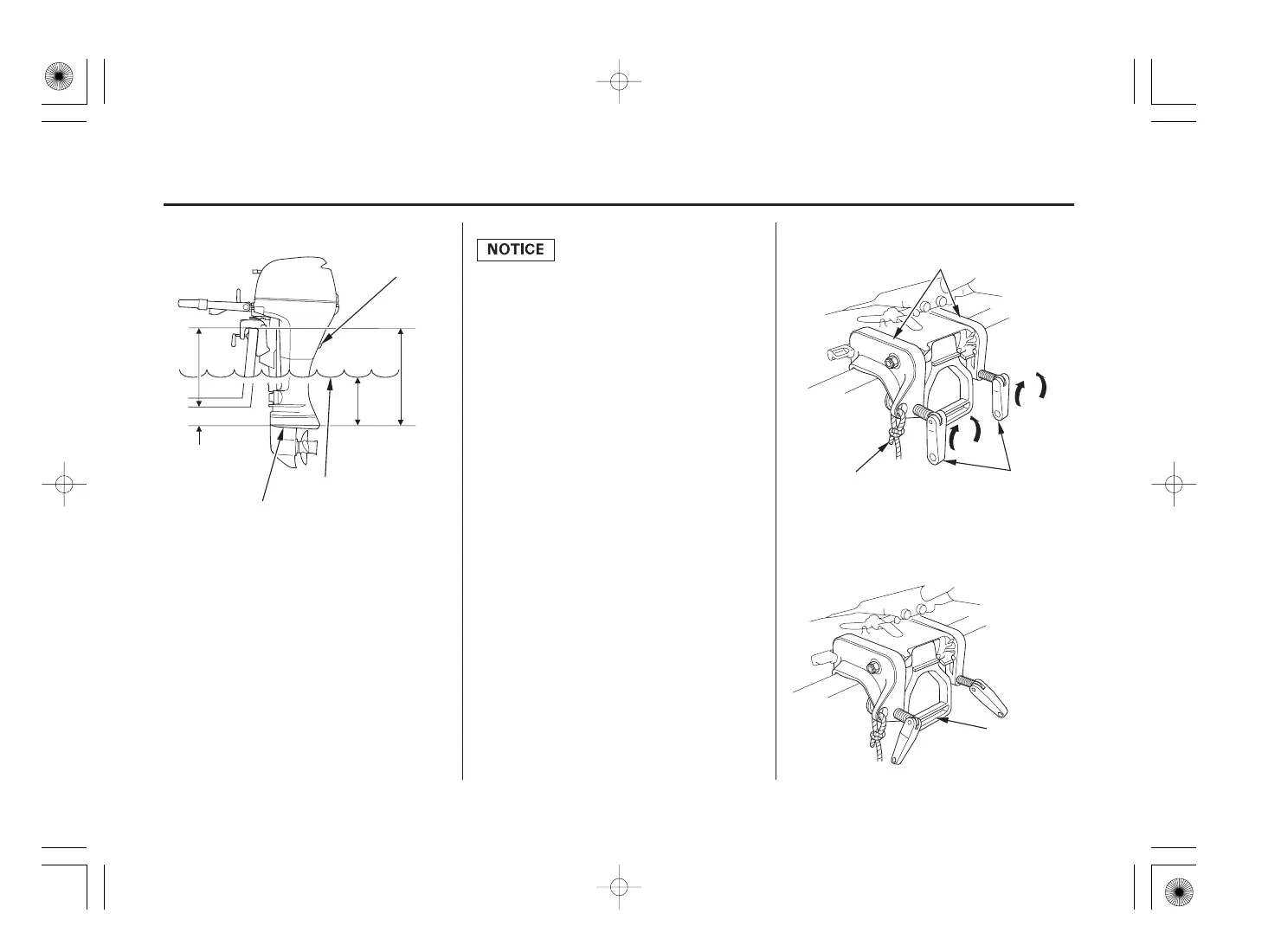

Installation Height Outboard Motor Attachment
The water level must be at least
100 mm (4 in) above the
anticavitation plate with the engine
not running, otherwise the water
pump may not receive sufficient
cooling water, and the engine will
overheat.
INSTALLATION
ROPE
STERN BRACKET
CARRYING
HANDLE
(Storage position)
CLAMP SCREW
BBOOAATT
TTRRAANNSSOOMM
HHEEIIGGHHTT
050mm
(0 2 in)
ANTICAVITATION PLATE
WATER SURFACE
IDLE PORT
100 mm
(4 in)
OOUUTTBBOOAARRDD
MMOOTTOORR
TTRRAANNSSOOMM
HHEEIIGGHHTT
Attach the stern bracket to the
transom and tighten the clamp
screws. Push the carrying handle
into the storage position.
If the outboard motor is installed too
high, that will cause propeller
ventilation.
If the outboard motor is installed too
low, the boat will squat and be hard
to plane, and the engine will spray
water that may enter the boat. It will
tend to porpoise, and high-speed
stability will be reduced.
