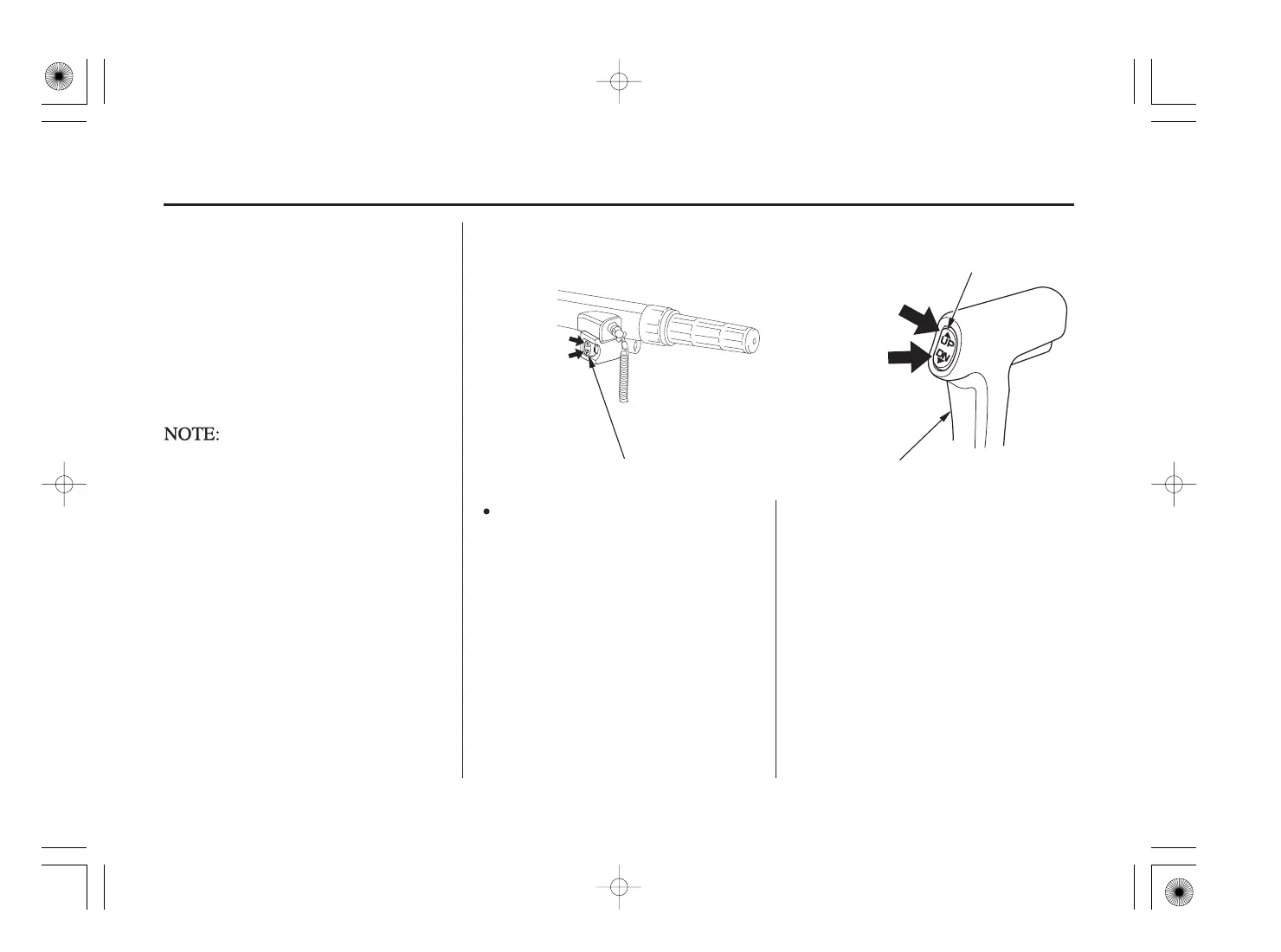

To tilt up the outboard motor:
Tilting the Outboard Motor
OPERATION (T type)
CONTROL LEVER
(H type) (R type)
POWER TILT SWITCH
POWER TILT SWITCH
Press UP to tilt
the outboard
motor up.
PPrreessss UUPP ttoo ttiilltt
tthhee oouuttbbooaarrdd
mmoottoorr uupp..
Press DN to tilt
the outboard
motor down.
Press DN to tilt
the outboard
motor down.
Push the UP side of the power
tilt switch and tilt up the outboard
motor to the uppermost position.
Set the tilt lock lever in the
LOCK position (see page ).
Push the DN side of the power
tilt switch and lower the outboard
motor a little to make it stabilized
in the tiltup position.
The outboard motor equipped with
the power tilt system can adjust the
outboard motor angle only while
mooring.
When operating the power tilt switch,
stop the boat. Once tilt angle is fixed,
it can be kept while cruising both to
forward and reverse directions.
Before tilting up, leave the outboard
motor in the running position for one
minute after stopping the engine to
drain the water from inside the
engine.
Stop the engine and disconnect the
fuel line from the outboard motor
before tilting the outboard motor.
1.
2.
3.
92
11/09/05 18:10:37 32ZY0620_090

Honda BF8D Specifications

General

HP Rating	8 HP
Cooling System	Water cooled
Fuel Delivery	Carburetor
Ignition System	CDI
Starting System	Manual
Gear Ratio	2.33:1
Fuel Tank Capacity	12 L (external tank)
Engine Type	4-stroke
Full Throttle RPM Range	5, 000-6, 000 RPM
Shaft Length	381 mm (Short Shaft)
