8-12
FUEL SYSTEM HRN216

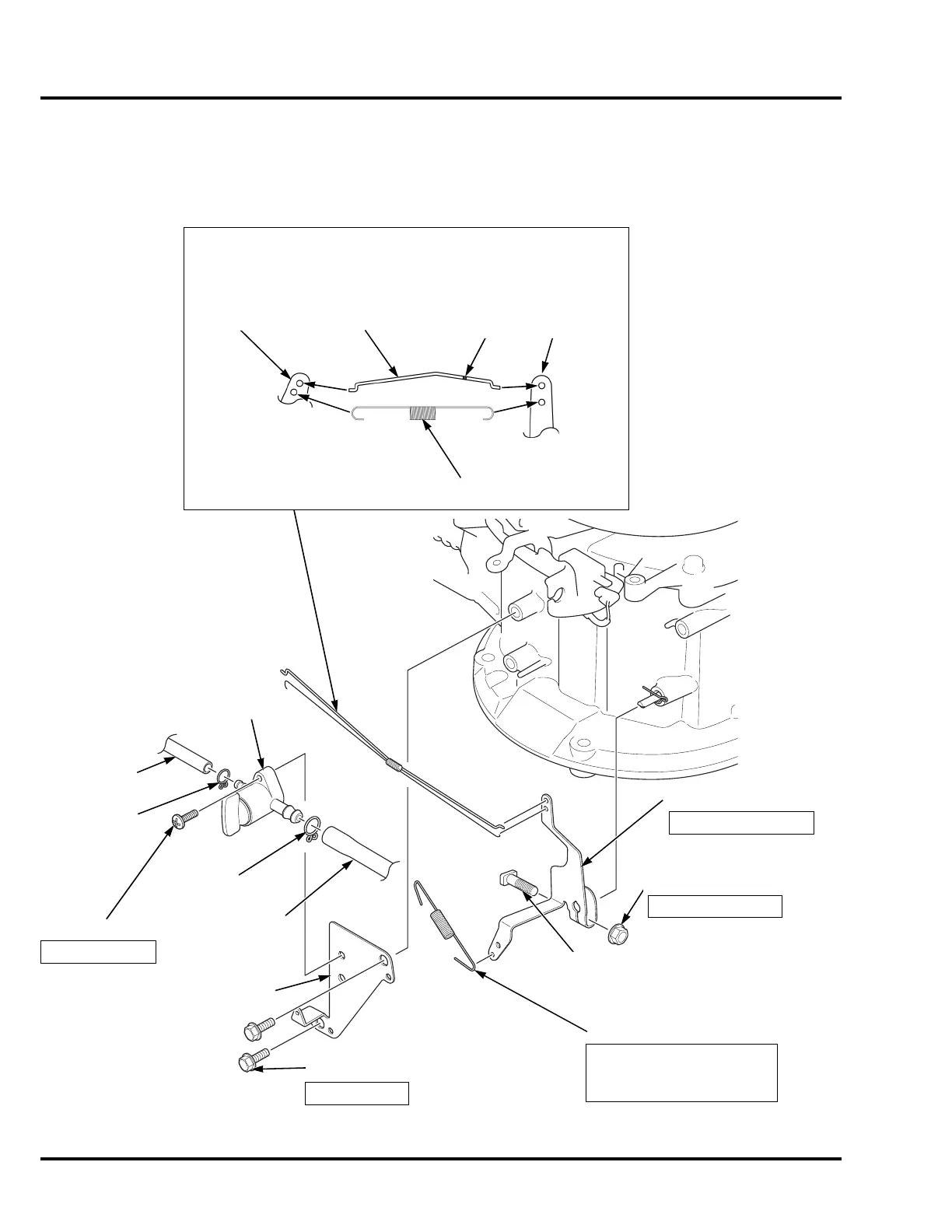

2. CONTROL BASE/GOVERNOR ARM
PKA/VKA/VLA TYPES
REMOVAL/INSTALLATION
INSTALLATION:
Install with the short end side
toward the governor arm.
2.5 N•m (1.8 ft-lb)
GOVERNOR SPRING
5 x 12 mm SCREW
GOVERNOR ARM BOLT
GOVERNOR ARM NUT
12 N•m (9 ft-lb)
FUEL VALVE
B12 TUBE CLIP
B8 TUBE CLIP
6 x 14 mm BOLT (CT bolt) (2)
GOVERNOR ARM
INSTALLATION:
Install the governor rod through the throttle return spring as shown.
Connect each to the governor arm and carburetor throttle arm as shown.
GOVERNOR ARM/THROTTLE RETURN SPRING
THROTTLE ARM GOVERNOR ROD
GOVERNOR
ARM
THROTTLE RETURN SPRING
12 N•m (9 ft-lb)
PAINT
FUEL TUBE
FUEL TUBE
(4.5 x 110 mm)
FUEL VALVE BRACKET
ADJUSTMENT: P. 3-21

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
