Honda HRN216VYA User Manual

8-13

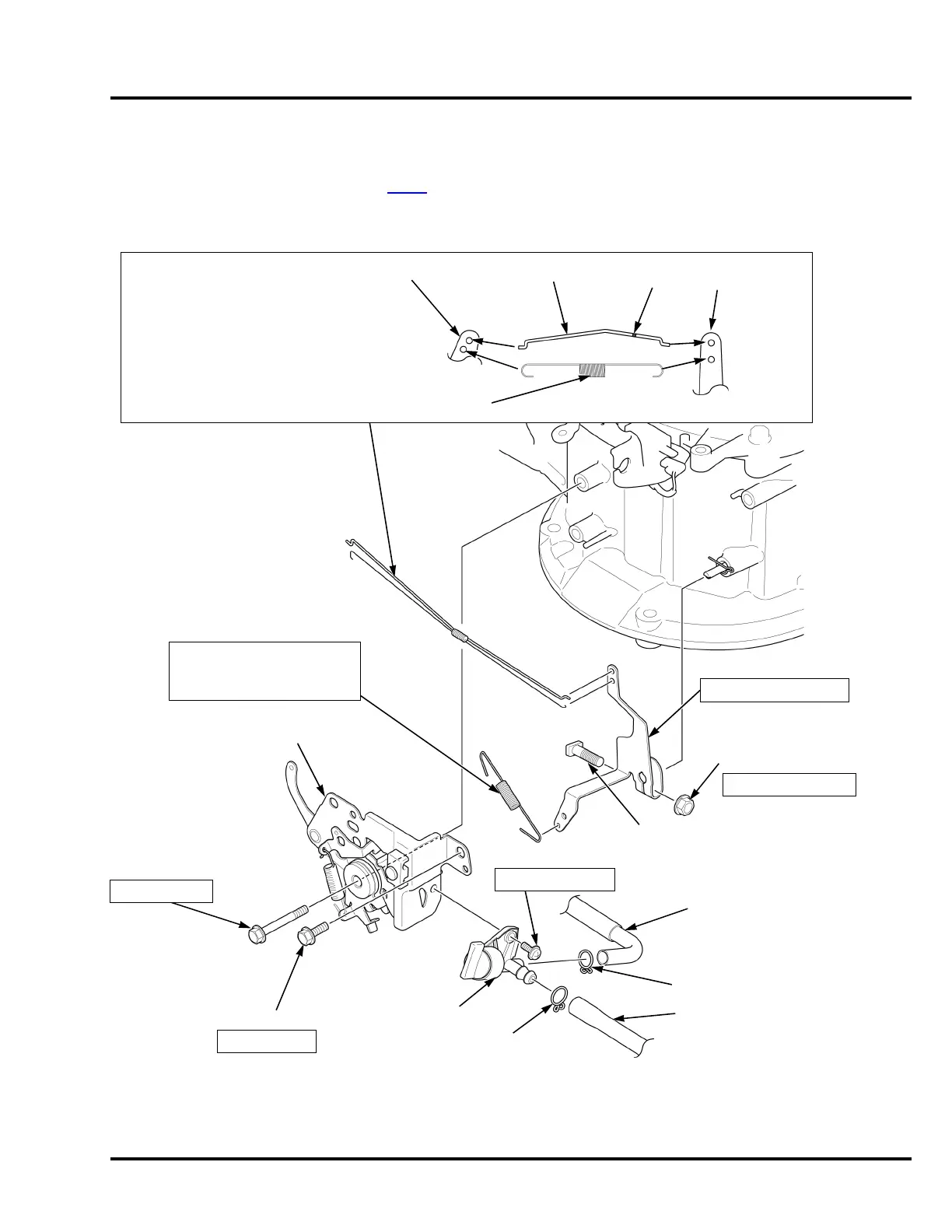

HRN216 FUEL SYSTEM
VYA TYPE
REMOVAL/INSTALLATION
Remove the air cleaner and carburetor (P. 8 -2
).
INSTALLATION:
Install with the short end side
toward the governor arm.
2.5 N•m (1.8 ft-lb)
GOVERNOR SPRING
SCREW (5 x 10 mm)
GOVERNOR ARM BOLT
GOVERNOR ARM NUT
FUEL VALVE
B12 TUBE CLIP
B8 TUBE CLIP
BOLT (CT bolt ; 6 x 14 mm)
CONTROL BASE
FUEL TUBE
GOVERNOR ARM
INSTALLATION:
Install the governor rod through the
throttle return spring as shown.
Connect each to the governor arm and
carburetor throttle arm as shown.
GOVERNOR ARM/THROTTLE RETURN SPRING
THROTTLE ARM GOVERNOR ROD
GOVERNOR
ARM
THROTTLE RETURN SPRING
12 N•m (9 ft-lb)
PAINT
FUEL TUBE
BOLT (CT bolt ; 6 x 50 mm)
12 N•m (9 ft-lb)
ADJUSTMENT: P. 3-21
12 N•m (9 ft-lb)

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
