Honda HRN216VYA User Manual

2-22
SERVICE INFORMATION HRN216
VKA TYPE


PIVOT BOLT
CABLE TIE (2)
CABLE TIE
Loosely install the two upper cable ties around the
handlebar and flywheel brake cable.
Install the wire holder into the hole on the outside of the
left handle stay. Insert the flywheel brake cable into the
wire holder, and then tighten the wire holder around the
cable.

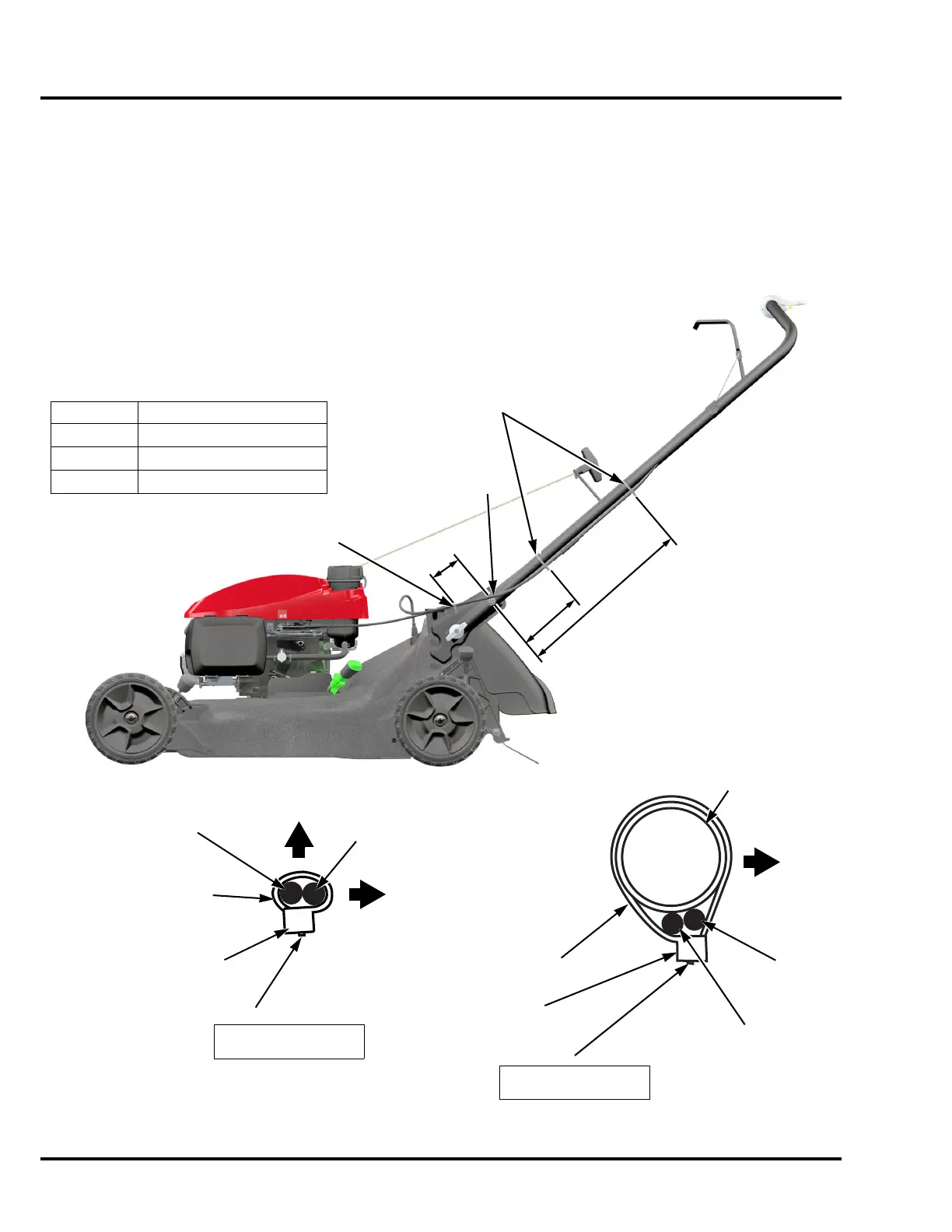

Position the two cable ties in the locations shown using
the pivot bolt as a starting point for your measurements.
Tighten the two cable ties.
Trim off any remaining tail from each cable tie, and then
rotate the cable ties so that the head and cut edge are
facing down.
Location Distance from pivot bolt

165 mm (6-1/2 in)

390 mm (15-3/8 in)

80 mm (3-1/8 in)
CABLE TIE
HEAD
FLYWHEEL
BRAKE CABLE
HANDLEBAR
SMART DRIVE
CABLE


CABLE TIE
HEAD
FLYWHEEL
BRAKE CABLE
SMART DRIVE
CABLE
UP
OUTSIDE
OUTSIDE
CUT EDGE
The cut edge should be
flush and face down.
CUT EDGE
The cut edge should be
flush and face down.

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
