HANDLEBAR/ CABLES/CONTROLS HRN216
HANDLE LOCKING KNOB
REMOVAL

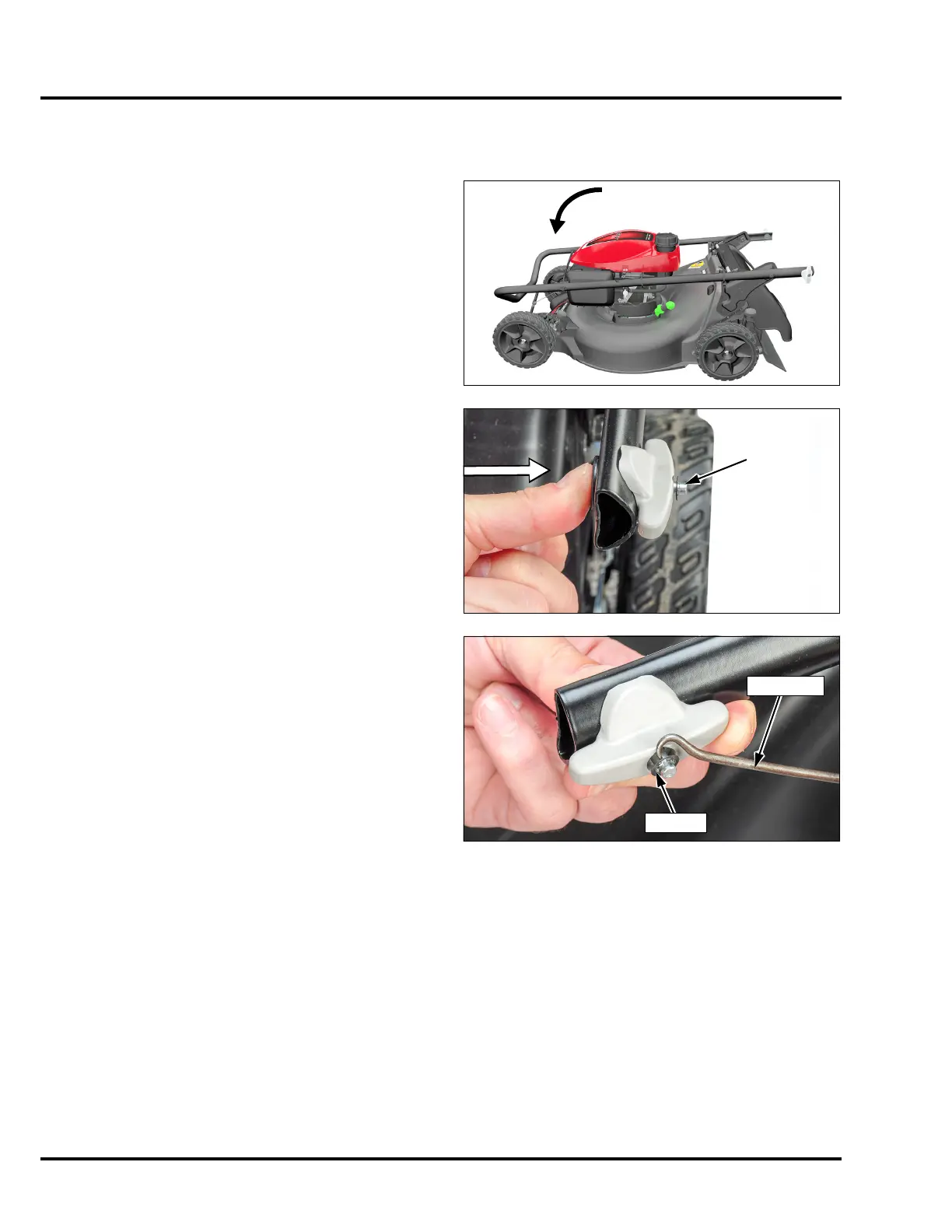

1. Unlock the handle locking knobs and then fold the
handlebar over the mower into the storage position.
2. Depress the 8 mm pin with your finger from the back
side so that the pin and pin clip protrude from the
handle locking knob.
3. Use a pick tool, needle nose pliers, or side cutters to
pry the pin clip from the 8 mm pin shaft. The clip will get
bent or damaged during removal. Always use a new
clip during reassembly.
4. Remove the handle locking knob, 8 mm pin, height
adjust spring, and adjusting collar from the handlebar.
5. Repeat steps 1 through 4 for the other side.
8mm PIN
PIN CLIP
PICK TOOL

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
