Honda HRN216VYA User Manual

12-18
VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRN216
INSTALLATION

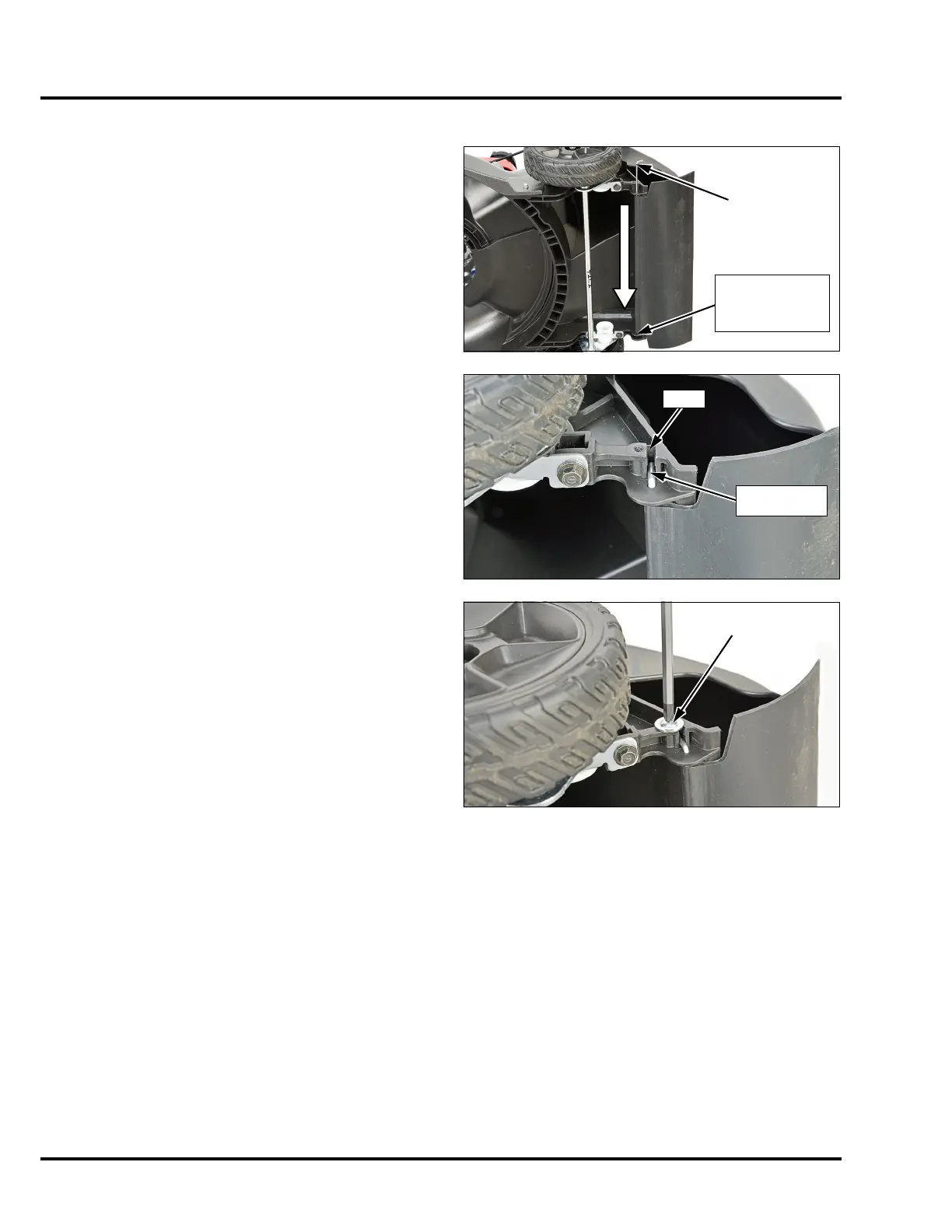

1. Hold the rear shield in place, and then slide the shaft
through the left-hand side of the rear housing, through
the rear shield, and then into the right-hand side of rear
housing.
2. Insert the bent end of the shaft into the slot in the
left-hand side of the rear housing until it is full seated.
3. Install the Phillips-head screw and plain washer into the
rear housing.
REAR SHIELD
SHAFT
Be sure the shaft
is inserted into
the hole in the
rear housing.
REAR SHIELD
SHAFT
SLOT
SCREW/
WASHER

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
