BLADE HOLDER/ROTO-STOP® HRN216
2. ROTO-STOP
®
/DRIVE PULLEY
VYA TYPE

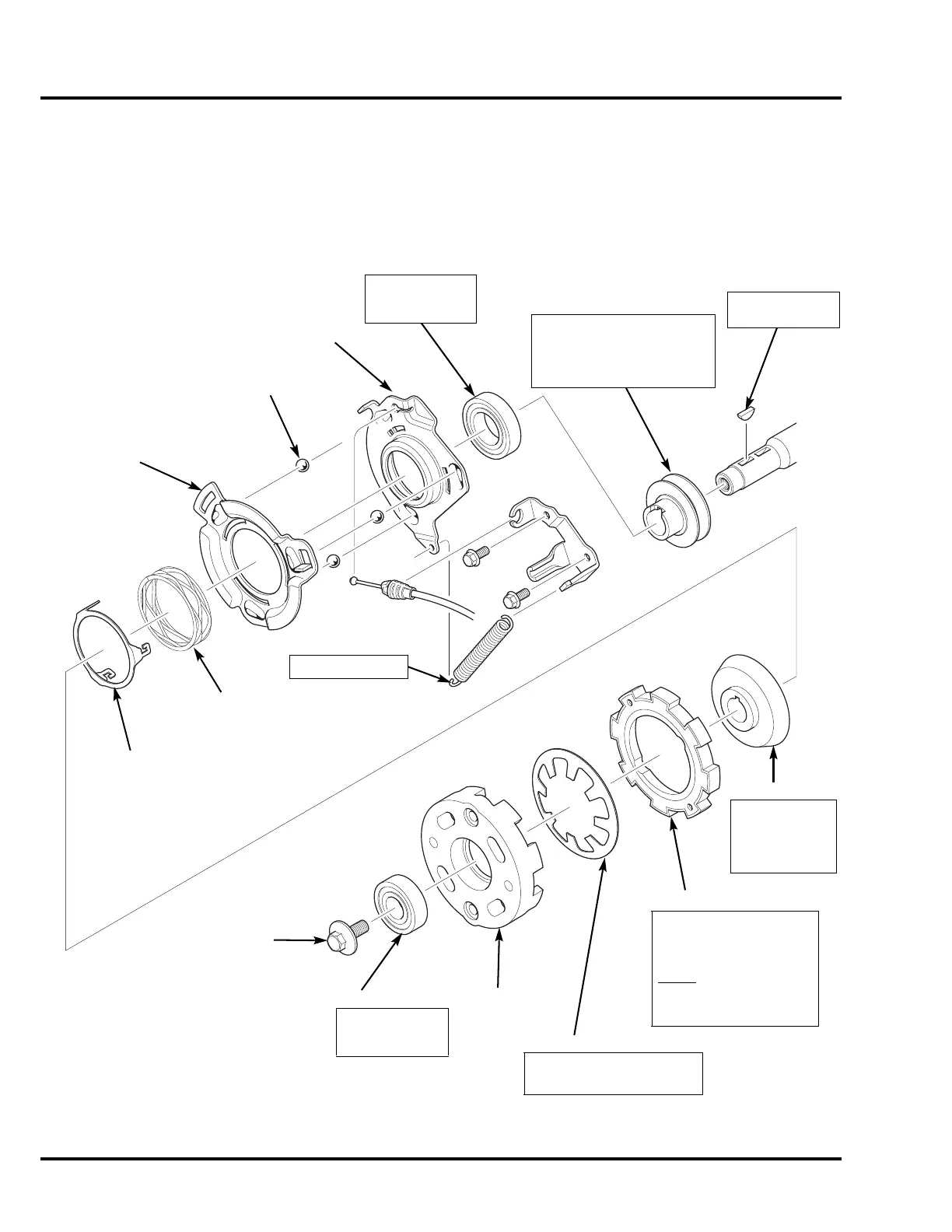

PARTS REFERENCE
BRAKE PLATE
BALL PLATE
BALL PLATE SPRING
BLADE
HOLDER
SPRING HOOK PLATE
STEEL BALL (3)
DRIVE PULLEY
“M” code marking identifies this
drive pulley is for an
HRN216VYA model. Visually
verify this code is correct
before installing.
WOODRUFF KEY
Install in lower
keyway slot.
CLUTCH SPRING
“UP” mark towards engine
INSPECT
: P. 4-10
BEARING
Replace if it
doesn’t rotate
smoothly.
BRAKE PLATE
SPECIAL BLADE
HOLDER BOLT
SPRING
INSPECT: P. 4-10
DRIVE DISK
“7” mark on the
back identifies
the disk fits the
HRN216VYA
model.
DRIVEN DISK
5-digit code mark starting
with an “R” identifies the
disk will fit an HRN216VYA
model.
NOTE:
This is an ink marking and
may be difficult to see, and
may wear off over time.
BEARING
Replace if it
doesn’t rotate
smoothly.
