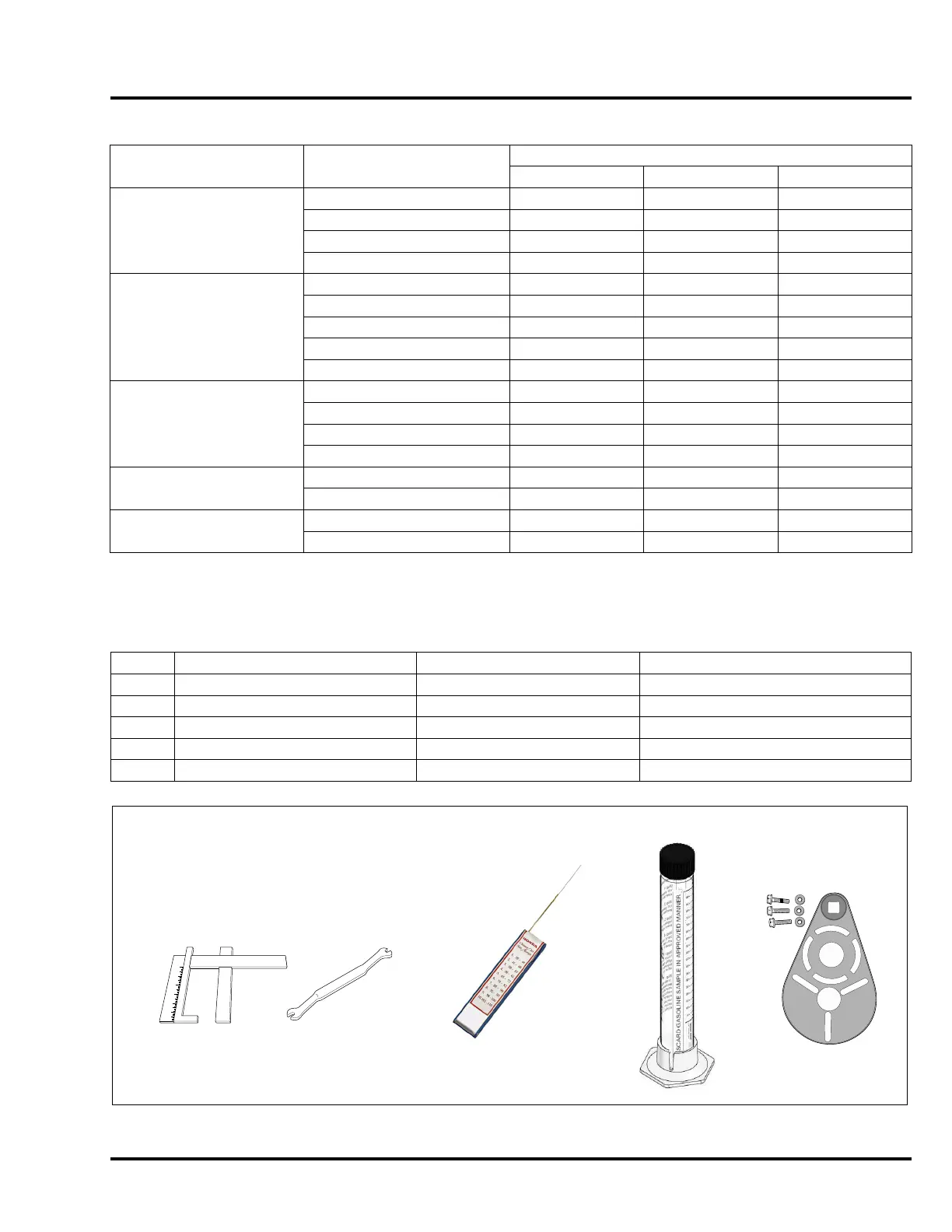

HRN216 SERVICE INFORMATION
STANDARD TORQUE VALUES
6. TOOLS
SPECIAL
STANDARD
FASTENERS
THREAD DIAMETER
TORQUE
N•m kg-m ft-lb
Screw
3 mm 1 0.1 0.7
4 mm 2 0.2 1.4
5 mm 4.3 0.4 3.2
6 mm 9 0.9 6.6
Bolt and nut
5 mm 5.3 0.5 3.9
6 mm 10 1.0 7
8 mm 22 2.2 16
10 mm 34 3.5 25
12 mm 54 5.5 40
Flange bolt and nut
6 mm 12 1.2 9
8 mm 24 2.4 18
10 mm 40 4.1 30
12 mm 59 5.9 44
CT (Cutting threads)
flange bolt (Retightening)
5 mm 5.5 0.6 4.1
6 mm 12 1.2 9
Flange bolt and weld nut 6 mm 10 1.0 7
8 mm 25 2.5 18
ITEM TOOL NAME TOOL NUMBER APPLICATION
1 Carburetor float level gauge 07401-0010000 Carburetor float level inspection
2 Valve adjustment wrench, 3 mm 07908-KE90200 Valve clearance adjustment
3 Jet cleaner 07JPZ-001010B Cleaning carburetor jets
4 Fuel Alcohol tester 07AAJ-E85A100 Check percent of ethanol in fuel
5 Multi-use flywheel holder 07APB-Z28A101 Flywheel removal
2
1
3
4
5

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
