Honda HRN216VYA User Manual

11-22
HANDLEBAR/ CABLES/CONTROLS HRN216

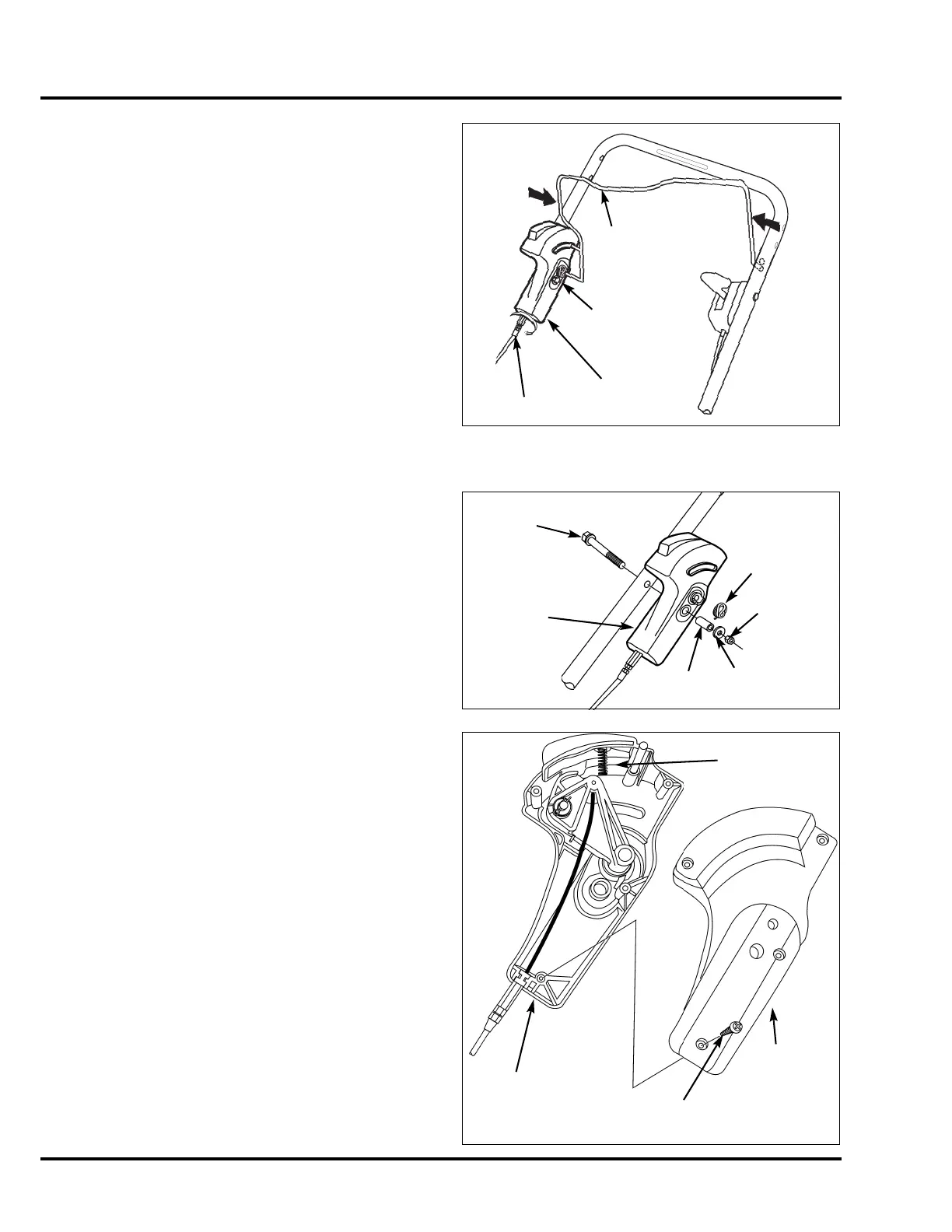

6. ROTO-STOP CABLE
VYA TYPE ONLY
REMOVAL
1. Cut the three cable ties securing the Roto-Stop cable to
the handle pipe.
2. Loosen the lock nut and turn the adjuster in the direction
shown until it is fully seated.
3. Remove the blade control lever.
 Push the blade control lever in the direction shown
and remove it from the left side handle pipe.
 Push the blade control lever in the direction shown
and remove the blade control lever spring from the
blade control lever.
 Push the blade control lever in the direction shown
and remove it from the Roto-Stop control assembly.
4. Remove the 6 x 65 mm flange bolt, 6 mm lock-nut, 6 mm
plain washer, and the Roto-Stop control assembly from
the handle pipe.
5. Remove the spacer from the Roto-Stop control
assembly.
6. Remove the blade control lever return spring.
7. Remove the four self-tapping screws and carefully
separate the Roto-Stop right case from the left case.
Be careful not to lose the lever return spring. Remove
the lever return spring.
ROTO-STOP
CONTROL
ASSEMBLY
BLADE
CONTROL LEVER
BLADE
CONTROL
LEVER
SPRING



ADJUSTER
ROTO-STOP
CONTROL
ASSEMBLY
6 x 65 mm
FLANGE
BOLT
BLADE
CONTROL
LEVER
RETURN
SPRING
6 mm PLAIN
WASHER
6 mm
LOCK-NUT
SPACER
ROTO-STOP
RIGHT CASE
SELF-TAPPING
SCREW (4)
ROTO-STOP
LEFT CASE
LEVER
RETURN
SPRING

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
