Honda HRN216VYA User Manual

13-10

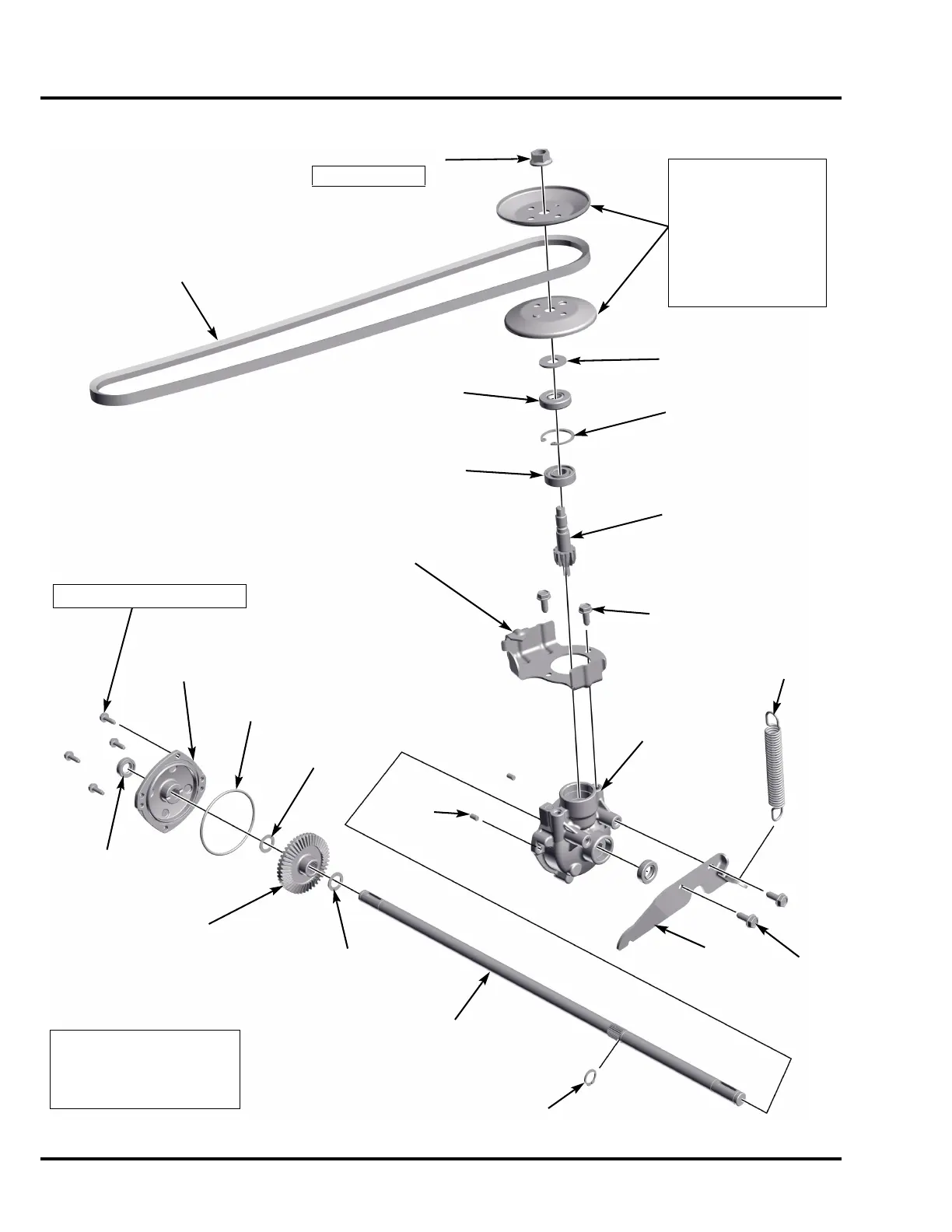

TRANSMISSION/DRIVE BELT HRN216
TRANSMISSION
CASE COVER
TRANSMISSION
STAY
5 x 16 mm FLANGE BOLT (4)
8.8 ~ 11.8 N•m (6.5 ~ 8.7 ft-lb)
CASE O-RING
12 x 28 x 6 mm OIL
SEAL
RETURN
SPRING
BELT GUIDE
6 x 14 mm
FLANGE BOLT (2)
* TRANSMISSION CASE
OIL REFILL: P. 2-20
Use SAE 10W-30 SN engine oil
and fill to the capacity specified.
CAPACITY: 44 cc (1.5 oz)
10 mm FLANGE NUT
27 N•m (20 ft-lb)
12.7 x 22.2 x 6.4 mm
OIL SEAL (2)
PINION SHAFT
DOWEL
PINS (2)
10 x 24 mm
HARDENED
WASHER
DRIVEN PULLEY HALVES
REMOVAL
Hold the pinion shaft with
a wrench, and then
remove the 10 mm flange
nut.
INSTALLATION:
Align the pulley pins
opposite each other so
that they fit into the small
holes of the other pulley
half.
6 x 14 mm
FLANGE
BOLT (2)
TRANSMISSION
CASE*
28 mm INNER
CIRCLIP
6001 BALL
BEARING
DRIVE BELT
RING GEAR
FINAL SHAFT
12.7 mm OUTER
CIRCLIP
12.7 mm PLAIN
WASHER (2)
12.7 mm PLAIN
WASHER (2)

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
