Honda HRN216VYA User Manual

11-2
HANDLEBAR/ CABLES/CONTROLS HRN216

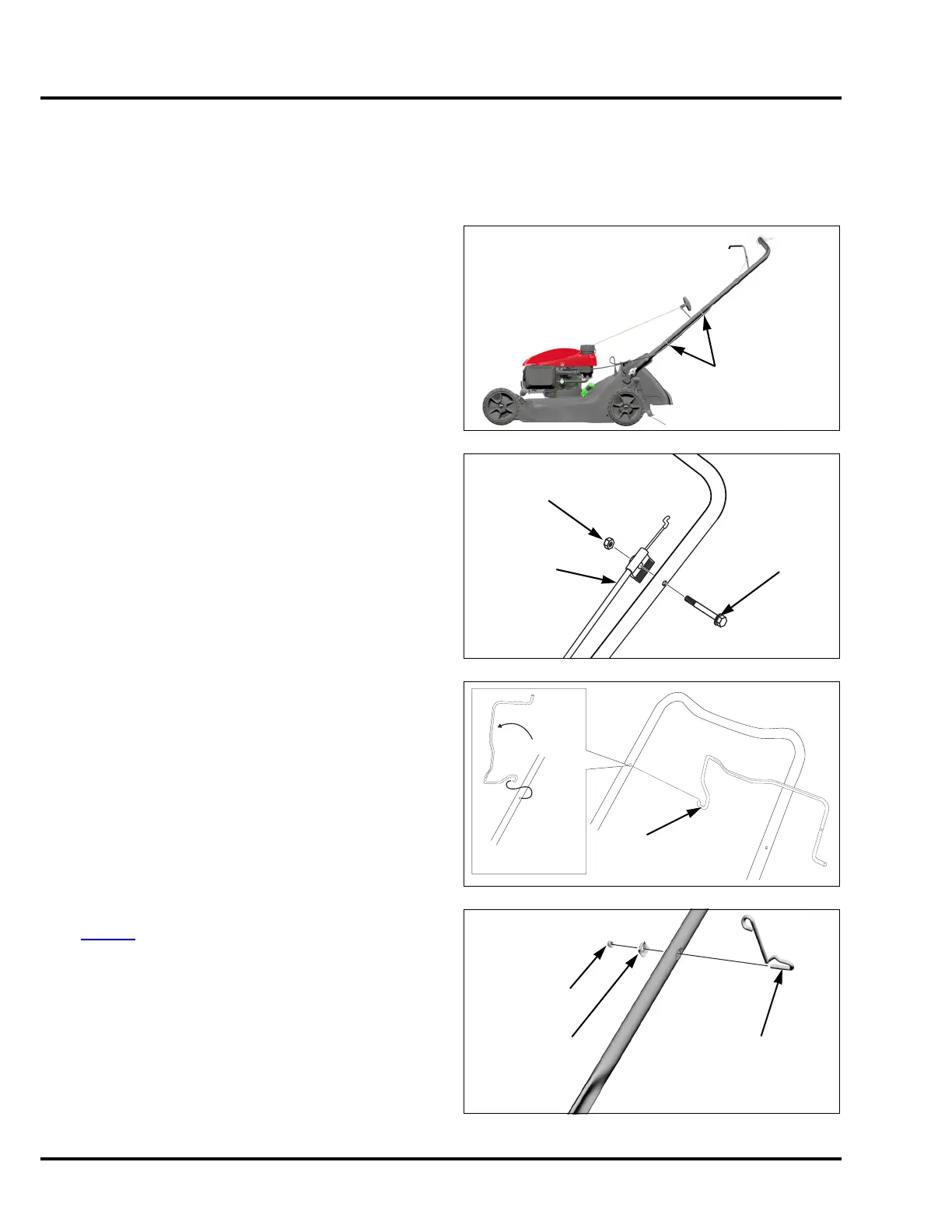

1. HANDLEBAR
REPLACEMENT
PKA TYPE
1. Cut the two cable ties securing the flywheel brake
cable to the handlebar.
2. Remove the 6 mm locking nut, 6 x 45 mm flange bolt,
and the flywheel brake cable assembly from the
handlebar assembly.
3. Remove the flywheel brake lever from the handlebar by
pulling inward on the left-hand side of the lever until the
end slides out of the handlebar. The right-hand side of
the lever has a hooked end. Rotate the lever over the
right-hand side of the handlebar to release the lever.
4. Remove the recoil starter rope from the rope guide
(P. 11-12
), and then remove the 6 mm locking nut,
frame washer, and rope guide from the handlebar.
CABLE TIE (2)
6x45mm
FLANGE BOLT
6mm
LOCKING NUT
FLYWHEEL
BRAKE
CABLE
FLYWHEEL
BRAKE
LEVER
FLYWHEEL
BRAKE
LEVER
ROPE GUIDE
FRAME
WASHER
6mm
LOCKING
NUT

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
