13-9

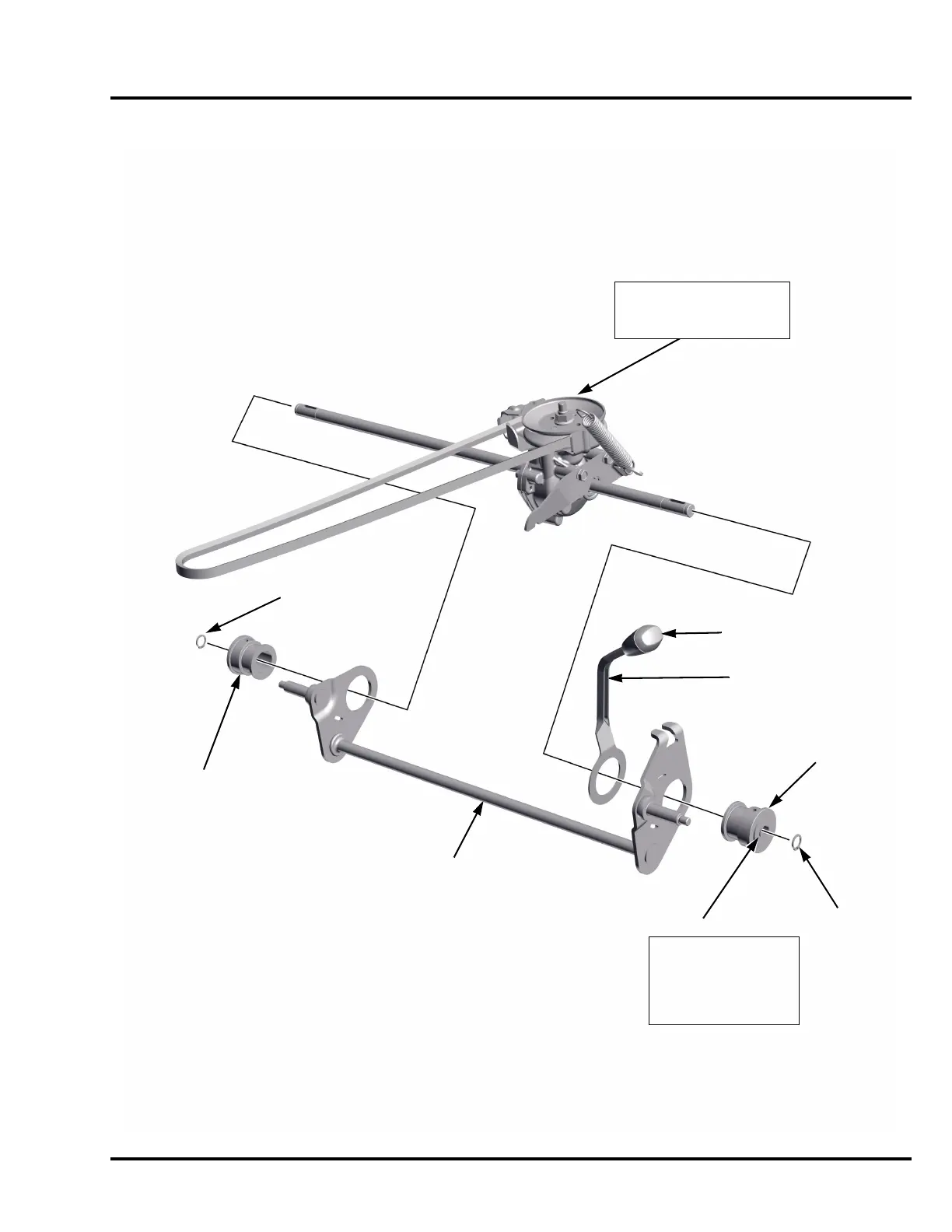

HRN216 TRANSMISSION/DRIVE BELT
AXLE SHAFT
TRANSMISSION ASSEMBLY
ADJUSTER GRIP
ADJUSTER
PLATE, REAR
AXLE SHAFT
DRIVESHAFT
BUSHING
DRIVESHAFT
BUSHING
CIRCLIP
CIRCLIP
REMOVAL: P. 1 3 - 1
DISASSEMBLY: P. 1 3 - 1 0
INSTALLATION: P. 13-3
AXLE BEARING (2)
INSPECTION:
Remove the bearing from
the bushing and check
that it spins without a
rough or gritty feeling.
Replace if necessary.
