CAMSHAFT/CRANKSHAFT/ PISTON/CYLINDER HRN216
3. CYLINDER REMOVAL/INSTALLATION
REMOVAL
Drain the engine oil (P. 3 - 6).
Remove the following:
– Crankcase cover (P. 1 0 - 2
)
– Carburetor (P. 8 - 2
)
– Muffler (P. 6 - 2
)
– Rocker arms and push rods (P. 10-7
)
REMOVAL:

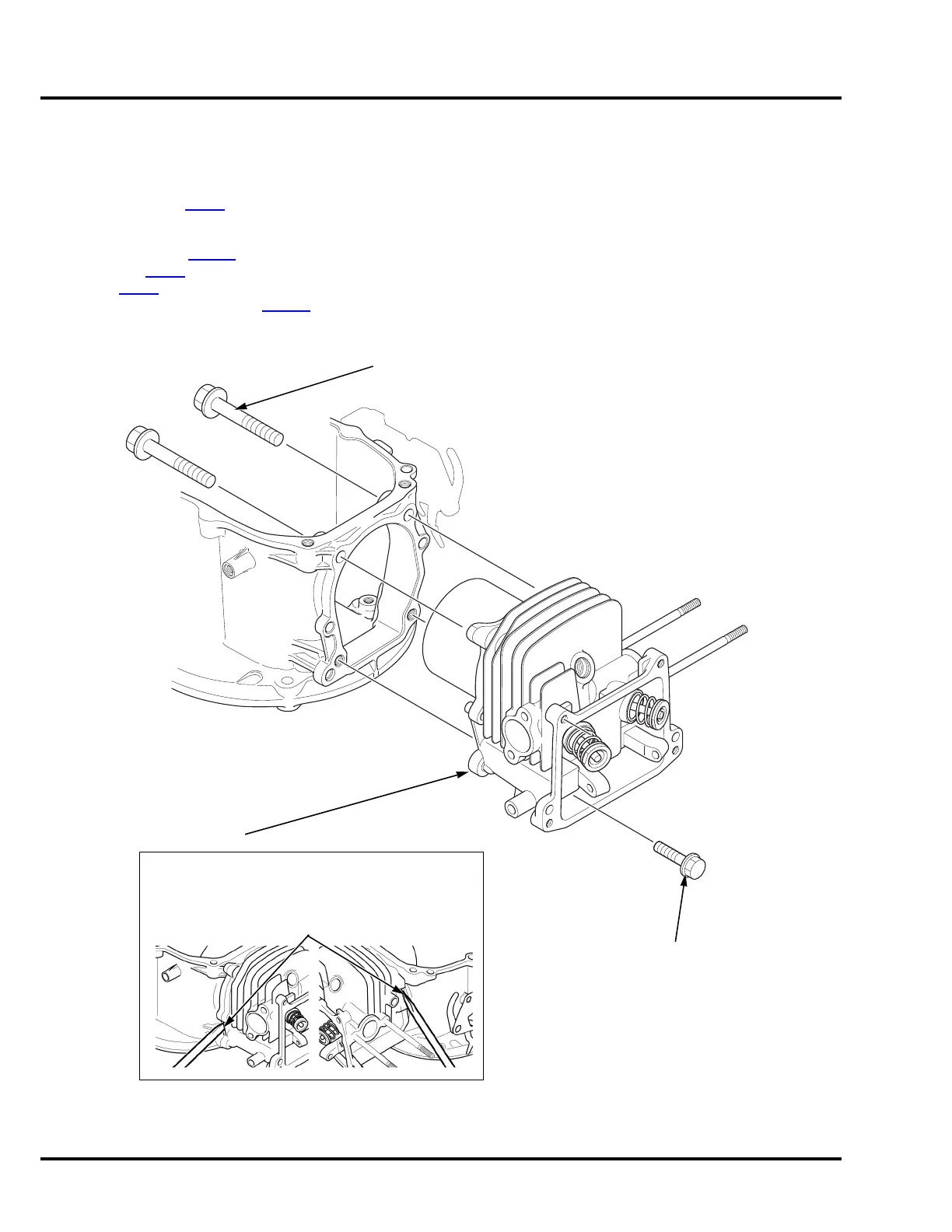

Insert a screwdriver or equivalent tool into the recesses
[1] as shown, and carefully pry to remove the cylinder
from the crankcase.
8 x 40 mm BOLT (2)
8 x 25 mm BOLT (2)
CYLINDER HEAD
[1]
(the piston and connecting rod
are shown removed for clarity)
