HANDLEBAR/ CABLES/CONTROLS HRN216
5. ROTO-STOP CONTROL
VYA TYPE ONLY
REMOVAL
2. Remove the 6 mm locking nut, 6 x 65 mm flange bolt, 6 mm plain washer, and the throttle lever assembly from the
handle pipe.
3. Remove the blade control lever from the handle pipe, then from the Roto-Stop control assembly.
4. Remove the 6 x 65 mm flange bolt and Roto-Stop control assembly.

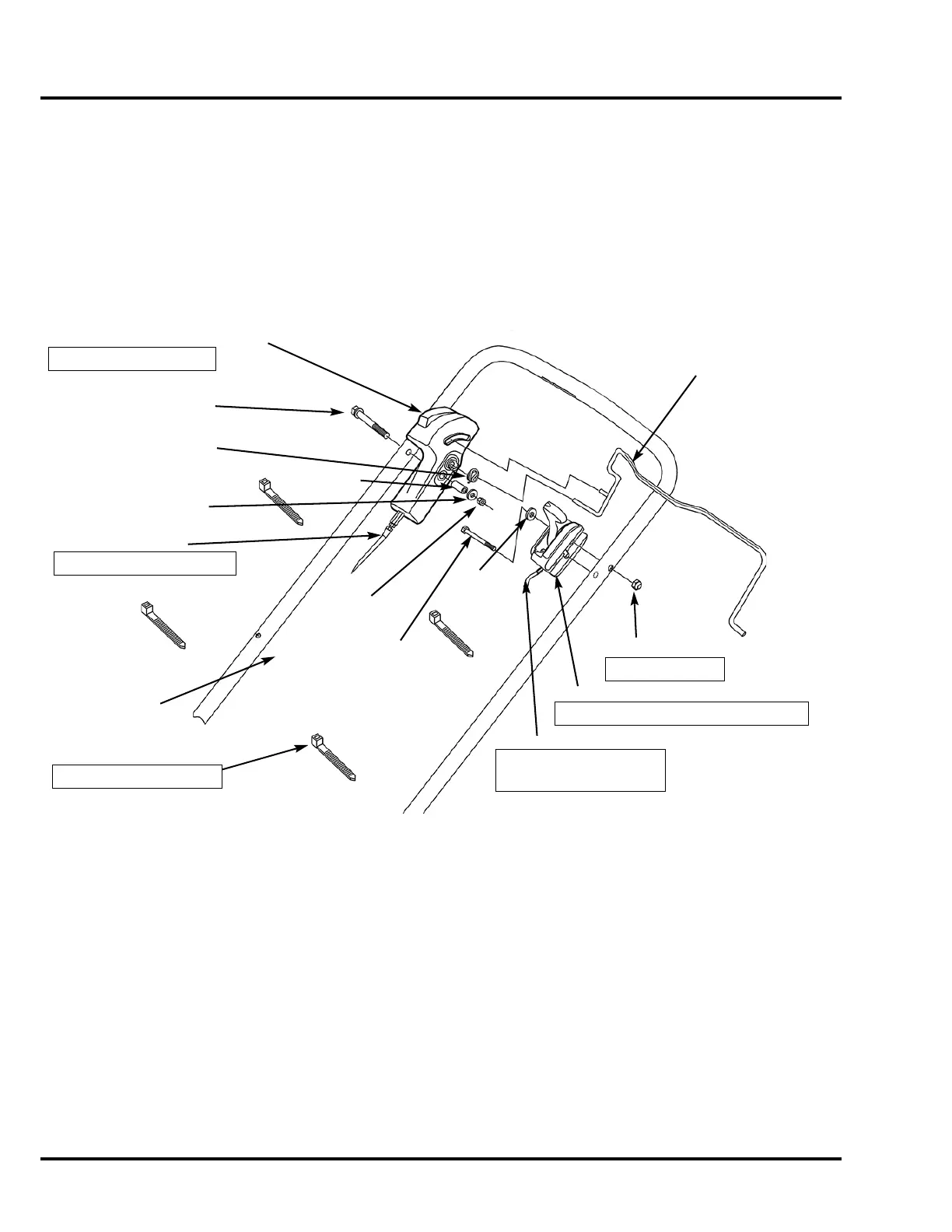

BLADE CONTROL
LEVER
ROTO-STOP CONTROL ASSEMBLY
REPLACEMENT: P. 11 -1 8
6 x 65 mm FLANGE BOLT
BLADE CONTROL LEVER
RETURN SPRING
ROTO-STOP CABLE
REPLACEMENT: P. 11 - 2 2
SPACER
6 mm PLAIN WASHER
6 x 65 mm
FLANGE
BOLT
6 mm
PLAIN
WASHER
6 mm
LOCK-NUT
THROTTLE LEVER ASSEMBLY
DISASSEMBLY/REASSEMBLY: P. 11 - 26
THROTTLE CABLE
REPLACEMENT: P. 11- 2 6
ADJUSTMENT: P. 3-14
6 mm LOCKING NUT
4.9 N•m (43 in•lb)
CABLE TIE (5)
INSTALLATION: P. 2-21
6 mm LOCKING
NUT
