9-10
IGNITION COIL/FLYWHEEL HRN216
INSTALLATION
Make sure the flywheel taper is free of dirt, oil, grease and
other foreign material before installation.
Also, make sure there is no foreign material on the magnets.
1. Be sure the woodruff key is set in the keyway properly.
2. Install the flywheel.
3. Apply engine oil to the flywheel nut threads.

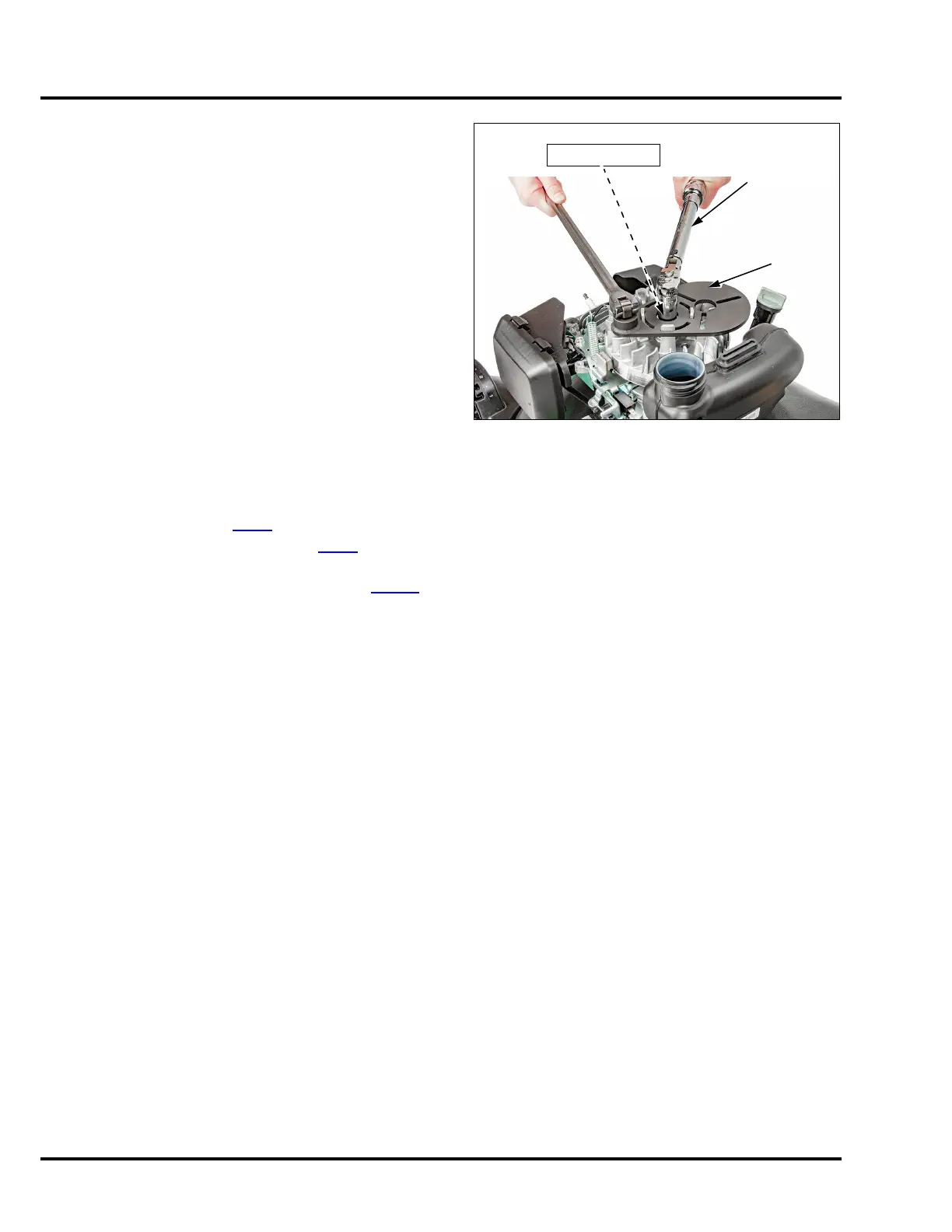

4. Holding the flywheel with the flywheel holder special tool
or a commercially available strap wrench, tighten the
14 mm special nut to the specified torque.
TOOLS:
FLYWHEEL HOLDER 07APB-Z28A101
TORQUE:
PKA/VKA/VYA types: 55 N•m (41 ft-lb)
VYA type: 75 N•m (55 ft-lb)
5. PKA/VKA/VLA types only:
Remove the strap or equivalent material used to hold the flywheel brake lever.
6. Install the ignition coil (P. 9 -2
).
7. Install the fan cover and top cover (P. 7 -3
).
8. PKA/VKA/VLA types only:
Check the operation of the flywheel brake (P. 3-12
).
SPECIAL NUT, 14 mm
FLYWHEEL
HOLDER
P/N 07APB-Z28A101
55 N•m (41 ft-lb)
TORQUE
WRENCH
(commercially
available)
