Honda HRN216VYA User Manual

12-17
HRN216 VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS

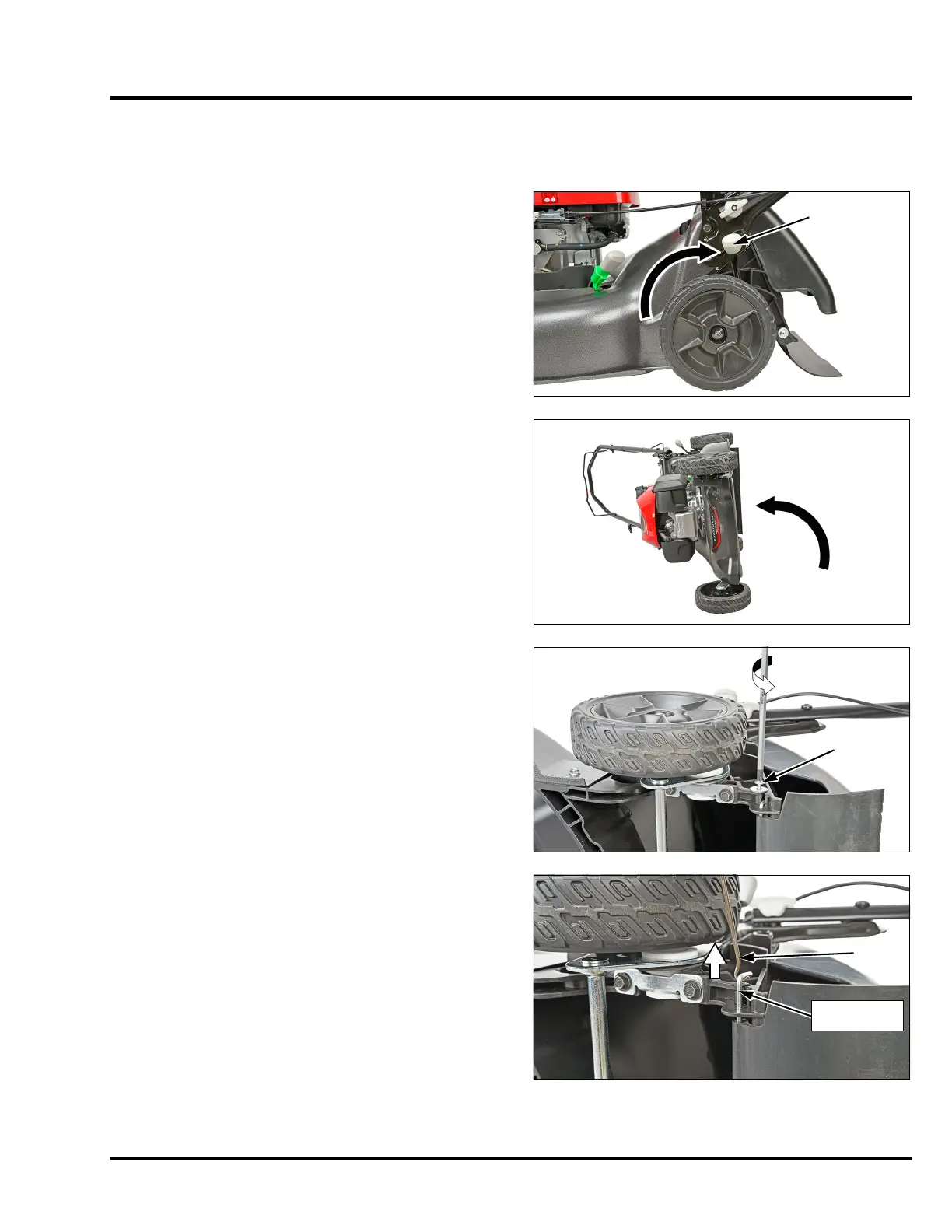

5. REAR SHIELD
REMOVAL
1. Move the rear wheel height adjuster to the lowest deck
height (position #1).
2. Tip the mower on the right-hand side so that the air
cleaner is facing up.
3. Remove the Phillips-head screw and plain washer from
the rear housing.
4. Use a pick tool to pull the rear shield shaft out of the
slot in the rear housing.
5. Pull the shaft completely out of the rear housing and
rear shield.
REAR HEIGHT
ADJUSTER
SCREW/
WASHER
PICK
TOOL
REAR SHIELD
SHAFT
SERVICE BULLETIN #110

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
