12-6
VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRN216

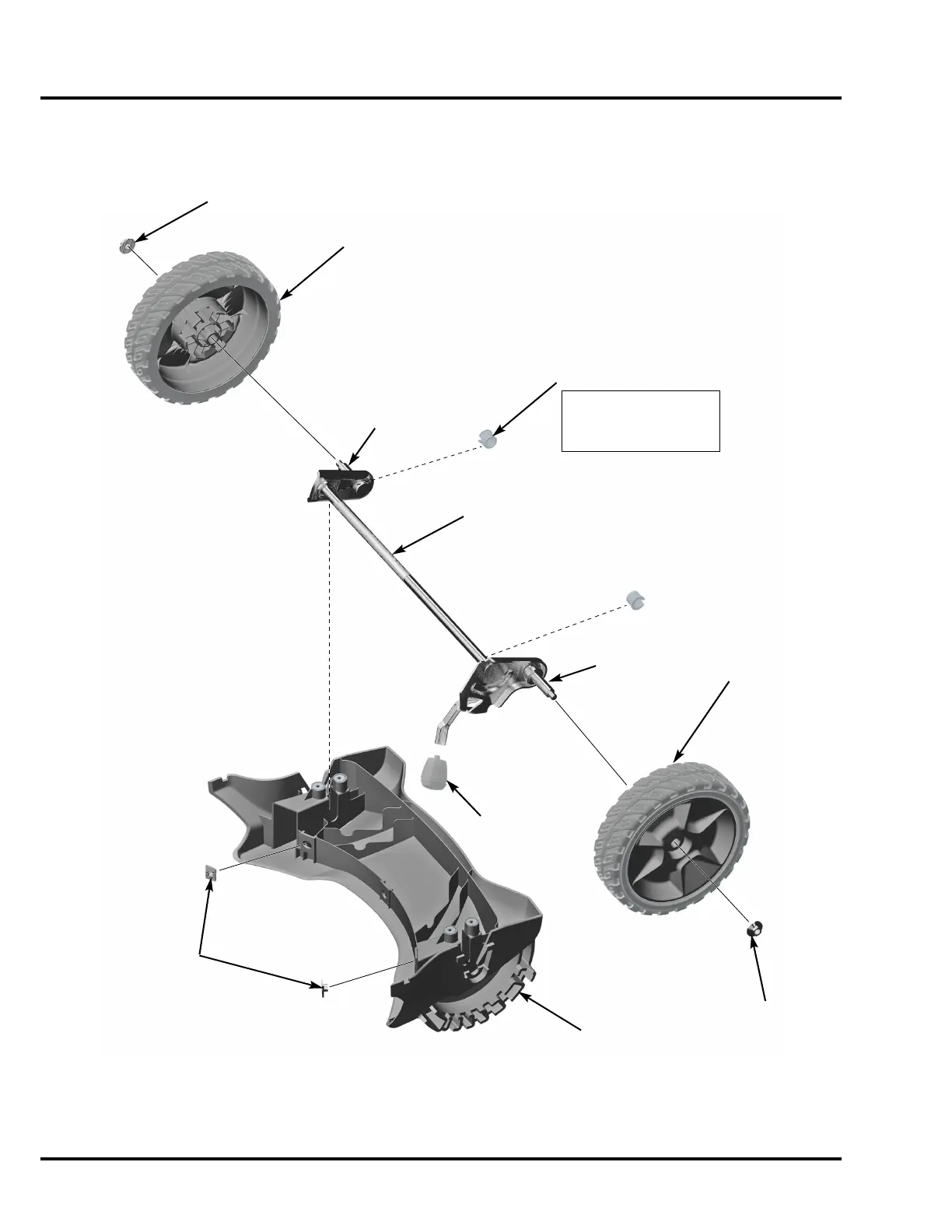

2. FRONT COVER
(Shown from underneath for clarity)
AXLE NUT
FRONT WHEEL
AXLE SPACER
The larger lip side should
face toward the wheel.
Apply grease to the inside
of both axle spacers.
FRONT AXLE
ASSEMBLY
CUTTING HEIGHT
ADJUSTMENT
KNOB
6x7mm
SPECIAL NUT
(2)
FRONT COVER
ASSEMBLY
FRONT WHEEL
AXLE NUT
