4-4

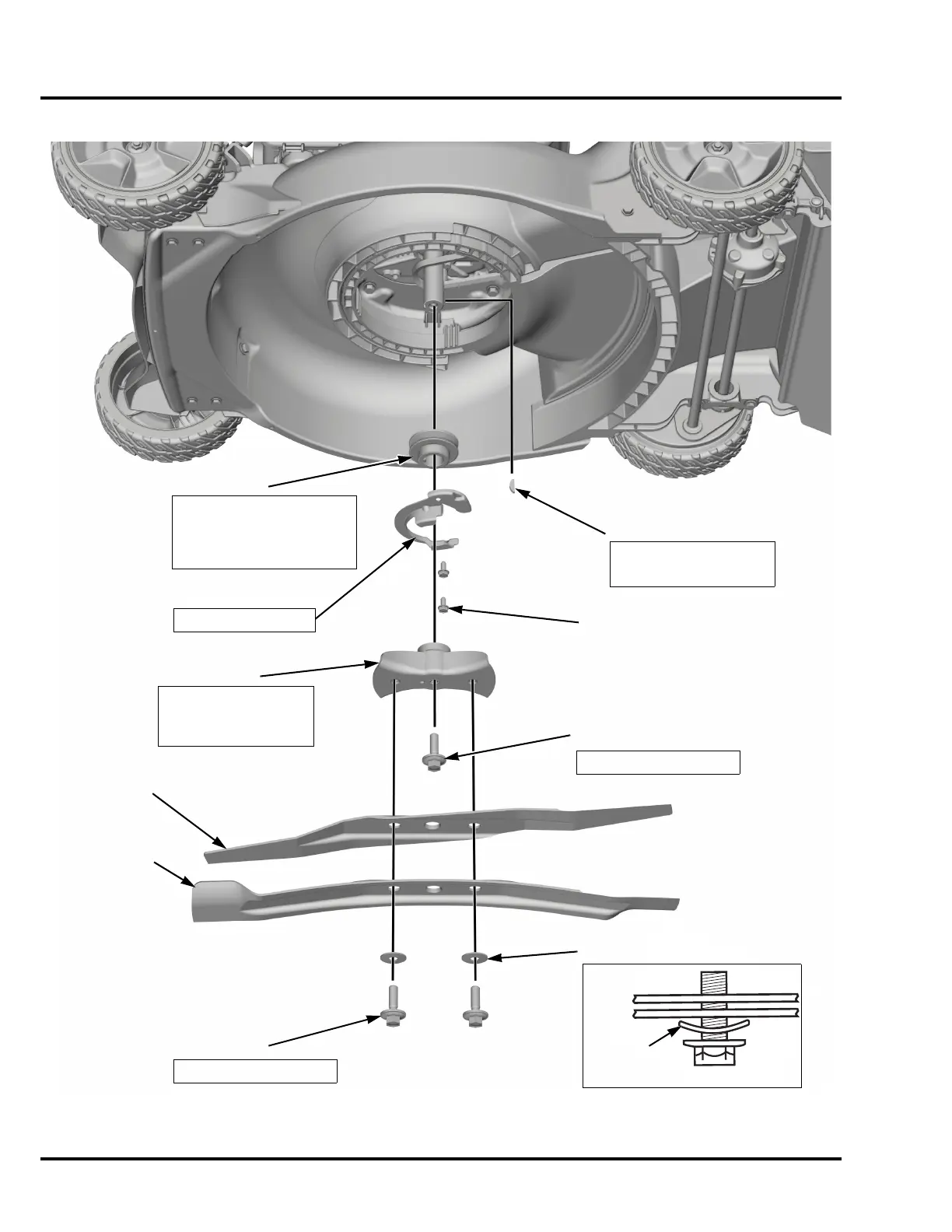

BLADE HOLDER/ROTO-STOP® HRN216
VKA/VLA TYPES
BLADE HOLDER
10 x 25 mm
SPECIAL BOLT
LOWER BLADE
UPPER BLADE
SPECIAL WASHER
Install the
washer in the
direction shown.
TORQUE: 54 N•m (40 ft-lb)
Align the slot in the
blade holder with the
Woodruff key in the
crankshaft.
WOODRUFF KEY
Install the Woodruff key into
the slot closest to the end of
the crankshaft.
3/8-24 x 1 in
SPECIAL BOLT
DRIVE PULLEY
“N” code marking identifies this
drive pulley is for an
HRN216VKA or VLA model.
Visually verify this code is
correct before installing.
6 x 14 mm
FLANGE BOLT (2)
BELT GUIDE
ADJUSTMENT: P. 2-19
TORQUE: 54 N•m (40 ft-lb)

Honda HRN216VYA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Deck Material	Steel
Starting System	Recoil
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge Capability	Yes
Cutting Height Adjustment	6 positions
Drive System	Variable Speed
