8-14
FUEL SYSTEM HRN216

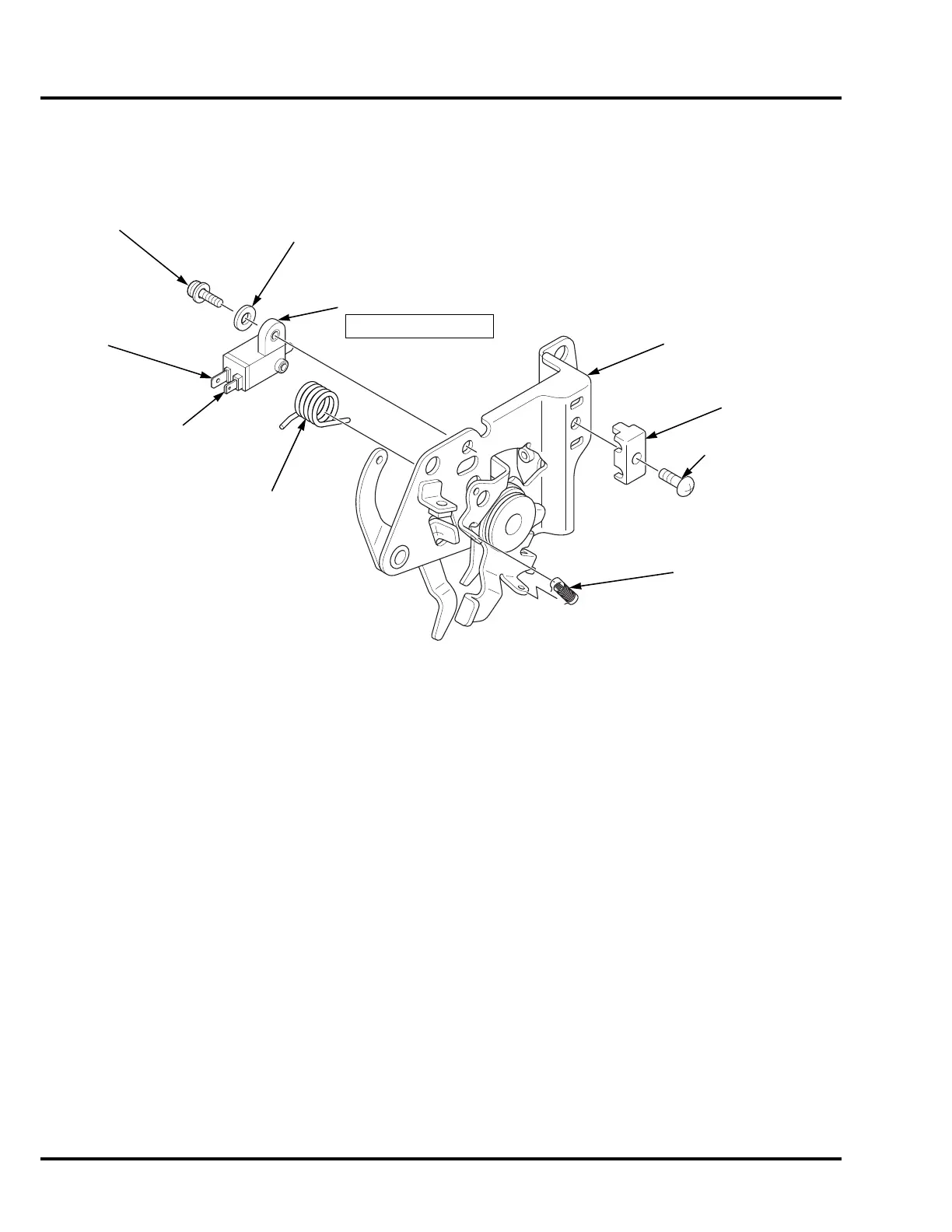

DISASSEMBLY/REASSEMBLY
SCREW (4 x 12 mm)
WASHER (4 mm)
ENGINE STOP SWITCH
CABLE HOLDER
SCREW (5 x 16 mm)
LEVER SPRING
CONTROL LEVER RETURN SPRING
CONTROL BASE
WIDE TERMINAL
(to stop switch wire)
NARROW TERMINAL
(not used)
INSPECTION: P. 9- 6
