Honda XR80R Service Manual

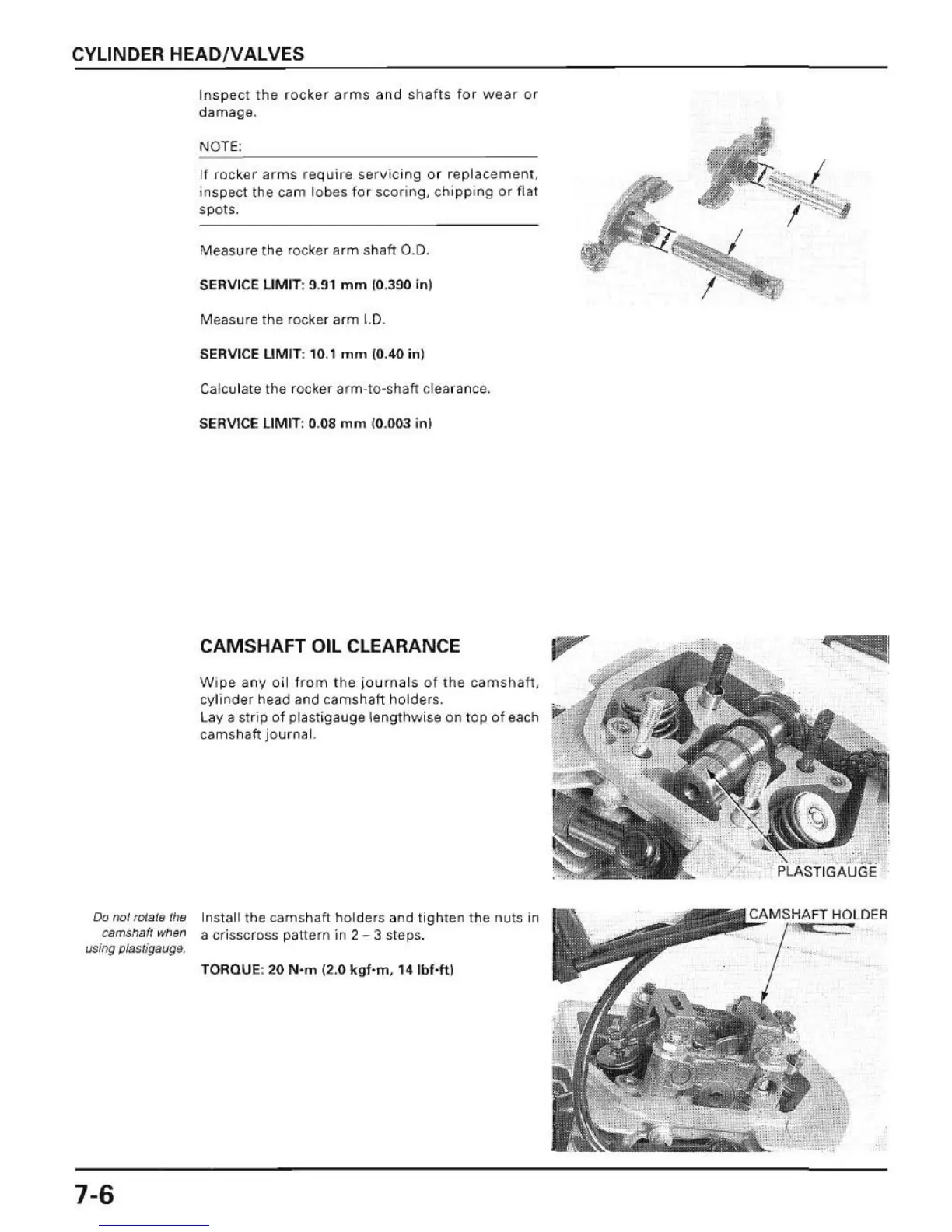

CYLINDER HEAD/VALVES
Ins pect the r ocker arms and shafts for wear or
damage.
N OTE:
If rocker arms requi re servicing or replacement.
inspect the cam lo bes for scor ing. chip ping or flal
spots.
Measu re the rocker arm shaft 0.0.
SE RVtCE LIMIT: 9. 91 mm 10 .390 Inl
Measure the rocker arm 1. 0 .
SERVICE LIMIT: 10.1 mm (0.40 in )
Calcu late the rocker arm -to-shaft clearan ce.
SERVICE LI MIT : 0.08 mm (0.003 in)
CAMSHAFT OIL CLEARANCE
W ,pe any oi l from the journals of the camshaft.
cylinder head and camshaft holders.
lay a strip of plasTigauge leng th w ise on top of each
camshaft j ou rnal.
Do 001 fOlare rhe I nS l all the camshaft ho lders and ti ghten the nut s in
camsflalr wtletl a crisscross pattern in 2 _ 3 steps.
using pllls#l)aug e.
TOROU E: 20 N-m (2.0 kgf-m. tot Ib f-ft l
7-6
•
4

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
