Honda XR80R Service Manual

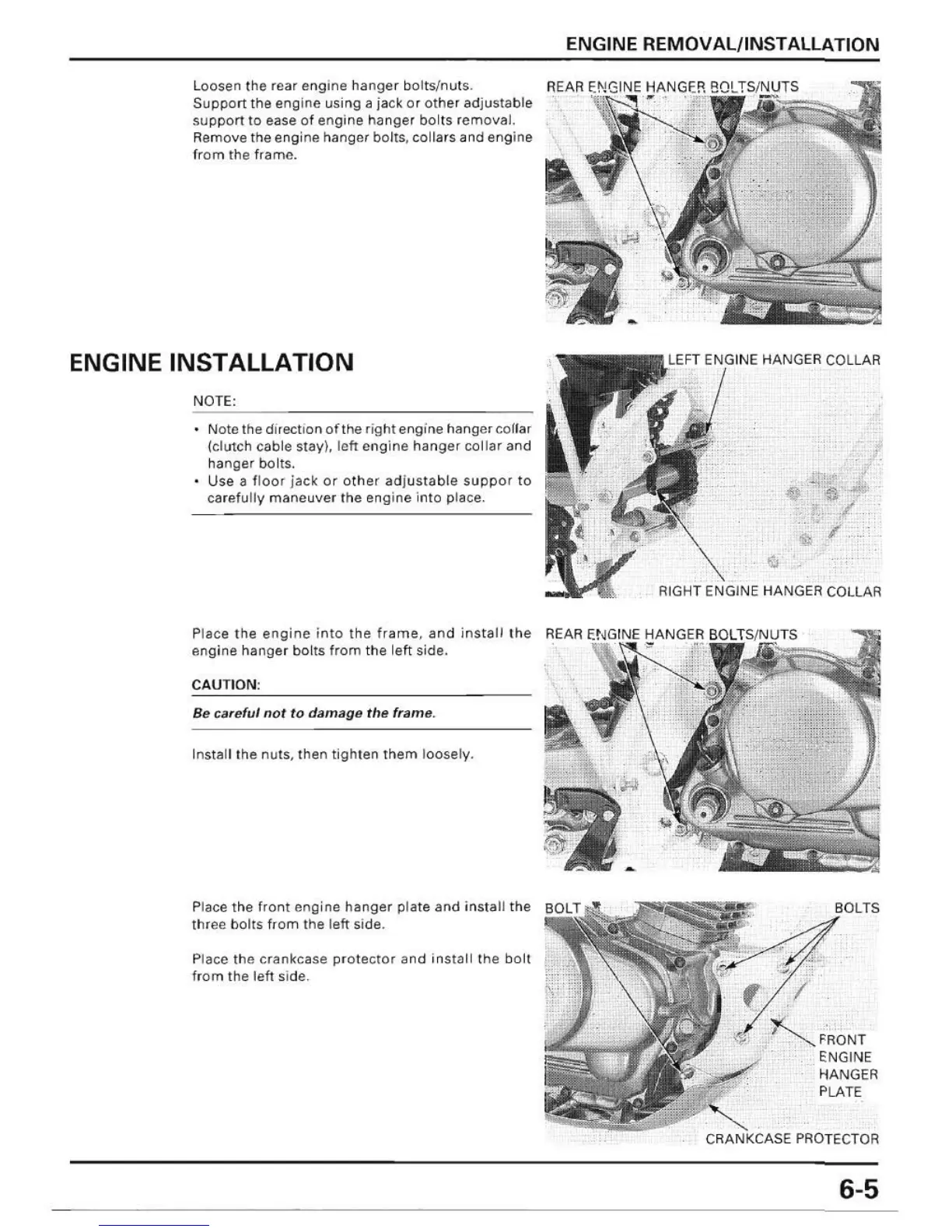

ENGINE REMOVAL/INSTALLATION
Loosen the re ar e ng ine hanger bolts/nuts_
Support the eng ine uSi ng a jack or othe r adjustable
~upport to ease of engine hanger bo lts remo ... a!.
Remove the engine hanger bolts. col la rs and engine
from the frame.
ENGINE INSTALLATION
NOTE:
Noto the direction ofthe ri ght engi ne hanger coftar
(clutch cable stay). left
engine hanger collar and
hanger bolts.
Use
a fl oor jack o r other adjustable sup po r to
ca ref ully maneuve r the engine into place.
Place
the engine into the f rame. and i nstall th e REAR
ilngine hanger bolts from th e l eft side.
CAUTION:
Be caref ul no t to damage t he f,ame.
Install the nuts, then t igh ten them loosely.
Place
the front engine hanger plate and install Ihe
Ihrfle holts from the left si de .
Place the crankcase pr otector and instal l the bolt
from the left si de_
Efl· "',G 'NE HANGER COLLAR
EN'G"" HANGER COLLAR
~F ' RONT
ENGINE
HAN GER
PLATE
PROTECTOR
6-5

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
