Honda XR80R Service Manual

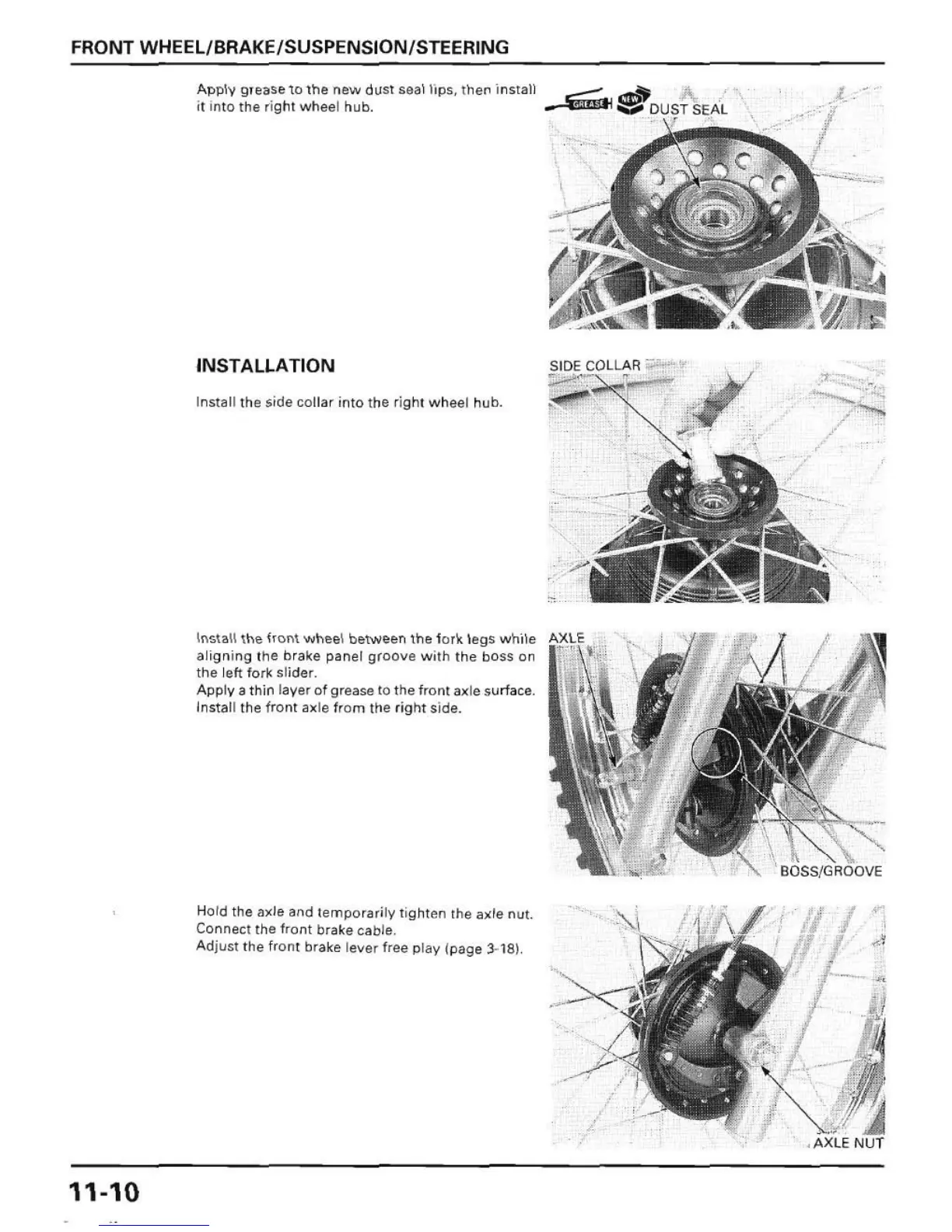

FRONT WHEEL/ BRAKE /SUSPENSION/STEERING
11-10
ApplV gTease 10 the new dllst seal lip s, then 'Install
it into the right wh eel hub.
INSTALLATION
Install the side collar into the ri ght wh eel hub.
Insta ll t he Ir om wh eel bet ween the 1or'K legs wh ile
align in g the brake panel gr oo ve wi th the boss on
the
left fork slide r.
App lV a thin la ye r of grease to the front axle suriace.
Install the fro nt axle from the right side.
Hold the
axle a nd te mp orarily ti ghten the axle nut.
Connect the
front brake cable,
Ad jusl l he front brake lev er free p la v (page ~ 18 1.

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
